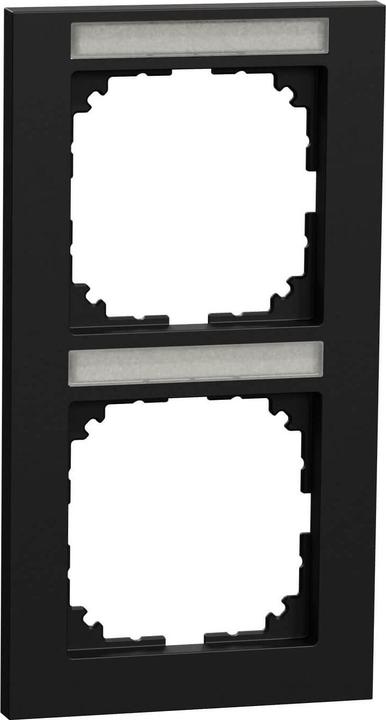

Merten Frame 2fold black matte

Manufacturer: Merten
Description: Frame 2fold black matte
Label carrier type: MEG4022-3603
Number of units: 2
Mounting direction: vertical
Number of units horizontal: 1
Number of units vertical: 2
Number of switch inserts: 2
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: no
Suitable for built-in installation: no
Text field/labeling area: yes
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: painted
Surface finish: matte
Color: black
RAL number (similar): 9005
Transparent: no
With hinged cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 83 mm
Height: 154 mm
Depth: 10.1 mm
Drilling diameter (opening): 68 mm

The frame is made from recycled material consisting of industrial waste. The color is black, similar to RAL9005, with a matte finish due to the painting. The frame is designed for IP20 use in flush-mounted installations. The material used reduces waste and is part of Schneider Electric's green initiative. For vertical mounting. Material: thermoplastic. Color: black matte.
