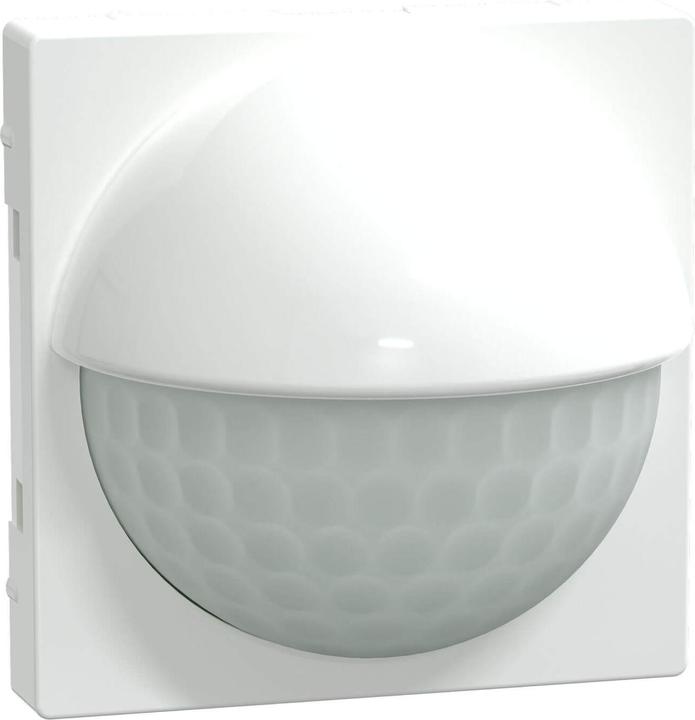

For System M. Presence detector for indoor use with anti-creep protection. The sensor module detects moving heat sources (e.g., people) within an adjustable detection range and initiates a stair lighting duration. The sensor module features a light sensor with an adjustable brightness threshold, ensuring that the lighting is only activated below a certain brightness level. Thanks to the presence function, the sensor module can turn off the lighting even when a person is present if there is sufficient natural light.

Functions: Brightness-dependent stair lighting function, electronic switching unit, relay switching unit, universal dimmer unit, control unit 1-10 V, DALI control unit, brightness-dependent stair lighting function with channel 1, brightness-independent stair lighting function with channel 2, electronic switching unit, double, relay switching unit, double, universal dimmer unit, double.

Detection range 180 degrees. Number of levels 6. Number of zones 46. Recommended mounting height 2.2 m. Range 8 m to the right/left, 12 m forward. Sensitivity continuously adjustable. Light sensor continuously adjustable from approximately 10 to 1000 Lux. Time continuously adjustable from approximately 10 s to 30 min.

To be completed with central unit MEG5190-0000, electronic switching unit MEG5151-0000, electronic switching unit, double MEG5152-0000, relay switching unit MEG5161-0000, relay switching unit, double MEG5162-0000, universal dimmer unit MEG5171-0000, universal dimmer unit, double MEG5172-0000, control unit 1-10 V MEG5180-0000, DALI control unit MEG5185-0000.

Material: Brilliant thermoplastic, antibacterial. Smooth and self-disinfecting surface with antibacterial properties. Color similar to RAL 9016, active white glossy.
