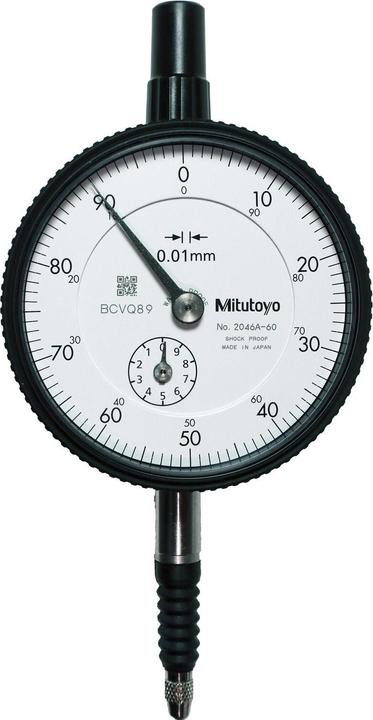

Mitutoyo Dial gauge, measuring range / housing-⌀: 10/58B mm
1 cmProduct details
Carbide-tipped, outer ring diameter 57 mm. 1 full rotation of the pointer = 1 mm. The locking screw and lifting lever (optional) can be installed tool-free on either the right or left side. The design without through holes and a secure adhesion between the outer ring and the glass, along with the use of an O-ring, prevent liquids from penetrating. Delivery includes factory inspection certificate. Type: 2046A. Measuring range (mm): 10. Brand: Mitutoyo. Scale: 0-100. Reading (mm): 0.01. Quantity (pcs): 1.
Item number | 31374128 |
Colour | Black |
Exact colour description | Black |
Material group | Metal |
Material | Hard metal |
Measuring unit | mm |
measurement length | 1 cm |
reading | 0.01 mm |
gradient | 1 mm |
Calibrated according to | Factory standard (with certificate) |
CO₂-Emission | |
Climate contribution |
Length | 5.80 cm |
Width | 58 mm |
Length | 13.10 cm |
Width | 8.50 cm |
Height | 6.50 cm |
Weight | 196 g |
