These multi-point locks feature a handle, panic fitting, or push bar on the inside. There is also a handle on the outside. In the unlocked state, the door can be opened from both sides. When locked, the door cannot be opened from the outside, but can always be opened from the inside using the handle, panic fitting, or push bar (panic function). The three long bolts are retracted, and simultaneously the three tilting bolts become soft. The square (nut) is divided in panic function B. This panic function is suitable for doors that need to be opened from the outside occasionally (day operation). Day operation can be activated via the cylinder with a key movement in the opening direction until it reaches the stop, at which point the handle on the outside is engaged.

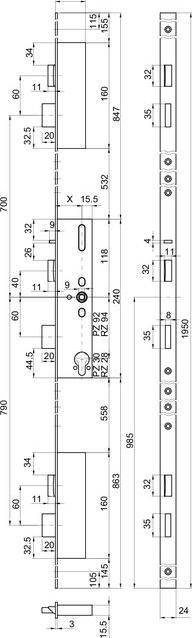

6-point locking system, with changeover, with tilting bolt and long bolt, bolt projection 20 mm, single turn, faceplate, latch, bolt, and nut made of stainless steel, without strike plates.

Suitable for knob and free-running cylinders.
