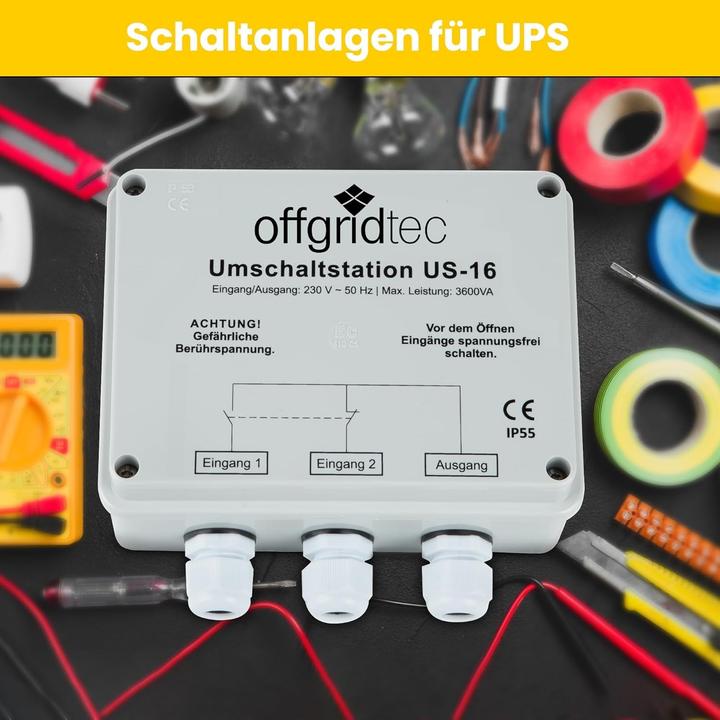

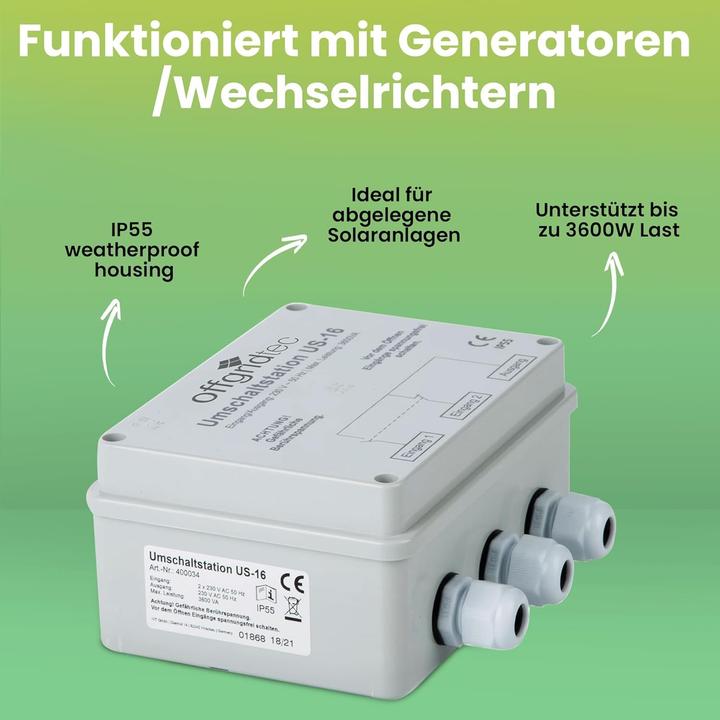

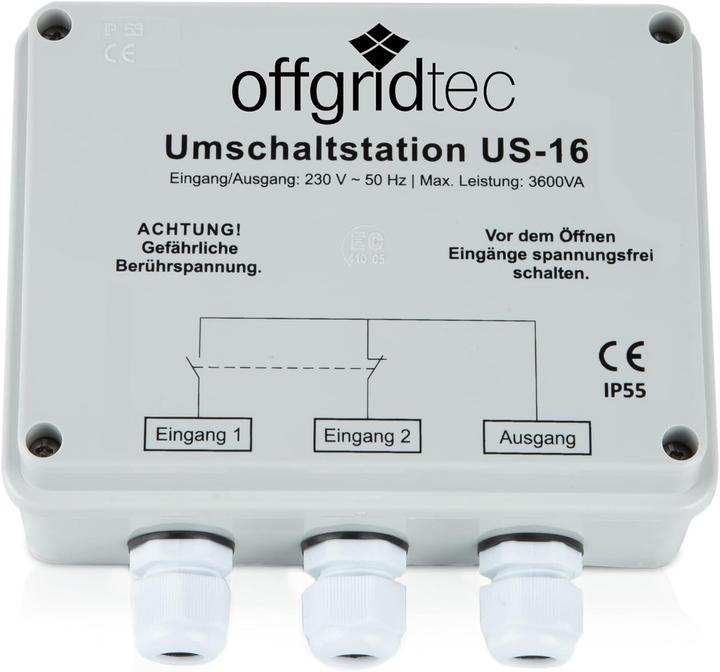

Offgridtec switching stations allow you to operate 230V devices from two different power sources without interruptions. Typically, these sources are a voltage converter or the public power grid.

With the priority switching feature, you can determine which power source should be used preferentially. If this power source fails, it automatically switches to the backup power source.

The use of high-quality relays ensures a particularly precise switching threshold, and the voltage converter is also protected against feedback from external voltage.

Recommended applications:

• Solar off-grid systems
• Service and utility vehicles
• Motorhomes and caravans
• Sailboats and other watercraft

Technical specifications:

• Input voltage: 230VAC, 50/60Hz
• Maximum input current: 16A
• Output voltage: 230VAC, 50/60Hz
• Maximum power: 3600VA
• Switching time: <500ms
• Fuse: F 16A / 250V
• Protection: Overload, Short circuit
• Housing: Plastic
• Protection class: IP55
• Inputs: Screw terminals, connection terminal

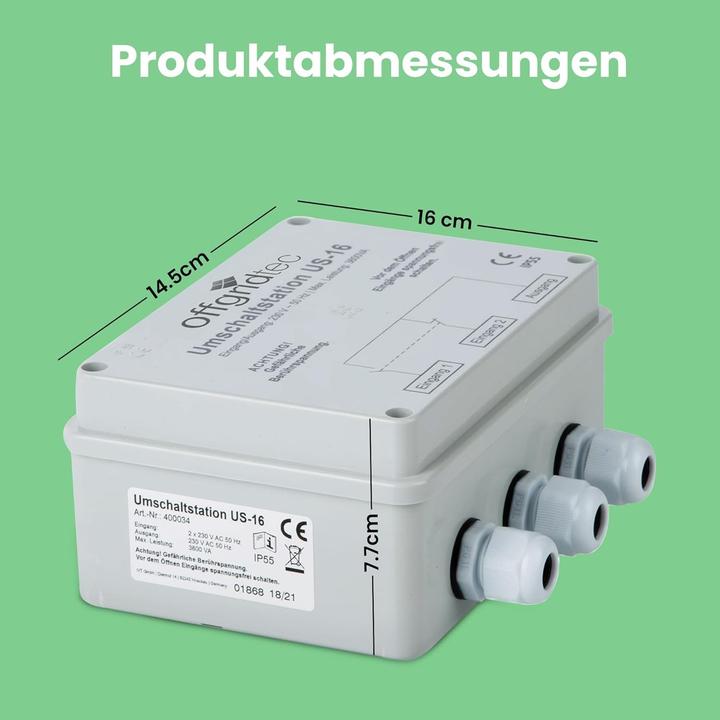

• Dimensions (LxWxH): 160 x 145 x 77mm
• Weight: 450g

Application example 1 – Grid priority switching:

• The 230 V AC grid is connected to input AC2 (higher priority).
• This means the battery is preserved, and the inverter is simultaneously protected from external voltage.
• Only when AC2 loses power does input AC1 switch the power supply through the battery and inverter.

Application example 2 – Inverter priority switching:

• The inverter is connected to input AC2 (higher priority).
• This means that power is primarily drawn from the inverter from the battery (e.g., when using solar off-grid systems).
• Only when the inverter shuts down due to deep discharge protection does the 230 V AC grid connect through input AC1.

Scope of delivery:

• 1x switching station
• PE connection terminal
• Operating manual in German, English, French, Dutch.
