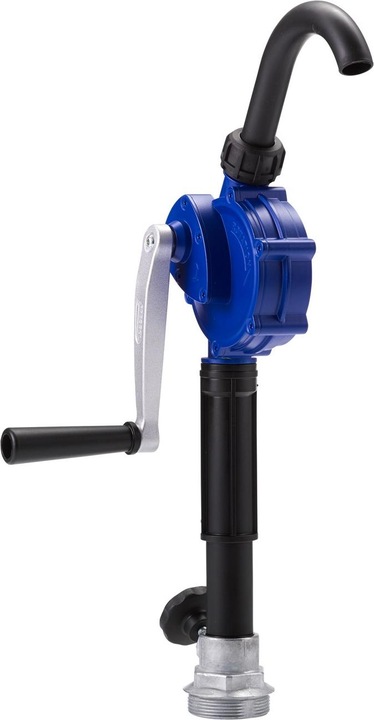

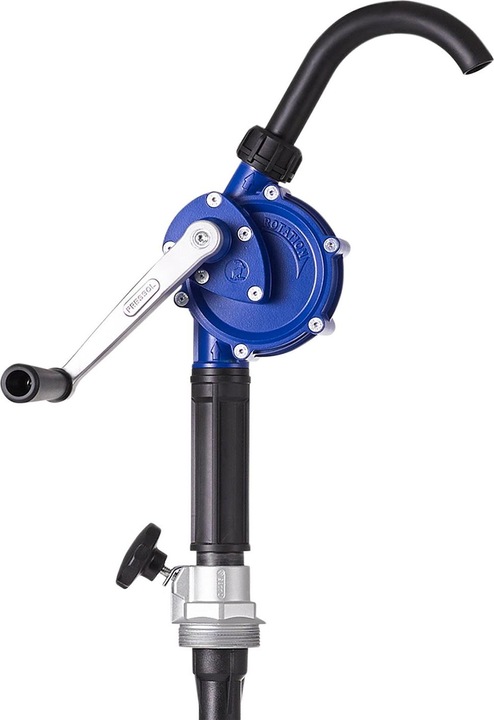

Crank-operated hand pump with a flow rate of 15 l/min, equipped with a drainage elbow, suitable for oil and diesel. The smooth operation of the hand crank ensures easy handling, and the height is adjustable via a drum screw connection. It is designed for oils up to SAE 90, self-lubricating, non-aggressive media, heating oil, diesel, and kerosene.

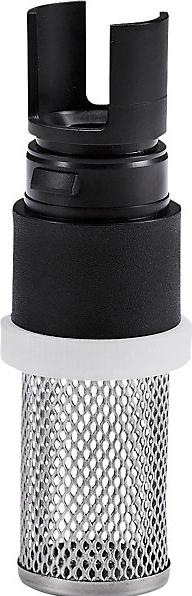

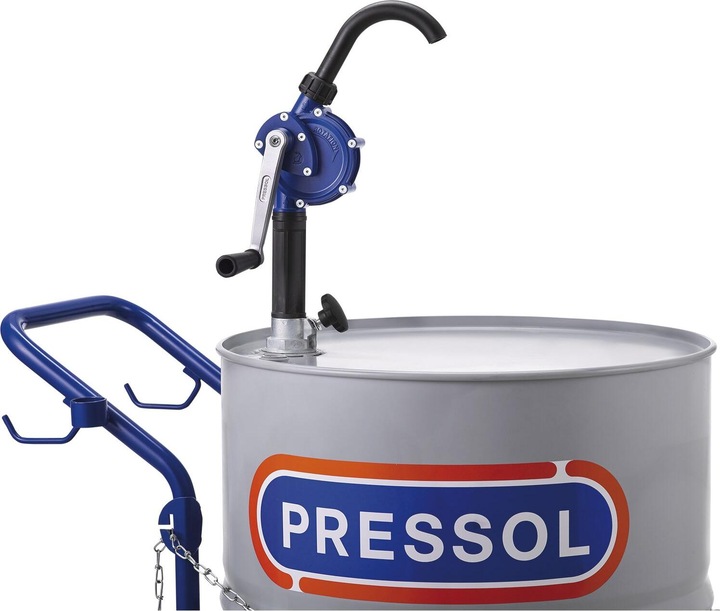

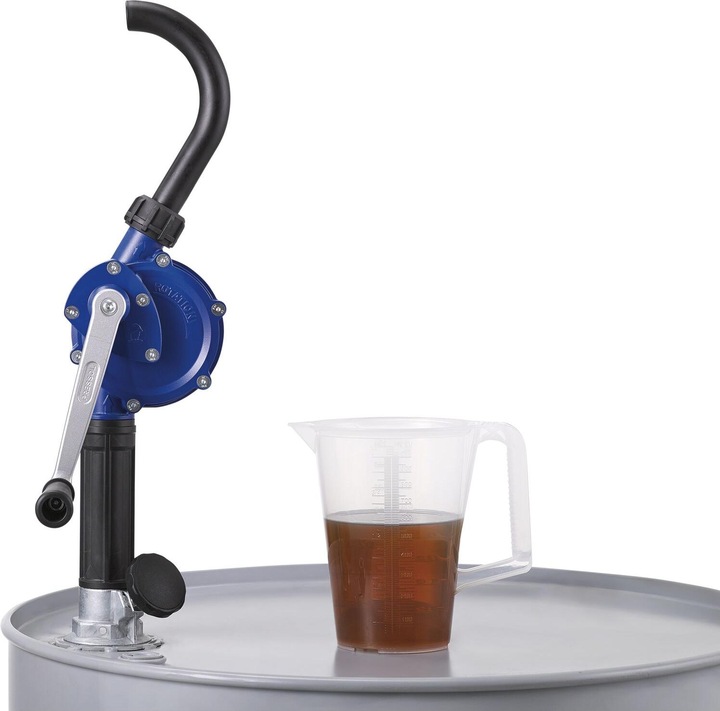

This rotary vane pump includes a steel drainage elbow and is compatible with 60, 200, and 220-liter containers. It is ideal for filling measuring containers, measuring cups, storage buckets, and canisters. The flow rate is 15 l/min or 0.25 l/revolution, with a steel drainage elbow. The suction pipe length is 980 mm and features a one-piece suction pipe with a suction filter. The drum screw connection measures G 2'', and the height is adjustable via the drum screw connection.

The materials for the parts that come into contact with media include:

• Pump housing: GG 25 cast iron
• Seals: NBR
• Suction pipe: Steel, galvanized
• Outlet: Steel, galvanized

Please note: If the media compatibility is unclear, please inquire in advance about the suitability of the pumps.
