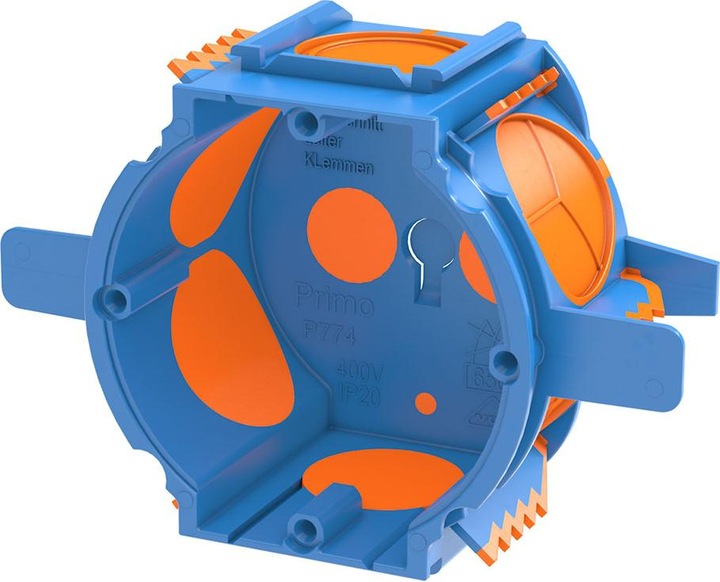

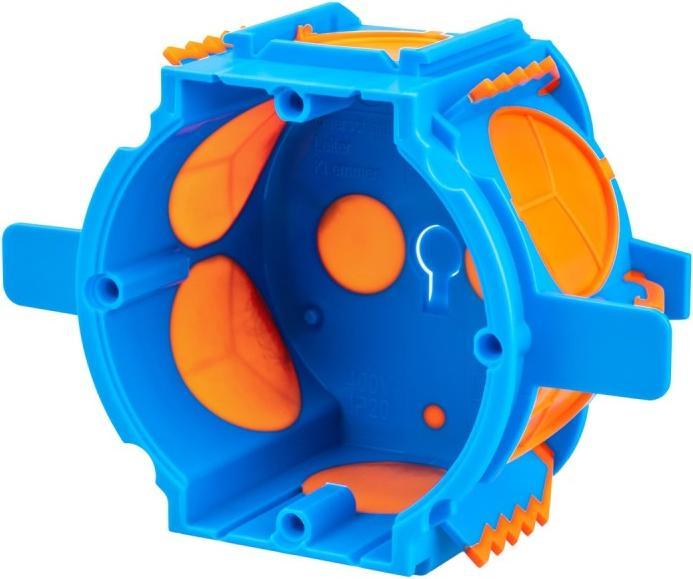

Primo Thermodose P774

Manufacturer: Primo
Designation: Thermodose THD-45
Type: P774
Installation type: Flush-mounted
Shape: Round
Design: Device connection box
Version: Single
With rotating ring: No
Couplable: Yes
Filling: None
Diameter: 60 mm
Depth: 46 mm
Inner depth: 44 mm
For number of device inserts: 1
Device fastening: Screws or expansion
With screws: No
Housing entry via breakout opening: Yes
Housing entry via sealing membrane: Yes
Housing entry via pipe fitting: No
Housing entry via stepped membrane: No
For pipe diameter: 20/25 mm
Suitable for cable diameter: 1..13 mm
Pipe locking: No
Rear entry: Yes
Number of entries: 8
Material: Plastic
Halogen-free: Yes
Surface protection: Untreated
Color: Blue
Protection class (IP): IP30
Protection class (NEMA): Other
Cover version: None
Transparent cover: No
Cover fastening: Other
Function maintenance: None
With shielding: No
Air-tight: Yes
Max. conductor cross-section: 2.5 mm²
Number of terminals: 6
Terminal position fixed: No
Light hook fastening: No
Fitting: None
With nail tabs: No
Special application: Sound insulation

Primo Thermodose P774: Additional details
The Primo Thermodose THD-45, with a diameter of 60 mm, eliminates the need for cumbersome plastering like traditional flush-mounted boxes. The Thermodose THD-45 can be easily and quickly installed in just a few seconds using the specially developed thermal foam. The depth of the Thermodose THD-45 has been reduced from 68 mm to 46 mm compared to the Thermodose THD-70, making it ideal for narrow walls made of solid plasterboard. Thanks to the SCS connection technology, multiple Thermodoses can be lined up and securely connected - perfect for quick wiring or the installation of pre-wired devices. To quickly locate the box after plastering, we recommend using the universal plaster cover to protect the interior of the box.
