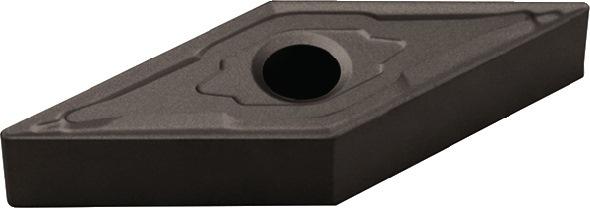

Indexable insert VNMG 160404-M PMK30 for medium machining. Further technical information:

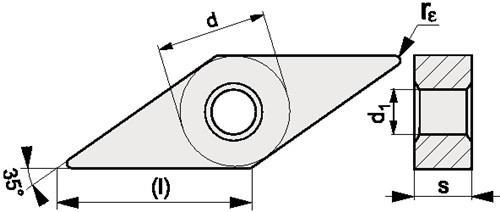

• Diameter: 9.525 mm
• Application range: Medium machining
• Radius: 0.4 mm
• Diameter 1: 3.81 mm
• Thickness: 4.76 mm
• Length: 16.6 mm
• Maximum feed: 0.2 mm/rev in steel, 0.2 mm/rev in stainless steel, 0.2 mm/rev in cast iron
• Maximum cutting speed: 165 m/min in steel, 95 m/min in stainless steel, 155 m/min in cast iron
• Minimum cutting speed: 140 m/min in steel, 80 m/min in stainless steel, 130 m/min in cast iron
• Minimum cutting depth: 0.8 mm in steel, 0.8 mm in stainless steel, 0.8 mm in cast iron
• Maximum cutting depth: 3 mm in steel, 2.3 mm in stainless steel, 3 mm in cast iron
• Minimum feed: 0.15 mm/rev in steel, 0.15 mm/rev in stainless steel, 0.15 mm/rev in cast iron.
