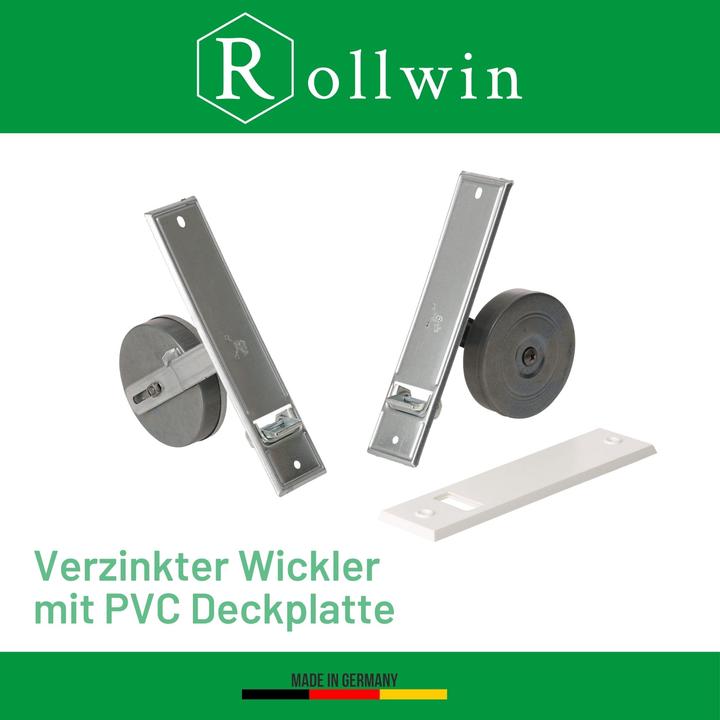

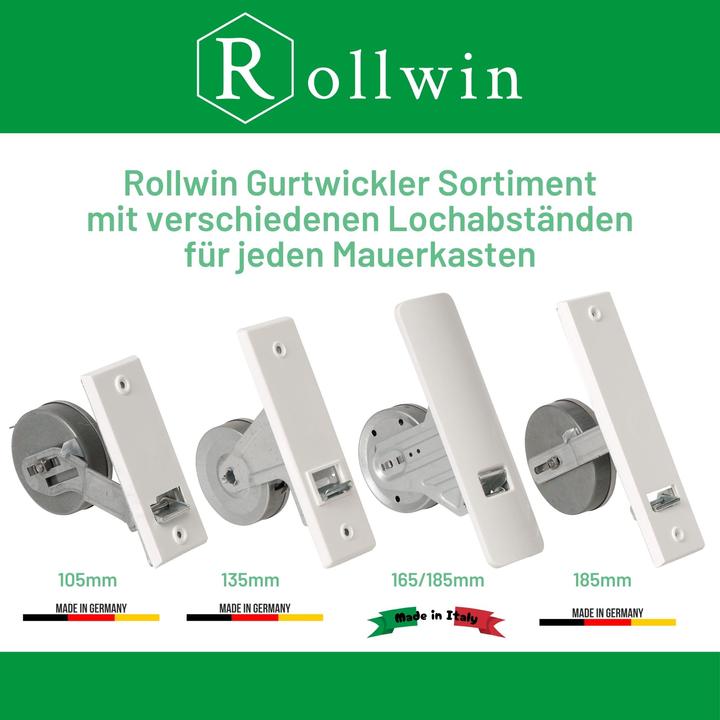

Recessed belt winder with hinge system, fixed

Pre-tensioned spool, single-arm design

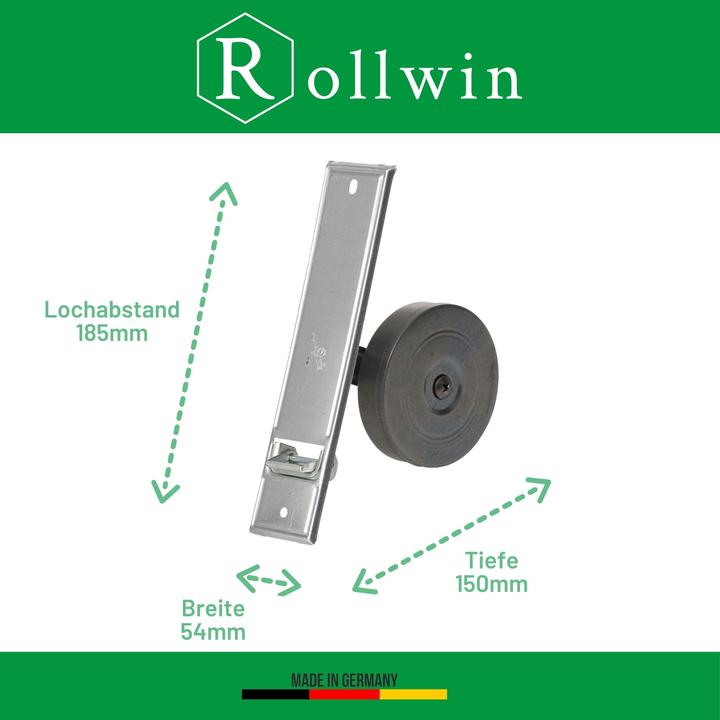

Dimensions (WxHxD): 54 mm x 220 mm x 150 mm; hole spacing: 185 mm

Belt capacity 10 meters, belt width: 23 mm Maxi version

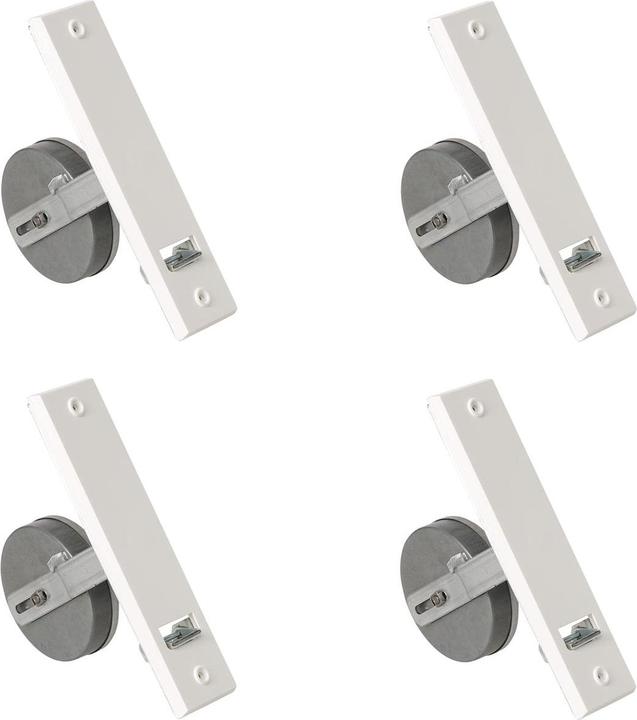

Delivery includes: 4x recessed belt winders with white cover plate

This belt winder is a recessed model with a hinge system. Roller shutter belts with a width of 23 mm can be used. A belt is not included with this model. The belt winder is designed for at least 20,000 movement cycles. The hole spacing is 185 mm.

Technical specifications:

• Dimensions (W x H x D): 54 mm x 220 mm x 150 mm
• For belt width: 23 mm
• Belt capacity in winder: 12.0 m
• Hole spacing: 185 mm
• Movement cycles: min. 20,000
• Color of cover plate: White
• Spring pre-tensioned: Yes
• Belt included: No
• Operation type: Belt
• Surface-mounted: No
• Recessed: Yes

Our installation suggestion:

1. Close your roller shutter.
2. Unscrew the old belt winder from the wall and detach the belt. Caution! Do not injure yourself during this process. There is a lot of tension on the spool.
3. Thread the belt through the guide into the new belt winder (for multi-part belt winders, please do not forget the cover plate).
4. Secure the belt inside the winder at the designated holder.
5. Release the belt winder. By turning the winder, the belt will be wound onto the spool (pay attention to the direction of rotation).

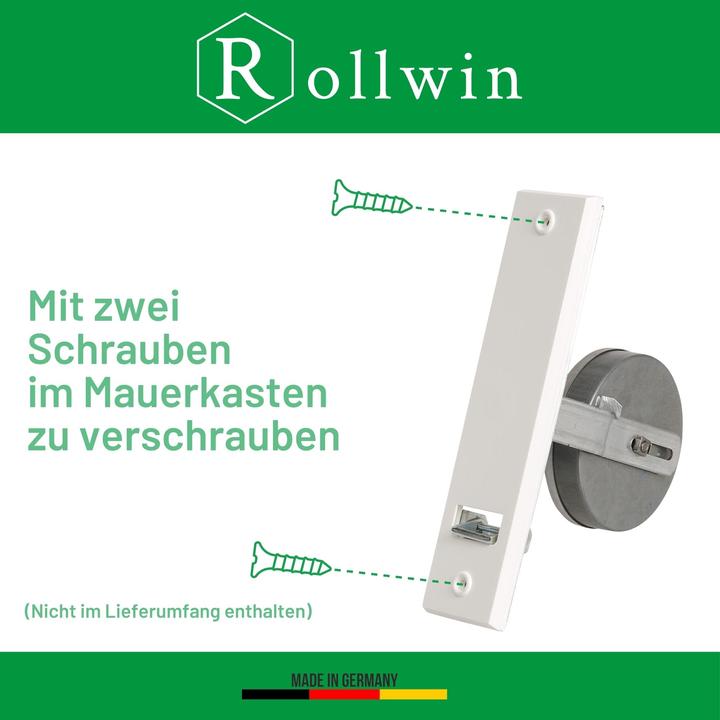

6. Now mount the new belt winder into the wall.
7. Test your roller shutter. It should operate flawlessly.
8. Close the roller shutter box.

Done!.
