Inside diameter: 19mm
Outer diameter: 24mm
Material: PET, PVC
Color: Transparent
Amplified: Yes
Areas of application: Compressed air, food, water
Length: 25m
Minimum operating temperature: -15°C
Maximum operating temperature: +60°C
Operating pressure max.: 10 bar
Bending radius: 95mm
Operating temperature range: -15 to +60 °C

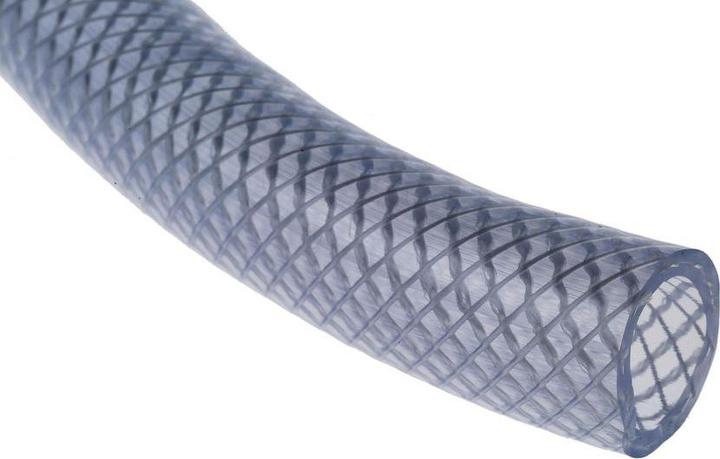

Operating pressure at +23 °C. This is a standard PVC hose that is transparent and reinforced. It is an economical hose suitable for simple requirements, ideal for universal use, and particularly popular for industrial compressed air equipment. It can also be used for food contact applications. Made of transparent PVC with low toxic content and reinforced with high-strength polyester fibers.

Properties and advantages include being an effective, functional choice for a variety of applications, especially on a limited budget. It features crystal clear transparency for excellent visibility and excellent abrasion resistance. Made from cadmium and silicone-free materials from a special non-toxic, odorless PVC formula that can reduce the aftertaste of drinking water. It is suitable for food, water, chemicals, gas, and fuel oils. The product is EC compliant for food contact applications and RoHS compliant. It is very resistant to a wide range of acids and alkalis.

Operating temperature is -15 °C to +60 °C. Specially selected high-strength polyester fibers are used at the optimum braid angle to ensure an effective and balanced high-pressure hose. Manufactured according to BS EN ISO 6224, with a safety factor of 3:1 at 23 °C.

This product is suitable for a wide range of compressed air applications in the production area and is popular for pharmaceutical and scientific chemical transfer applications, as well as for the transfer of food substances and liquids.
