Pipe connection A = Push-in installation 6 mm
Pipe connection B = Push-in installation 6 mm
Pipe connection C = Push-in installation 6 mm
Pipe connection D = Push-in installation 6 mm
Surface = Nickel-plated
Maximum operating pressure = 10 bar
Pipe connection D - Pipe size = 6 mm
Maximum operating temperature = +60 °C
Pipe connection A - Type = Push
Pipe connection B - Type = Push
Minimum operating temperature = 0 °C
Pipe connection D - Type = Push
Pipe connection C - Pipe size = 6 mm

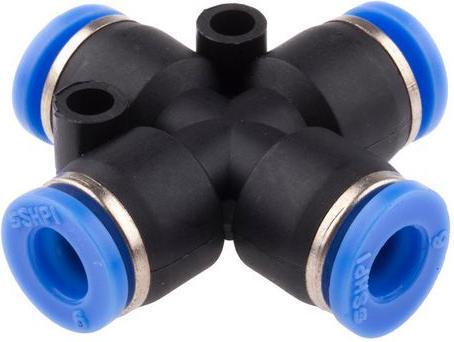

RS Pro One-Touch Fittings – metric system. Features and benefits: One-touch connection for quick hose attachment. All models are useful for pipe installation in tight spaces due to the hexagonal wrench design. Instant disconnection of the robust technical plastic (POM) sleeve by pressing the sleeve and then simply removing the pipe from the fitting. Fittings are treated with Teflon or feature an O-ring on the thread. Nickel-plated brass housing provides protection against contamination for extended durability. Technical specifications: Suitable for use with air. Operating pressure range: 0-150 psi. Negative pressure: –29.5 in Hg. Operating temperature range: 32 °F to 140 °F. Product application information: Usable in pneumatic pipelines and a variety of applications.
