RZB LED emergency light 672126.002

Manufacturer: RZB
Designation: LED emergency light
Type: 672126.002
Mounting type: Wall-mounted
Function: Emergency exit signage
Suitable for signage type: Other
Type of signage: Single-sided
With pictogram: Yes
Monitoring device: Automatic self-test
Switching type: Continuous operation/standby operation
With remote switch connection: No
With remote control: No
Power supply: Decentralized (single battery)
Battery type: NiCd
Light source: Non-replaceable LED
With light source: Yes
Suitable for number of light sources: 3
Socket: None
Number of light heads: 1
Housing material: Plastic
Housing color: White
Cover material: Opal plastic
Voltage type: AC
Nominal voltage: 220-240 V
Driver: LED driver, current controlled
Replaceable driver: Yes
Light distributor: None
Energy efficiency class of fixed light source: A++, A+, A (LED)
Constant luminous flux regulation: No
Protection class (IP): IP65
Protection class (NEMA): Other
Impact resistance: IK08
Protection class: I
Light with limited surface temperature "D mark": Yes
Rated ambient temperature according to IEC62722-2-1: 5-35 °C
Max. system power: 5.8 W
Color temperature: 6500 K
Detection range: 24 m
Nominal operating duration: 3 h
Width: 80 mm
Height/depth: 186 mm
Length: 320 mm
Wiring type: Suitable for through wiring
Number of poles: 4
Conductor cross-section: 2.5 mm²
Connection type: Plug connection

RZB LED emergency light 672126.002: Additional details

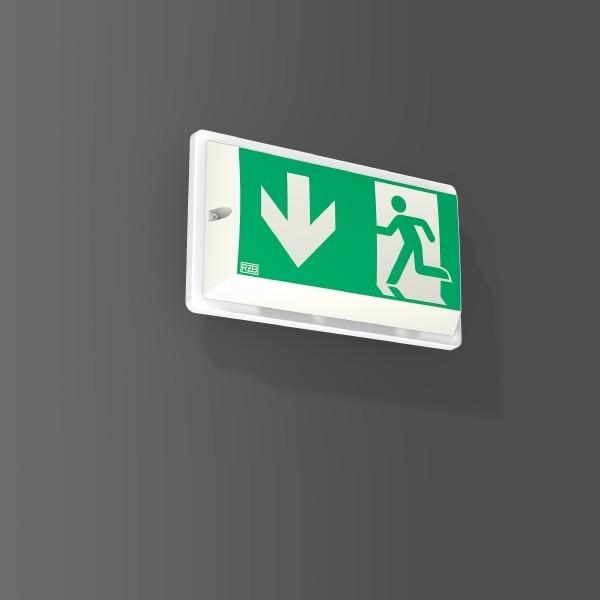

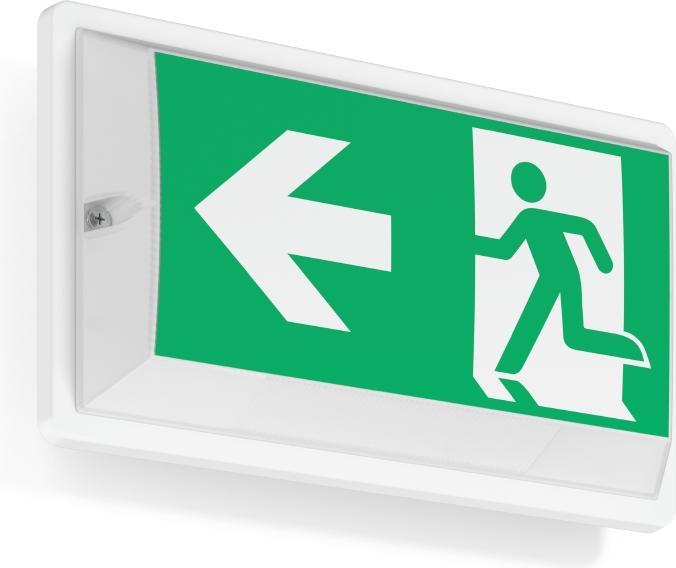

Light for emergency exit signage. Fixture made of plastic (polycarbonate). Housing and diffuser made of impact-resistant opal plastic (polycarbonate). Four films for emergency exit signage included (according to ISO 7010). Integrated drivers. Single battery system with automatic self-test. Ball-proof according to DIN 18032-03. Approved for use in the food and beverage industry.
