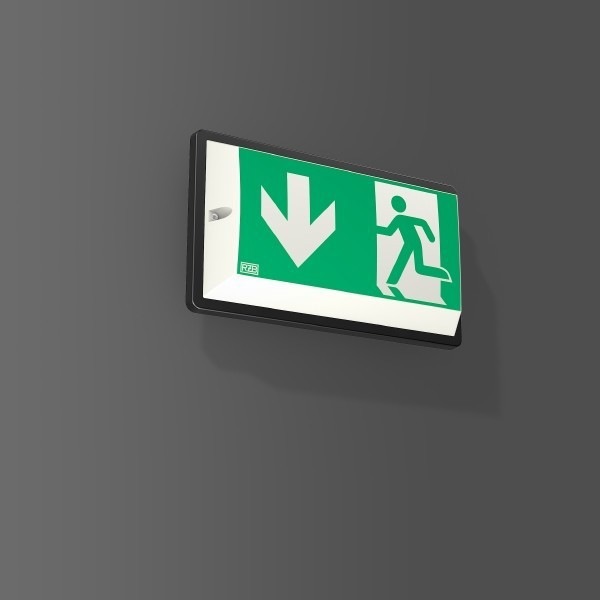

RZB LED emergency light 672175.003

Manufacturer: RZB
Designation: LED emergency light
Type: 672175.003
Mounting type: Wall-mounted
Function: Escape route marking
Suitable for marking type: Other
Type of marking: One-sided
With pictogram: Yes
Monitoring device: Automatic self-test
Switching type: Continuous/standby
With remote switch connection: No
With remote control: No
Power supply: Decentralised (single battery)
Battery type: NiCd
Illuminant: LED not replaceable
With illuminant: Yes
Suitable for number of illuminants: 3
Lampholder: Without
Number of luminaire heads: 1
Material of housing: Plastic
Housing colour: Black
Material of cover: Plastic opal
Voltage type: AC
Rated voltage: 220-240 V
LED rated current at constant current: 23-25 mA
Control gear: LED control gear current-controlled
Replaceable control gear: Yes
Light distributor: Without constant luminous flux control: No
Protection class (IP): IP65
Protection class (NEMA): Other
Impact resistance: IK08
Protection class: I
Luminaire with limited surface temperature "D symbol": Yes
Rated ambient temperature according to IEC62722-2-1: 25 °C
Max. system wattage: 5.8 W
Colour temperature: 6500 K
Detection distance: 24 m
Rated operating time: 8 h
Width: 80 mm
Height/depth: 186 mm
Length: 320 mm
Type of wiring: Suitable for through-wiring
Number of poles: 4
Conductor cross-section: 2.5 mm²
Type of connection: Plug-in connection

RZB LED emergency luminaire 672175.003: further details
Luminaire for escape route marking. Fitting plastic (polycarbonate). Housing and diffuser opal of impact-resistant plastic (polycarbonate). 4 foils enclosed for escape route marking (according to ISO 7010). Control gear integrated. Single battery system with automatic self-test. Ball-proof according to DIN 18032-03. Approved for use in the food and beverage industry. EAN: 4051859160120.
