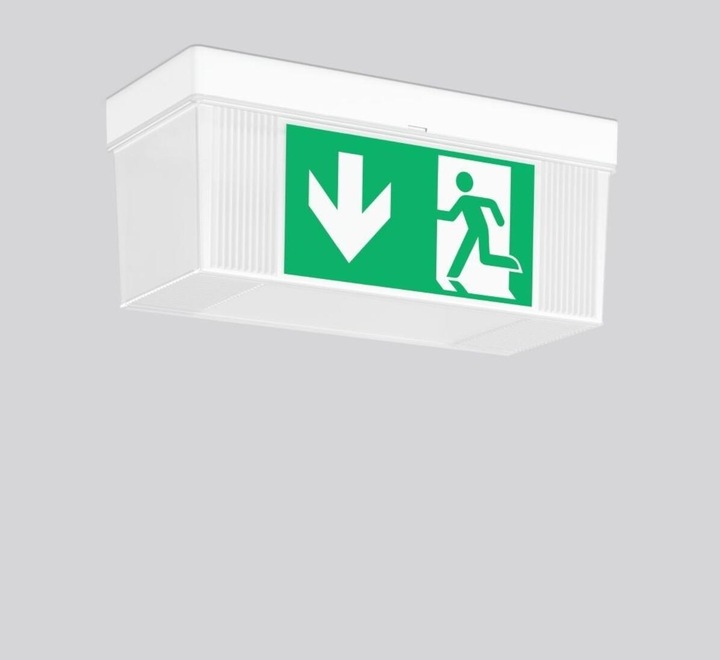

RZB LED Emergency Light 671819.002.2

Manufacturer: RZB
Designation: LED Emergency Light 3h, white
Type: 671819.002.2
Mounting Type: Wall-mounted/Ceiling-mounted
Function: Emergency Exit Signage
Suitable for Signage Type: Insert sheet/plate
With Pictogram: yes
Monitoring Device: automatic self-test
Suitable for Standby Operation: no
Suitable for Continuous Operation: yes
With Remote Switch Connection: no
With Remote Control: no
Power Supply: decentralized (single battery)
Battery Type: other
Light Source: non-replaceable LED
With Light Source: yes
Suitable for Number of Light Sources: 1
Socket: none
Number of Light Heads: 1
Housing Material: Plastic
Housing Color: white
Cover Material: opal plastic
Voltage Type: AC
Nominal Voltage: 220-240 V
Operating Device: electronic ballast
Replaceable Operating Device: yes
Light Distributor: none
Energy Efficiency Class of Light Source according to EU Directive 2019/2015: D
Constant Luminous Flux Control: no
Protection Class (IP): IP54
Protection Class (NEMA): other
Impact Resistance: IK03
Protection Class: II
Light with Limited Surface Temperature "D Mark": no
Max. System Power: 3.7 W
Color Temperature: 4000 K
Detection Range: 21 m
Nominal Operating Duration: 3 h
Width: 144 mm
Height/Depth: 148 mm
Length: 344 mm
Wiring Type: suitable for through-wiring
Number of Poles: 3
Conductor Cross-section: 1.5 mm²
Connection Type: plug connection

RZB LED Emergency Light 671819.002.2: additional details
Fully plastic light in impact-resistant design. For emergency exit signage. Fixture made of plastic (polycarbonate). Opal diffuser made of plastic (polycarbonate). Suitable for ceiling or wall mounting. Can also be used as a pendant light with accessories. Single battery system with automatic self-test. 4 films for emergency exit signage included.
EAN: 4051859991328.
