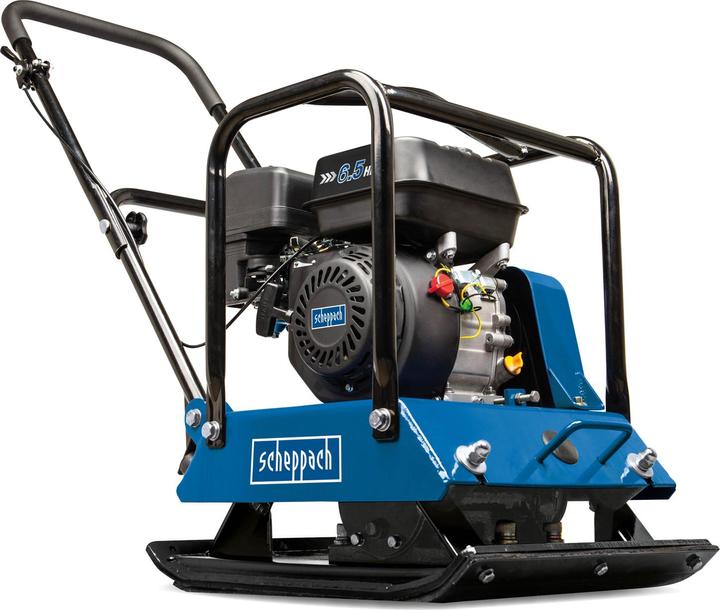

Scheppach - HP2200S Plate Compactor, 6.5 HP

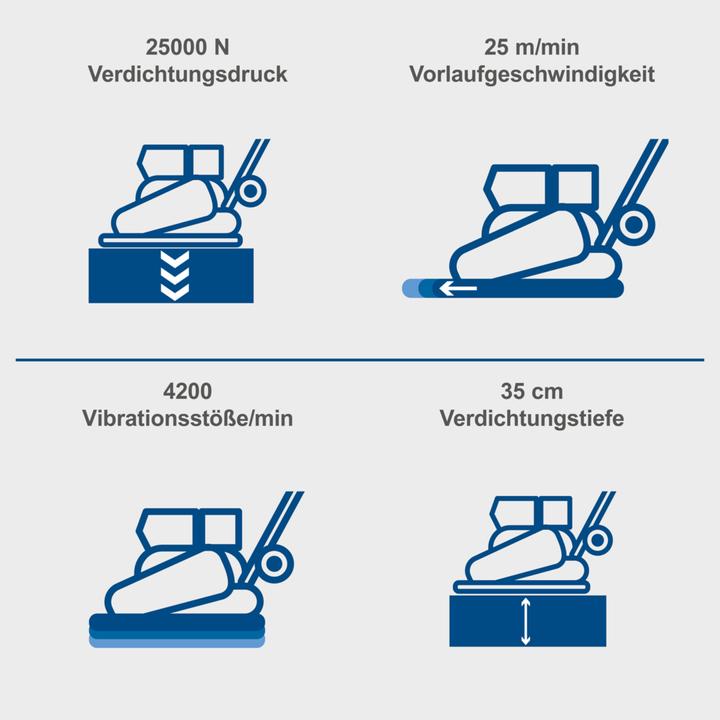

Compact paths and large areas easily and quickly with the Scheppach HP2200S plate compactor. With its powerful 6.5 HP engine, it effortlessly achieves a compaction pressure of 25000 N and a compaction depth of up to 35 cm. Thanks to the automatic drive, the plate compactor reaches a speed of 25 m/min, completing the job in no time.

Plate size: 550 x 440 mm

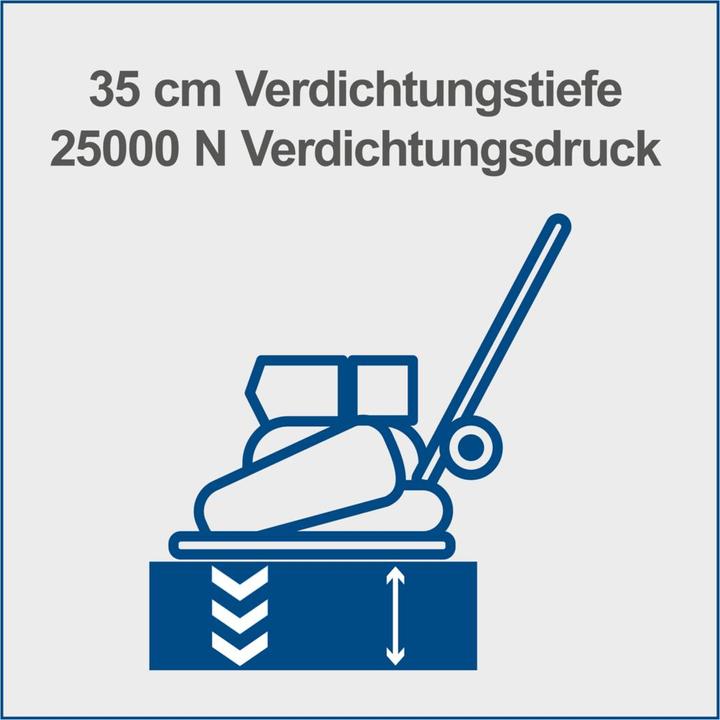

Compaction pressure: 25000 N
Compaction depth: 35 cm
Powerful 6.5 HP gasoline engine
Automatic forward speed of 25 m/min
Base plate made of high-strength steel
Includes transport device for one-person operation
Includes rubber mat for paving work

Technical data:
Engine displacement: 196 cc
Fuel tank volume: 3.5 l
Machine height: 930 mm
Machine length: 1025 mm
Machine width: 440 mm
Net weight: 102 kg
Max. compaction pressure: 25000 N.
