Operating voltage: 230 V AC

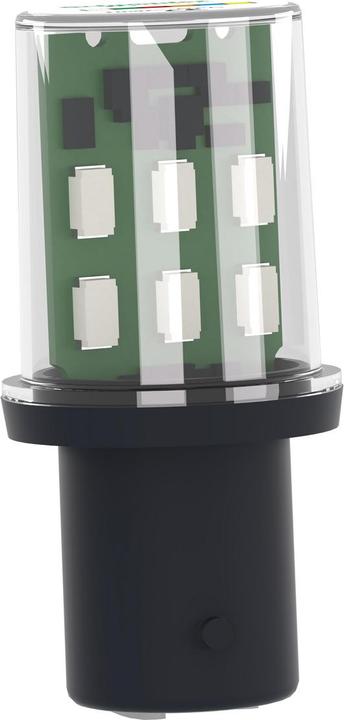

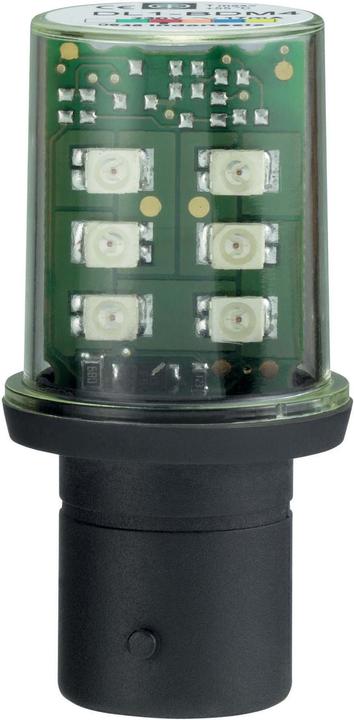

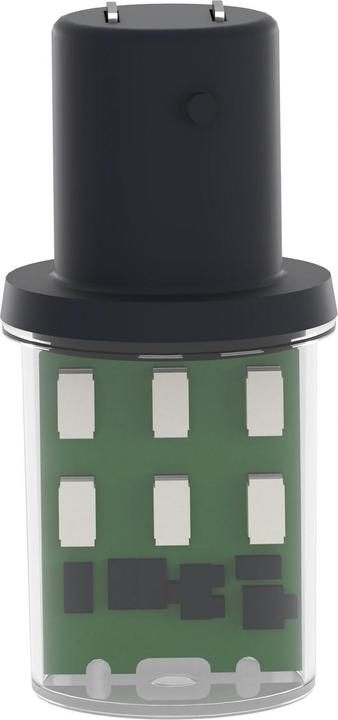

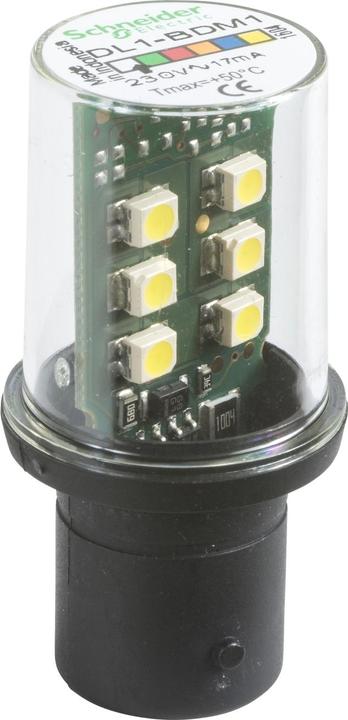

Lamp type: LED
Lamp socket: BA15d
Lens color: White
Rated current: 30 mA

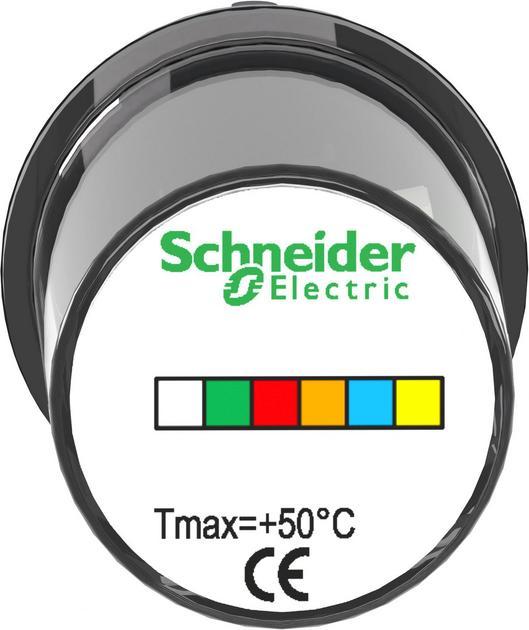

CSA, e-marking, cULus. EN/IEC 60947-5-1. Modular signal tower Schneider XVPC. Schneider's Harmony XVPC series is a visual and audible signal tower designed to indicate various operating conditions for equipment or plants, such as starting or stopping machines, indicating no material, calling technical personnel, and fault signaling. These signal towers are ideal for small machines as they are extremely compact, measuring only Ø 50 mm. They offer a high level of protection, extra brightness, and excellent reliability, making the XVPC series suitable for any type of environment.

Applications include vacuum packaging machines, labeling machines, and wrapping machines. The cream color finish is ideal for "clean" environments such as pharmaceuticals and electronics. The modular design allows for easy rotary mounting of diffusing lenses.

Key features include:

• Compact size of Ø 50 mm
• Signaling over long distances: 35 to 50 m
• IP65 protection
• International standards: CE, cULus
• Up to 5 diffusing lenses (including an optional acoustic signaling unit)
• 2 housing colors available: black for industrial and cream for clean environments
• 6 light colors available: green, red, orange, blue, transparent, and yellow
• Luminaires can be stacked and relocated by simply snapping into place
• Automatic electrical connection between luminaires; locking ring ensures safe mounting and separation
• Signaling by continuous illumination or flashing (incandescent lamps or LEDs with BA 15d base mounting)
• Factory-mounted xenon strobe for high-visibility applications
• Continuous or intermittent audible signaling
• 100,000 hours of maintenance-free illumination thanks to LED technology
• Choice of mounting options.
