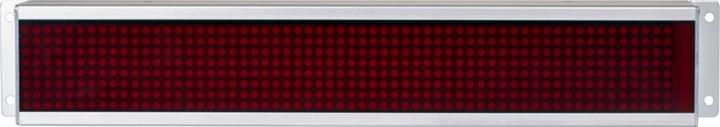

Elso corridor display single-sided ELG735631

Manufacturer: Elso
Designation: Corridor display single-sided ceiling mounting
Type: ELG735631
Mounting type: Surface-mounted
Suitable for labelling type: Other
Type of labelling: Single-sided
Illuminant: Other
With illuminant: Yes
Housing material: Plastic
Surface protection: Other
Voltage type: DC
Rated voltage: 24 V
Control gear: Not required
Light distributor: Without
Energy efficiency class of the permanently installed light source: Other
Protection class (IP): IP20
Protection class: Without
Light colour: Other
Width: 85 mm
Height/depth: 56 mm
Length: 518 mm
Wiring type: Suitable for through-wiring
Conductor cross-section: 1.5 mm²
Connection type: Screw terminal

Elso corridor display, single-sided ELG735631:
Further details: Corridor display, single-sided. Ceiling mounting wall bracket. Display of all calls, emergency calls, doctors' calls, and presences (adjustable). 10-digit display. Integrated sounder. For connection to ward bus. Surface mounting. Power supply: 24 VDC. Current consumption: 500 mA. Dimensions: 518 x 150 x 56 mm (L x W x D).
