Schneider Electric Electric charging station

Price in EUR including VAT, free shipping
Ratings
BrandMore from Schneider Electric
Delivered between Wed, 16.7. and Fri, 25.7.
Supplied by

Product details

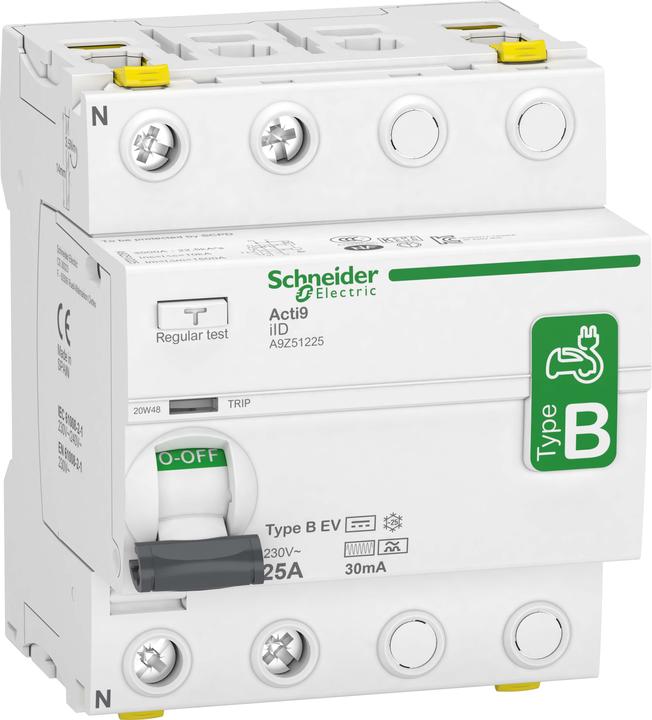

Residual current circuit-breaker, all-current sensitive for Acti 9 iID electric charging station. 2-pole, rated current 25A, type B-EV. Rated residual current 30mA, operating voltage 230 AC, 50Hz, insulation voltage 250V AC. Snap action for low-wear switching of the contacts. With mechanical fault indication on the front (VisiTrip) to indicate tripping due to residual current. Safe contact display (VisiSafe) of the residual current circuit-breaker, with green display to ensure the absence of voltage on the outgoing side. Test button for regular testing of the function. Double connection terminals for connecting cables or phase busbars on both sides. Easy removal of the individual device when the phase busbar is installed, thanks to the fastening element accessible from the front. Additional stackable auxiliary modules (optional). Undervoltage release (iMN), overvoltage release (iMSU), shunt release (iMX), auxiliary switch for status signalling (iOF), fault signalling switch (iSD). Protection of charging stations for electric vehicles. RAL 9003 colour, complies with the following standards: IEC/EN 61008-2-1, IEC/EN 62423, IEC 61543, VDE 0664.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
2
Item number
31991093

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9Z51225
Release date
24.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
25 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC/DC
Rated insulation voltage Ui
250 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
4 mm

Package dimensions

Length
10.50 cm
Width
8.10 cm
Height
8.60 cm
Weight
358 g

14-day cancellation right
30-day right of return if unopened
24 Months statutory warranty
