Supply voltage: 12 – 24 V DC
Lens color: Green
Mounting type: Surface mount
Power type: DC
Light type: Flashing, rotating
Buzzer type: Electronic
dB at 1 meter distance: 90 dB
Series: Harmony XVR
Lamp type: LED
Housing color: Black
Minimum decibels: 70 dB
Maximum decibels: 90 dB
Number of tones: 1
Maximum temperature: +50 °C

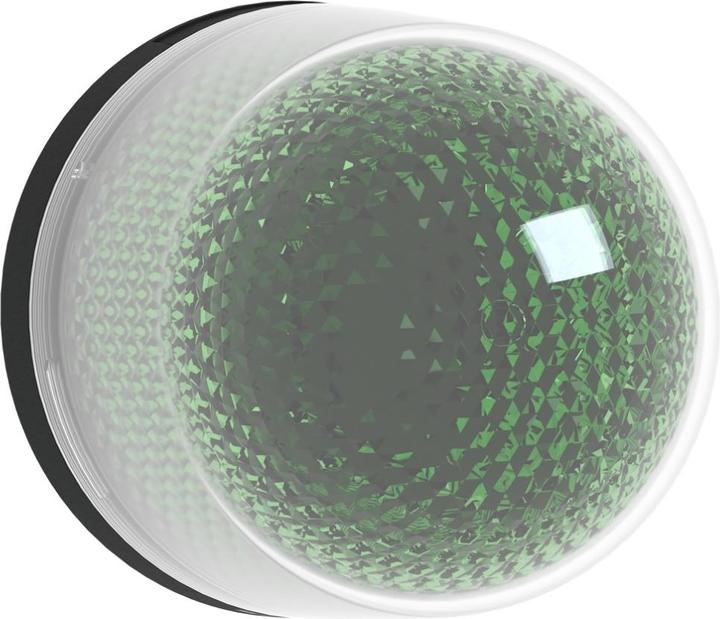

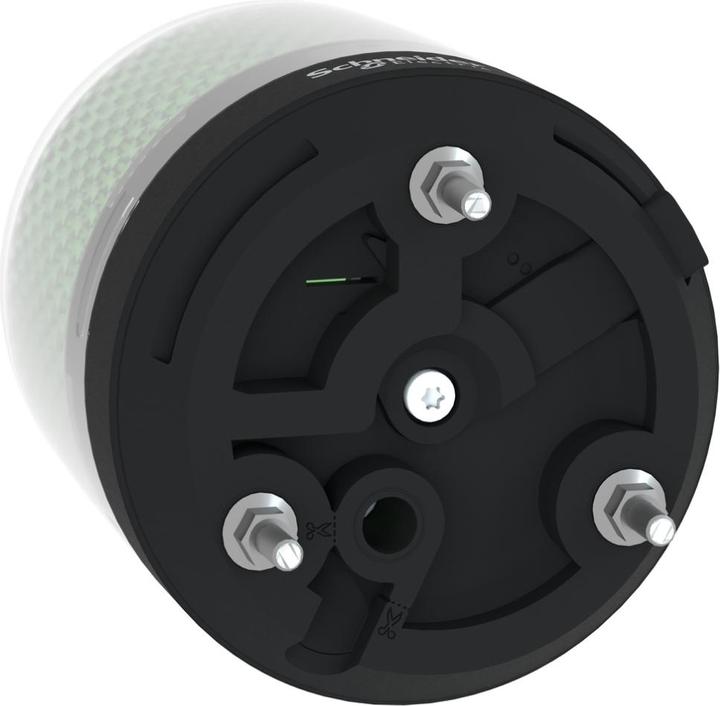

Multifunctional LED signal lights Schneider XVR with buzzer. The motorless rotating signal lights and buzzers from the Harmony XVR series are visual and acoustic signaling units for factories, construction vehicles, and public areas. The buzzer signal lights are available in four different colors and feature a faceted lens that expands the illumination area. The unique aesthetic design of the signal lights with buzzer from the XVR series was awarded the Red Dot Industrial Design Award in 2014. Installation of these visual and acoustic signaling units is straightforward, thanks to a flexible voltage input, a mode selection switch, and an integrated rubber base, allowing for both straight and lateral wiring.

Longer lifespan and maintenance-free due to motorless LED technology. Rotating, flashing, and blinking LEDs. Ten lighting modes facilitate use and selection. Wide input voltage range for various applications. Straight and lateral wiring possible. Easy and lightweight installation without the use of tools. Adjustable 90 dB warning buzzer at 1 m. Volume of the external buzzer adjustable from 70 dB to 90 dB. Available in green, red, orange, and blue. Unique aesthetic design. Faceted lens expands the illumination area. Integrated rubber base improves the IP protection class. Up to IP65 protection class depending on the chosen buzzer. High vibration resistance of 7.1 G. CE marked and RoHS compliant. Connection via 400 mm connection wires with a cross-section of 0.57 mm².
