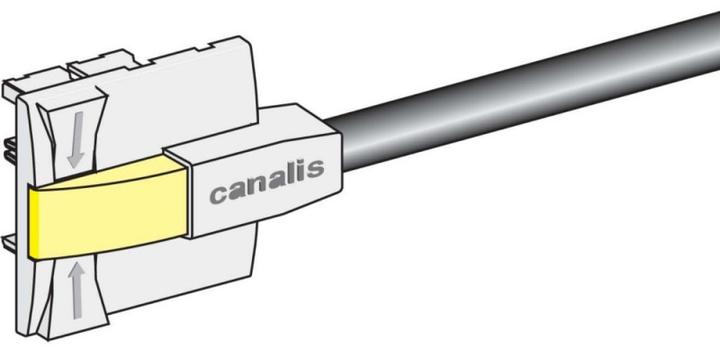

Schneider Electric Branch Adapter KBC10DCS201

Manufacturer: Schneider Electric
Description: Branch adapter for fixed phase separation
Type: KBC10DCS201
Number of conductors (excluding ground): 2
Number of poles: 3
Rated current at AC 50 Hz: 10 A
Rated voltage at AC 50 Hz: 230..400 V
Phase selection: yes
With locking: no
Type of outlet: socket
Design of sockets: other
Protection: none
Color: white
RAL number: 9001
Degree of protection (IP): IP55
Length: 55 mm
Width: 12.5 mm
Height: 42 mm

Further details: This is a branch unit for direct connection to Canalis busbar distributors KBA, KBB, and KDP. Canalis KBA, KBB, and KDP are designed for lighting and socket distribution. The rated operating current is 10 A at 35 °C. The operating voltage ranges from 230 VAC 50/60 Hz to 240 VAC 50/60 Hz. This tapping device is pre-wired with a 0.80 m long SO5Z1-F 3x1.5 mm² cable. It is a single-phase branch unit with fixed polarity L2+N+PE. The lock is in yellow color. It offers protection class IP55 according to standard IEC 60529, which ensures protection of the cable channels against splashing water and dust. It provides IK06 protection according to standard IEC 62262 against external mechanical impacts. Sold in batches of 10 units. Canalis products comply with standard IEC/EN 61439-6. It is not flame-spreading according to the recommendations of standard IEC 60332-3. All insulating and plastic materials are halogen-free and have increased fire resistance (IEC 60695-2).
