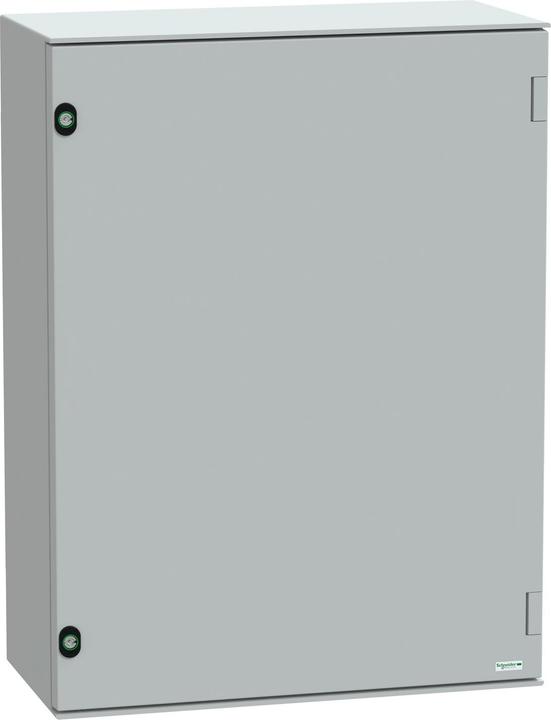

Schneider Electric Polyester enclosure PLM wall mounting, with NSYPLM86BG
Product details

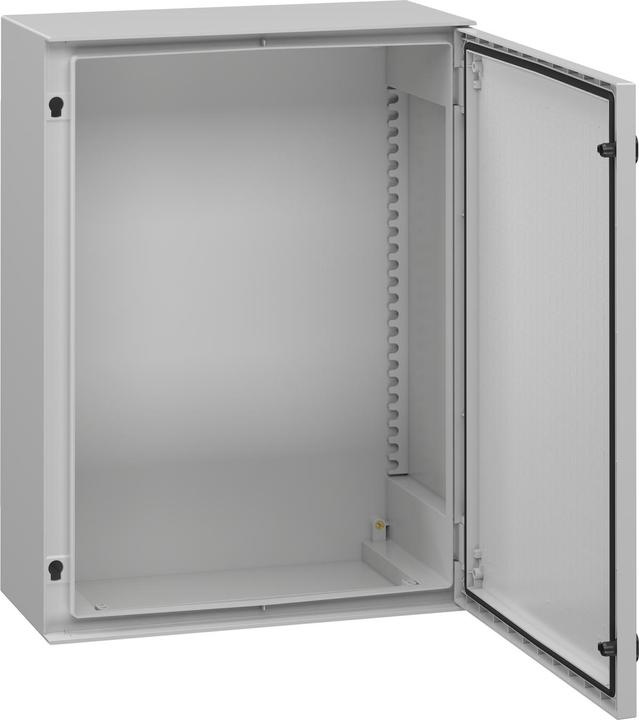

This PanelSet PLM (formerly Thalassa PLM) is a wall-mounted enclosure suitable for multipurpose applications. The enclosure has nominal dimensions of 847 mm in height, 636 mm in width, and 300 mm in depth. It is made of fiberglass-reinforced polyester, which provides long-lasting durability and resistance in industrial and harsh environments, as well as outdoors. The polyester material is composed of 37% recycled content. The packaging is made of 75% recycled cardboard and contains no single-use plastic. The enclosure is available in gray (RAL 7035). It consists of a body, a door, a mounting plate, and two locks. The door is smooth and can be opened from the front with two 3 mm double-bar locks. The enclosure offers a high level of protection against dust and water with an IP66 rating (IEC 60529). Additionally, it is extremely impact-resistant with an IK10 rating (IEC 62262) and provides protection against electric shocks with Class II electrical insulation. The enclosure is UL certified and can be stored at ambient temperatures ranging from -40 to 80 °C without compromising its performance. It is also fire-resistant up to 960 °C (IEC 62208) and meets the standards of NEMA classifications 13 and 4X as well as IEC 62208.
Distribution cabinet type | Switch cabinet |
mounting style | Wall-mounted |
Length | 300 cm |
Item number | 33624339 |
Manufacturer | Schneider Electric |
Category | Electrical enclosures |
Manufacturer No. | NSYPLM86BG |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | RAL 7035 |
Material group | Plastic |
Material | Polyester (PET) |
Distribution cabinet type | Switch cabinet |
mounting style | Wall-mounted |
Protection type (IP code) | IP66 |
Country of origin | Spain |
Manufacturer commitment | RE100, SBTi |
Length | 300 cm |
Product Safety |
