Schneider Electric Polyester enclosure PLM wall mounting, without NSYPLM108TG
Product details

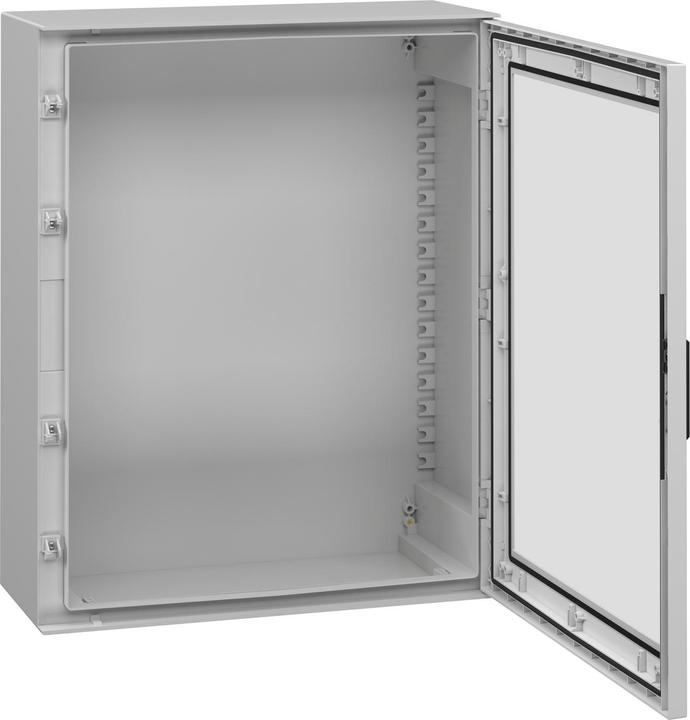

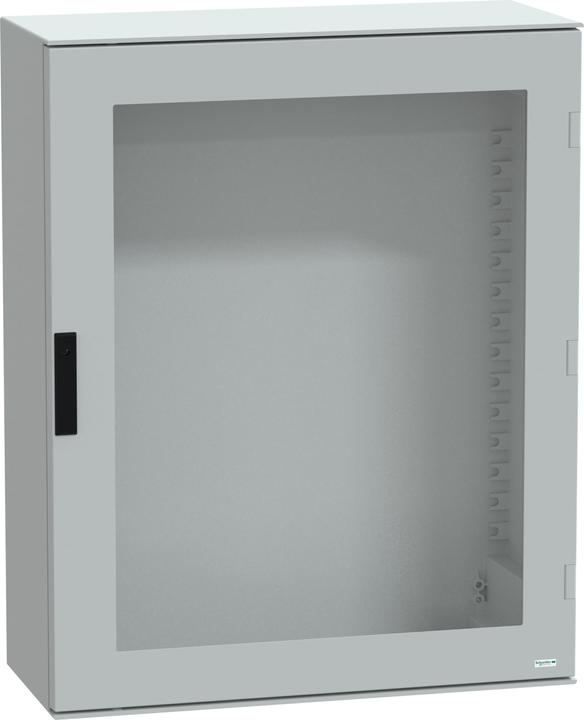

This PanelSet PLM (formerly Thalassa PLM) is a wall-mounted enclosure suitable for multipurpose applications. The enclosure has nominal dimensions of 1056 mm in height, 852 mm in width, and 350 mm in depth. It is made from fiberglass-reinforced polyester, which offers a long lifespan and durability in industrial and harsh environments as well as outdoors. The polyester material is composed of 37% recycled material. The packaging is made of 75% recycled cardboard and contains no single-use plastic. The enclosure is available in the color gray (RAL 7035). It consists of a body, a door, and a lock. The door is transparent, and the lock is a 4-point lock with a handle featuring a 5 mm double rod insert. The enclosure provides high protection against dust and water with an IP66 rating (IEC 60529). Additionally, it is extremely impact-resistant with an IK10 rating (IEC 62262) and offers protection against electric shocks with a Class II electrical insulation. The enclosure is UL certified and can be stored at ambient temperatures ranging from -40 to 80 °C without compromising its performance. It is also fire-resistant up to 960 °C (IEC 62208) and meets the standards of NEMA classifications 13 and 4X as well as IEC 62208.
Distribution cabinet type | Switch cabinet |
mounting style | Wall-mounted |
Length | 350 cm |
Item number | 33624320 |
Manufacturer | Schneider Electric |
Category | Electrical enclosures |
Manufacturer No. | NSYPLM108TG |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | RAL number: 7035 |
Material group | Plastic |
Material | Polyester (PET) |
Distribution cabinet type | Switch cabinet |
mounting style | Wall-mounted |
Protection type (IP code) | IP66 |
Country of origin | France, Spain |
Manufacturer commitment | RE100, SBTi |
Length | 350 cm |
