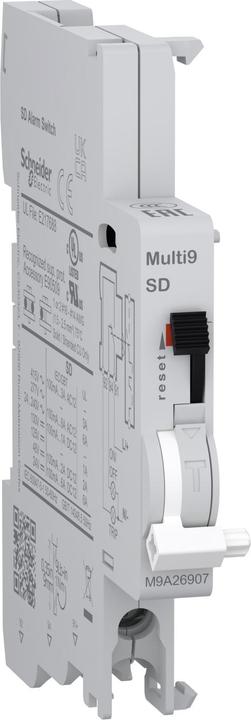

This electrical accessory from Acti9 is a switch (normally open/normally closed) for indicating the position of the circuit breaker in the event of an electrical fault or tripping. The operating current is 6A from 24VAC to 240VAC, 3A from 277VAC and 415VAC at a frequency of 50Hz to 60Hz. The operating current of 6A is at 24VDC, 2A at 48VDC, 1.5A at 60VDC, 1A at 110VDC, and 130VDC. There is a fault and alarm contact. The accessory is intended for installations in industry and for OEMs. It is compatible with the Multi9 series such as C60BP, C60SP, C60, and N40. The screw terminal connection at the bottom allows for rigid copper cables with a cross-section of 2.5mm². The connection also accommodates flexible copper cables with a cross-section of 1.5mm². The Ui rated insulation voltage is up to 500 V. The rated impulse voltage Uimp is 4kV. The stripping length is 9 mm. The tightening torque for the connection is 1N·m (bottom) for the screwdriver type PZ1. The IP protection class is IP20. The operating temperature ranges from -25°C to +70°C. The storage temperature ranges from -40°C to +85°C. This product complies with the standards EN/IEC 60947-5-1, GB/T 14048.5, GB/T 14048.17, UL 1077, UL 489, CSA C22.2 No 0-10, CSA C22.2 No 5-13, CSA C22.2 No 235-04, and CSA C22.2 No 65-03. It has EAC and CCC quality labels and is certified with CE, UKCA, UL, and CSA certifications.
