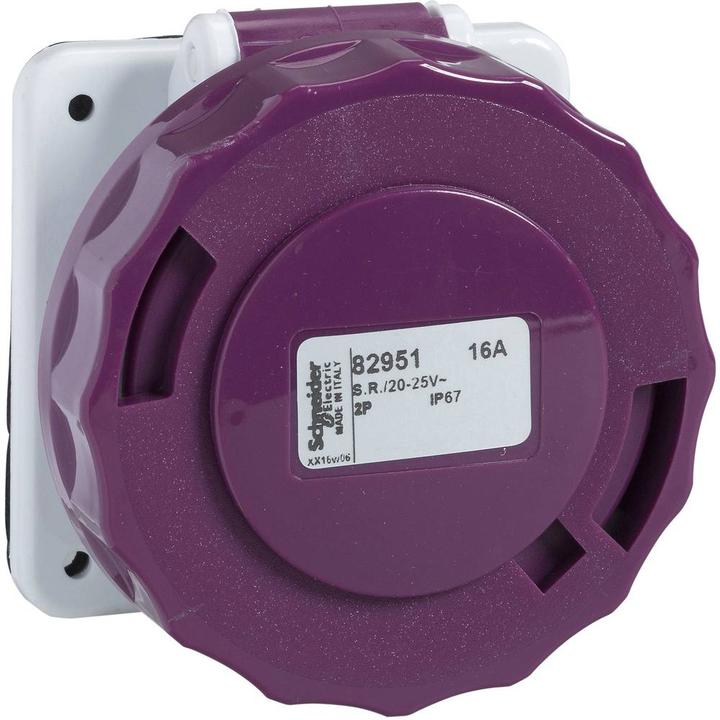

Schneider Electric SE 82951 Surface-mounted socket outlet Ip67 16A 20-25V 2P
Product details
Schneider Electric Industrial Socket 82951
Manufacturer: Schneider Electric
Description: Straight industrial socket, 16A, 2-pole
Type: 82951
IEC Current Rating: 16 A
Voltage according to EN 60309-2: 20-25 V (50+60 Hz)
Identification Color: violet
RAL Number: 7035
Protection Class (IP): IP67
Connection Technology: Screw terminal
Plug Orientation: Straight
Cable Entry: None
Material: Plastic
Military Version: No
Flange Dimension Vertical: 65 mm
Drilling Hole Distance Vertical: 60 mm
Flange Dimension Horizontal: 65 mm
Drilling Hole Distance Horizontal: 52 mm
Additional Details: PratiKa straight mounting socket. It features 2P poles, a rated current of 16 A, and an operating voltage of 20 VAC to 25 VAC. The dimensions of the base plate are (W) 65 mm x (H) 65 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The cross-section of cables at 16 A is from 1 mm² to 2.5 mm². The color of the base is light gray (RAL 7035) with violet for easy identification of the operating voltage. The frequency is 50 Hz or 60 Hz.
Exact colour description | Light grey, Violet |
Socket type | CEE 16/3 |
Number of cans | 1x |
Area of use | Outside |
Mounting type | Finery |
Item number | 32170851 |
Manufacturer | Schneider Electric |
Category | Sockets |
Manufacturer No. | 82951 |
Release date | 16.11.2022 |
Colour | Grey, Violet |
Exact colour description | Light grey, Violet |
Material group | Plastic |
Material | Plastic |
Socket type | Industrial socket |
Socket type | CEE 16/3 |
Number of cans | 1x |
Protection type (IP code) | IP67 |
Nominal current | 16 Ah |
Area of use | Outside |
Mounting type | Finery |
connector type | Screw terminals |
Smart home | Not compatible |
Country of origin | Italy |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 16,89 kg |
Climate contribution | EUR 0,42 |
Length | 6.50 cm |
Width | 6.50 cm |
Height | 6.50 cm |
