Schneider Electric Power Supply Units KBA40ABG4TW

Manufacturer: Schneider Electric
Designation: Power Supply Units 40A
Type: KBA40ABG4TW
Rated current at AC 50 Hz: 40 A
Connection point: End
Design: Single
Number of poles: 5
Rated voltage at AC 50 Hz: 230..400 V
Color: white
RAL Number: 9003
Protection class (IP): IP55
Length: 300 mm
Width: 75.5 mm
Height: 78.5 mm

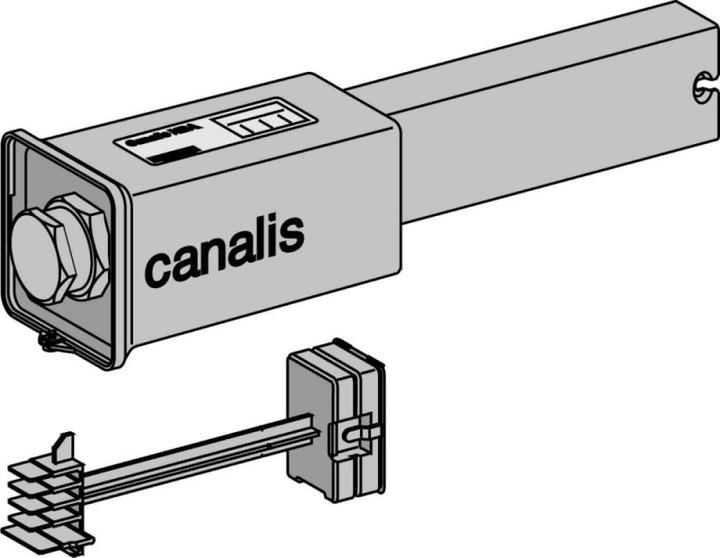

This is a power supply unit for Canalis KBA busbar distributors. Canalis KBA is intended for the distribution of lighting and sockets. The rated operating current is 40 A at 35 °C. The rated operating voltage ranges from 230 VAC to 400 VAC at 50/60 Hz. This unit is clamped to the left end of the busbar, and the included end cover should be clamped on the opposite side of the busbar. It accommodates power cables with a cross-section of 10 mm² and a maximum diameter of 19 mm (PG 21). It embeds a circuit with 3L+N+PE polarity. This power supply unit is supplied with an optional remote control circuit of 2 wires and is capable of transmitting and distributing the DALI protocol for light management.

It offers protection class IP55 according to the IEC 60529 standard, ensuring protection of the cable channels against splashes and dust. It provides IK06 protection according to the IEC 62262 standard against external mechanical impacts. The length is 300 mm, and the cross-section is 78.5 mm x 75.5 mm. It is made of white painted steel sheet RAL 9003. Canalis KBA complies with the IEC/EN 61439-6 standard. It is non-flame propagating according to the recommendations of the IEC 60332-3 standard. All insulating and plastic materials are halogen-free and have increased fire resistance (IEC 60695-2).
