Schneider Electric Kaedra Mini Enclosure 13151

Manufacturer: Schneider Electric
Designation: Kaedra Mini Enclosure
Type: 13151
Mounting Type: Surface-mounted
Number of Rows: 1
Width in Division Units: 4
Type of Cover: Door
Cover Design: Closed
Transparent Cover/Door: Yes
Material of the Enclosure: Plastic
Height: 310 mm
Width: 98 mm
Depth: 98.5 mm
Installation Depth: 0 mm
Internal Depth: 61 mm
Ground Terminal Block: Yes
Neutral Terminal Block: No
DIN Rail: Yes
With Mounting Plate: No
Mounting Option: Yes
EMC Version: No
Color: Gray
RAL Number: 7035
Protection Class (IP): IP65
With Lock: No
Type of Locking: Cylinder
Signal-Passing Door: Yes

Schneider Electric Kaedra Mini Enclosure 13151: Additional Details

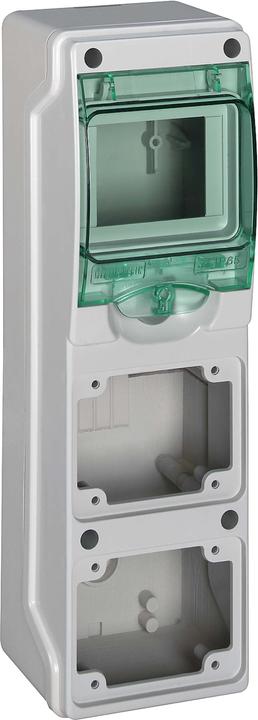

The Mini Kaedra is a weatherproof surface-mounted enclosure that allows for various installations. IP protection class - IP65. All types of modular rail-mounted devices can be installed, and there is space for the installation of industrial or household sockets, push buttons, or indicator lights. The enclosure is equipped with a transparent green door for modular rail-mounted devices. The color of the enclosure is light gray (RAL 7035). It is intended for new installations or renovations in residential/commercial buildings and many other areas. Cables can be introduced from the top of the enclosure through 3 pre-formed entries. A DIN rail for rail-mounted devices is pre-installed. 1 terminal block is included. The connection terminals have 4 outputs (2x10mm² + 2x16mm²). The enclosure has protection class II and is rated for a nominal current of up to 63A. Dimensions (W) 98mm x (H) 310mm x (D) 98.5mm. The material is a self-extinguishing plastic. Its resistance to flames and abnormal heat is 750°C according to IEC 60695-2-1. It is halogen-free. The operating temperature ranges from -25 to 60 °C. The enclosure complies with standards IEC 61439-1 and 3, IEC 60670-1 and 24.
