Schneider Electric USB socket outlet Asfora White (glossy) EPH2770421D
More than 10 items in stock at supplier
Product details

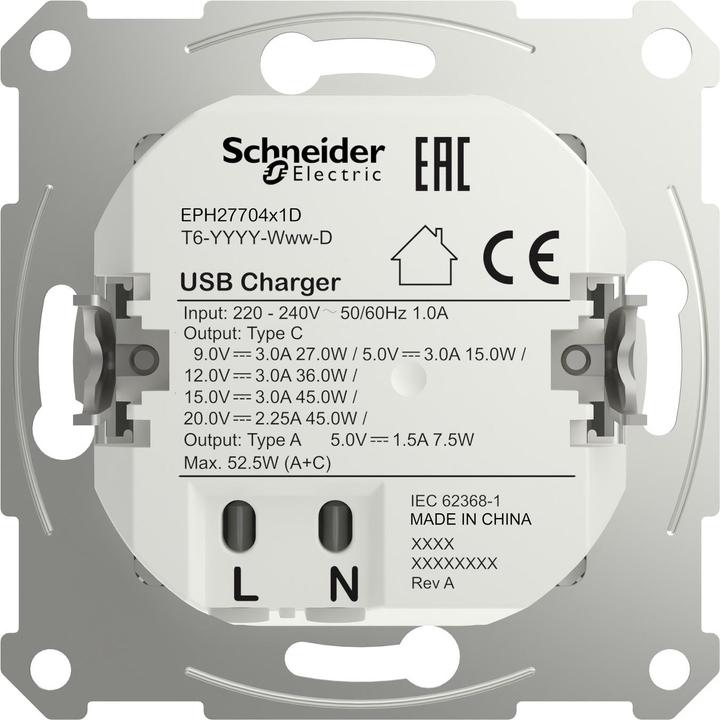

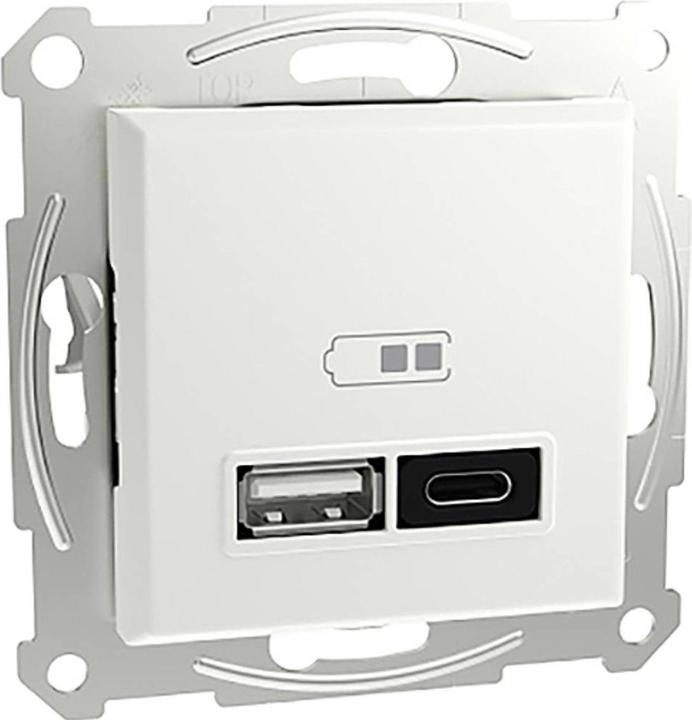

This Schneider Electric device is a USB charging station Type A+C from the Asfora design line, screwless and frameless in white. It features a 5V 1.5A USB Type A and a 20V 3A USB Type C. It has good wiring capacity for solid or flexible cables with a cross-section of 2 x 0.75-2.5 mm². The stripping length is 8 mm. It comes with 2 screw terminals and is connected with screws. The operating voltage is 220 - 240 VAC and the rated current is 3 A at 50/60Hz. The output power of this device is 45 W and the power consumption is 0.1 W. This device allows for flush-mounted installation. The dimensions are (W) 71 mm x (H) 71 mm x (D) 37 mm. It weighs 130 g. The color of this device is white with a glossy finish. It is made of polycarbonate. The operating temperature ranges from 0 to +40 °C and the storage temperature from -5 °C to +50 °C. It achieves protection ratings of IP20 and IK04. This product is offered in a set of 1 in box with Euro hole packaging. Asfora includes elegant controls for switches and sockets, dimmers for indoor and outdoor lighting, blinds, as well as sockets for TV/R/SAT, power, data, and USB. All Asfora products comply with the latest standards and are made from robust materials that withstand daily use for years. This device meets the EAC certificate and the ETSI EN 301 489-4 standard. Complete device consisting of a flush-mounted insert with a front cover. The device still needs to be complemented with an Asfora frame (white).
mounting style | Flush-mounted |
Area of use | Inside |
Exact colour description | White (shiny) |
Item number | 40928585 |
Manufacturer | Schneider Electric |
Category | Sockets |
Manufacturer no. | EPH2770421D |
Release date | 15.12.2023 |
Colour | White |
Exact colour description | White (shiny) |
Material group | Plastic |
Material | Polycarbonate |
Socket type | USB charging socket |
Protection type (IP code) | IP20 |
Nominal current | 10 Ah |
Nominal voltage | 240 V |
Area of use | Inside |
mounting style | Flush-mounted |
connector type | Screw connection |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Stack depth | 3.70 cm |
Length | 3.70 cm |
Width | 7.10 cm |
Height | 7.10 cm |
Weight | 130 g |
