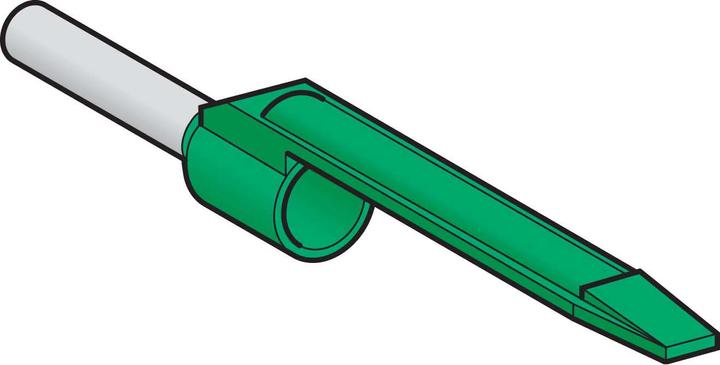

Schneider Electric Wire end ferrule
Product details
Schneider Electric End Sleeve DZ5CA015
Manufacturer: Schneider Electric
Designation: End sleeve 1.5 mm², with collar black
Type: DZ5CA015
Version: Standard
Nominal cross-section: 1.5 mm²
Sleeve length: 8 mm
Insulated: Yes
Insulation material: Polyamide (PA)
Halogen-free: Yes
Color: Black
Material: Copper
Surface protection: Tinned
For short-circuit-proof cables: No
With labeling tongue: Yes
Band material: No
AWG size: 16
The DZ5CA015 end sleeve from Schneider Electric features an insulated Linergy cable end that can be labeled with an integrated label holder. It is suitable for single conductors with a cable cross-section of 1.5 mm² and has a black surface finish. This medium-sized sleeve includes an integrated label holder. Packaging is done in bags containing 10 sets of 100 pieces each. The operating temperature range is from -20 to 105 °C. It complies with the NF C 63-023 standard and is UL certified. Additionally, it meets the requirements of Green Premium (RoHS/REACH).
Colour | Black |
Cable connection type | Wire end ferrule |
Suitable for cable cross-section | 1.50 mm² |
Items per sales unit | 1000x |
Item number | 33587136 |
Manufacturer | Schneider Electric |
Category | Cable joints |
Manufacturer No. | DZ5CA015 |
Release date | 17.5.2023 |
Exact colour description | Black |
Colour | Black |
Material | Copper |
Material group | Metal |
Cable connection type | Wire end ferrule |
Suitable for cable cross-section | 1.50 mm² |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Scope of delivery | Wire end ferrule |
Items per sales unit | 1000x |
Length | 12 mm |
Width | 9 mm |
Height | 8 mm |
Product Safety |
