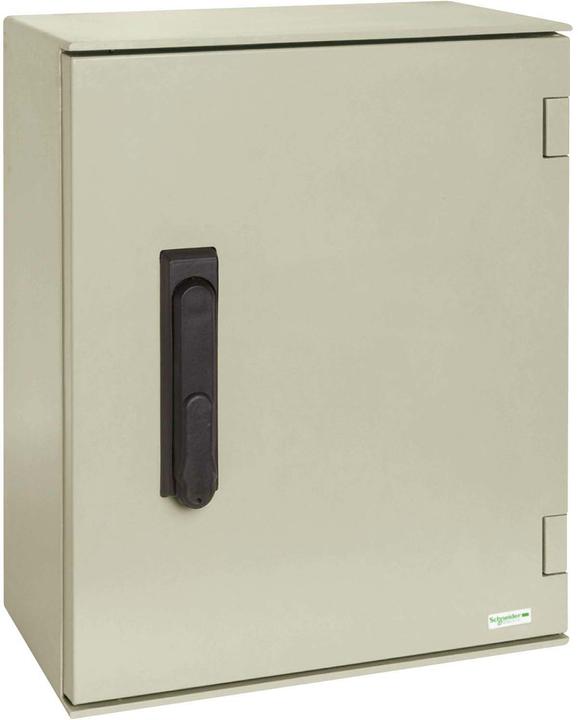

Schneider Electric wall-mounted enclosure NSYPLM43VG

Manufacturer: Schneider Electric
Description: Wall-mounted enclosure
Dimensions: 430 x 330 x 200 mm
Type: NSYPLM43VG
Width: 330 mm
Height: 430 mm
Depth: 200 mm
Material: Plastic
Material grade: Polyester
Finish: Untreated
Colour: Grey
RAL number: 7035
Free-standing: No
Floor-standing wall model: No
Suitable for wall mounting: Yes
Corner model: No
Intermediate mounting: No
Can be coupled: No
With mounting plate: No
Mounting plate depth adjustable: Yes
Pole mounting: Yes
Number of doors: 1
Number of locks: 2
Suitable for metric mounting: Yes
Suitable for outdoor installation: Yes
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK10
Degree of protection (IP): IP66
Degree of protection (NEMA): 4X
Max. permissible load of the enclosure/cabinet to IEC 62208: 221 N
Max. permissible load of the door(s) to IEC 62208: 43 N
Max. permissible load of the mounting plate to IEC 62208: 129 N

This enclosure features an integrated rain cover, a body molded in one piece with mounting notches on the rear, and does not include a mounting plate. It has 2 locks (3-point lock, handle with key lock) and an accessible front. The polyester is reinforced with glass fiber and has a fire resistance of 960°C.
