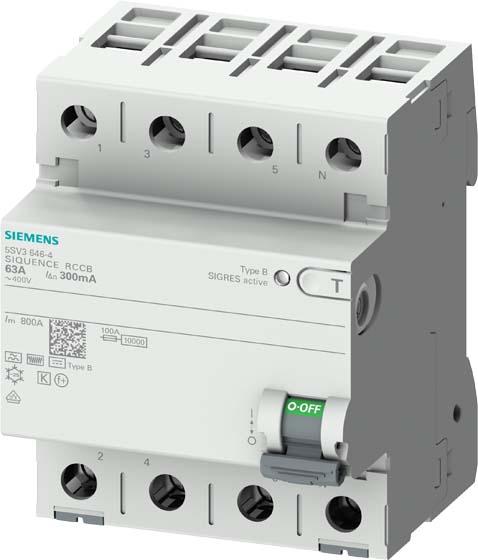

Siemens Digital Industry RCD Circuit Breaker 5SV3646-5

Manufacturer: Siemens Digital Industry
Designation: RCD Circuit Breaker Type B, 300 mA, 63 A
Type: 5SV3646-5
Number of Poles: 4
Rated Voltage: 400 V
Rated Current: 63 A
Rated Residual Current: 0.3 A
Mounting Type: DIN Rail
Residual Current Type: B
Selective Type: Yes
Time-Delayed Type: No
Short-Circuit Strength (Icw): 10 kA
Surge Current Strength: 5 kA
Voltage Type: AC
With Locking Mechanism: Yes
Frequency: 50/60 Hz
Additional Devices Possible: Yes
Protection Class (IP): IP20
Width in Modular Units: 4
Installation Depth: 70 mm
Ambient Temperature During Operation: -25 to 45 °C
Connectable Conductor Cross-Section Multi-Wire: 0.75 to 35 mm²
Connectable Conductor Cross-Section Single-Wire: 0.75 to 35 mm²
Explosion-Proof: No

Further Details: RCD Circuit Breaker, 4-pole, Type B, selective, In: 63 A, 300 mA, Un AC: 400 V. SENTRON 5SV3 RCD circuit breakers provide comprehensive protection for people and property against electric shock. The RCD circuit breakers ensure reliable safety during installation through the standard included gripping and touch protection. With the convenient slider manual operation, you can easily detach the RCD circuit breakers from the DIN rail or busbar assembly without tools. The data matrix code on the device provides quick access to all technical data in the Siemens Industry Online Support App. SENTRON protective switching devices can be expanded with a wide range of functions using the comprehensive accessories from the system construction kit. Optimal technology for your safety - exclusively from Siemens.
EAN: 4001869549224.
