Product details

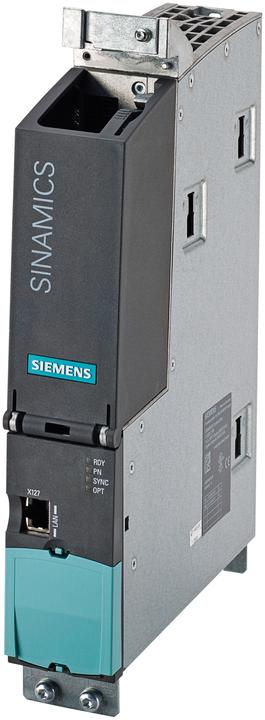

Siemens Digital Industry SINAMICS Control Unit 6SL3040-1MA01-0AA0
Manufacturer: Siemens Digital Industry
Designation: SINAMICS Control Unit CU320-2PN
Type: 6SL3040-1MA01-0AA0
Number of digital inputs: 12
Number of PROFINET interfaces: 2
Number of serial RS-232 hardware interfaces: 1
Protection class (IP): other
Height: 300 mm
Width: 50 mm
Depth: 226 mm
Additional details:
The SINAMICS Control Unit CU320-2 PN without CompactFlash Card controls single-axis drives with the SINAMICS S120 converter system. The CU320-2 Control Unit with PROFINET interface (without CompactFlash Card) controls the Power Module block size. The integrated DRIVE-CLiQ socket allows for the connection of DRIVE-CLiQ motors or Sensor Modules Cabinet-Mounted (SMC) to operate motors without DRIVE-CLiQ interface. The Basic Operator Panel (BOP20) allows for direct parameter changes on the device. For diagnostic purposes, the Basic Operator Panel can also be connected to the CU320-2 Control Unit during operation. Commissioning and diagnostics of the control unit are performed using the commissioning tool STARTER. A CompactFlash Card is available for the Control Unit, and a dust protection blind plug is available for the DRIVE-CLiQ port. SINAMICS - the comprehensive drive family for every application area.
EAN: 4042948660126.
Item number | 33670325 |
Manufacturer | Siemens |
Category | Frequency converters |
Manufacturer no. | 6SL30401MA010AA0 |
Release date | 17.5.2023 |
Type of inverter | U-inverter |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Width | 5 cm |
Depth | 22.60 cm |
Height | 30 cm |
