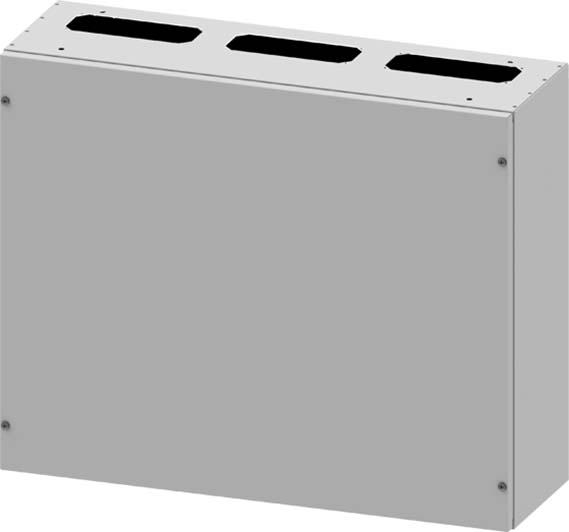

Siemens Digital Industry Cable Distribution Box 8GK1383-2KK33

Manufacturer: Siemens Digital Industry
Designation: Cable distribution box IP55, H650 x W800 x D250
Type: 8GK1383-2KK33
Mounting type: Surface-mounted
Cover type: Optional
Cover design: Without
Door type: Single
Rated current (In): 630 A
Height: 650 mm
Width: 800 mm
Depth: 250 mm
Installation depth: 250 mm
Material thickness of door/cover: 0.75 mm
Color: Gray
RAL number: 7035
Number of openings for flange plates: 3
Mounting option: Yes
Housing material: Steel
Surface protection: Powder-coated
With mounting plate: No
Suitable for outdoor use: No
Protection class (IP): IP55
Protection class (NEMA): Other
Protection class: I
Impact resistance: IK09
Function maintenance: None

Cable distribution box SK1, IP55 H=650 mm, W=800 mm, D=250 mm with screwed front panel without longitudinal beams RAL 7035. The ALPHA installation distribution systems are a complete system of wall and floor-mounted distributors for the installation of devices up to 1250 A. The ALPHA distribution systems are tested according to IEC 61439 and are based on a common platform structure with extensive versions up to 1250 A. Due to the platform structure and modular design, device-specific installation kits can be integrated into various distribution variants, facilitating planning and installation. The configuration is done individually and project-specific. The SIMARIS configuration software supports from planning to documentation of the power distribution and installation distribution systems. ALPHA - the system concept matters.
