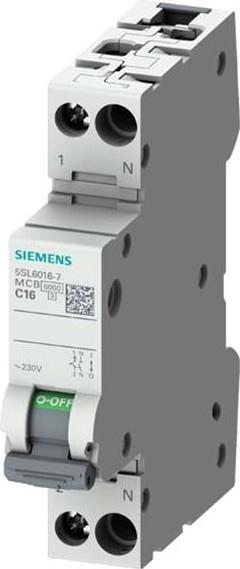

Siemens Digital Industrial Circuit Breaker 5SL6016-7

Manufacturer: Siemens Digital Industrial Protection
Designation: Circuit Breaker 230V 6kA 1+N-pole
Type: 5SL6016-7
Installation Depth: 70 mm
Tripping Characteristic: C
Total Number of Poles: 2
Number of Protected Poles: 1
Rated Current: 16 A
Rated Voltage: 230 V
Rated Insulation Voltage Ui: 250 V
Rated Impulse Voltage Uimp: 4 kV
Rated Switching Capacity Icn according to EN 60898 at 230 V: 6 kA
Voltage Type: AC
Rated Switching Capacity Icn according to EN 60898 at 400 V: 6 kA
Frequency: 50 Hz
Energy Limitation Class: 3
Flush Mounting: No
Switching Neutral Conductor: Yes
Overvoltage Category: 3
Degree of Pollution: 2
Additional Devices Possible: Yes
Width in Division Units: 1
Protection Class (IP): IP20
Ambient Temperature During Operation: -25 to 60 °C
Connectable Conductor Cross-Section Multi-stranded: 0.75 to 16 mm²
Connectable Conductor Cross-Section Single-stranded: 0.75 to 16 mm²
Explosion-Proof: No

The SENTRON 5SL circuit breaker provides reliable short-circuit and overload protection for standard applications in residential and commercial buildings. The tool-free installation and removal of the device, along with the easy wiring of the supply through the rear busbar, make installation straightforward. The 5SL circuit breakers are available in various designs, including 1-, 2-, 3-, 4-, as well as 1+N and 3+N-pole variants and other special types. The extensive accessories, such as auxiliary switches, allow for a wide range of functional expansions. Simply safe with SENTRON protection devices.

EAN: 4001869533940.
