Siemens Combination meter A/Q/Hz/Imp/V/P 7KM4211-1BB00-3AA0

Currently out of stock
Free shipping starting at 30,–

Product details

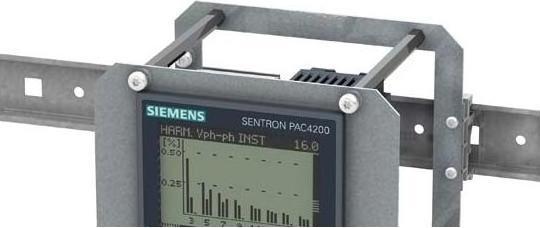

SENTRON measuring device 7KM PAC4200 with DIN rail adapter and LCD. L-L: 500 V, L-N: 289 V, 5 A, 3-phase, Modbus TCP, optional Modbus RTU, PROFINET, PROFIBUS, DI/DO. Apparent, active, reactive power, cos phi, harmonics: 3rd - 31st, THD, Class 0.2 according to IEC61557-12 or Class 0.2S according to IEC62053-22. Low voltage power supply, DC, screw connection.

The SENTRON 7KM PAC4200 network quality measuring device accurately captures all important electrical measurements in energy distribution for assessing system conditions and network quality in the process and manufacturing industries, as well as in critical infrastructures such as hospitals and data centers.

The 7KM PAC4200 network analysis measuring device provides comprehensive information about your electrical installation and energy distribution, as well as key measurements for evaluating system conditions and network quality. Thanks to a variety of communication options, the device can be easily integrated into higher-level automation and energy management systems via Modbus TCP, PROFINET, PROFIBUS, and Modbus RTU.

With additional modules, further digital inputs and outputs, analog inputs, direct measurement of the neutral conductor, residual current measurement, or RS485 gateway functionality can be implemented. The 7KM PAC measuring devices are available in various versions to meet your requirements. SENTRON PAC - specialists in measurement data acquisition.

Key specifications

measurement module
Volts
Maximum current
5 A
mounting style
Top-hat rail
Nominal voltage
60 V
Item number
33636630

General information

Manufacturer
Siemens
Category
Energy monitors
Manufacturer no.
7KM42111BB003AA0
Release date
17.5.2023
External links

Energy meter property

Functionalities
Electricity tariff adjustable
mounting style
Top-hat rail
measurement module
Volts
Maximum current
5 A
Nominal voltage
60 V
Display type
Digital

Safety

Protection type (IP code)
IP65

Origin

Country of origin
Hungary

Sustainability

Manufacturer commitment
RE100SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Product dimensions

Height
96 mm
Length
160 mm
Width
82 mm
Weight
750 g
