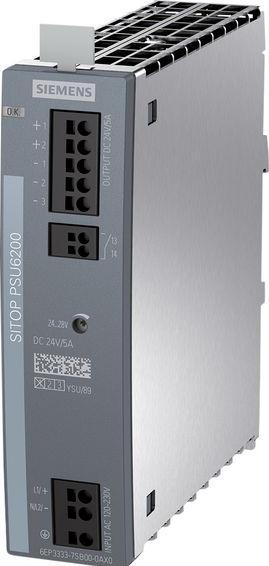

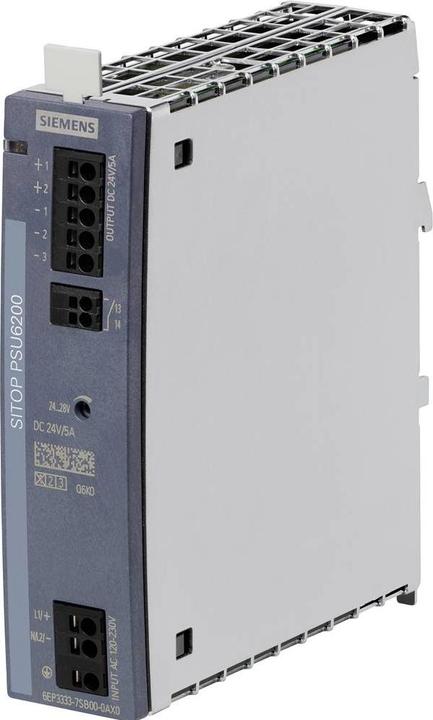

Siemens Digital Industry SITOP PSU6200 6EP3333-7SB00-0AX0

Manufacturer: Siemens Digital Industry
Designation: SITOP PSU6200 24V/5A
Type: 6EP3333-7SB00-0AX0
Supply Voltage Type: AC/DC
Output Voltage: 24 V
Max. Output Current: 5 A
Adjustable Output Voltage: yes
Nominal Output Voltage: 24 V
Nominal Output Current: 5 A
Short-Circuit Proof: yes
Rated Supply Voltage at AC 50 Hz: 240 V
Rated Supply Voltage at AC 60 Hz: 120 V
Rated Supply Voltage at DC: 120..240 V
Regulated Output Voltage: yes
Power Output: 120 W
Stabilized: yes
Electrical Connection Type: Spring Terminal Connection
DIN Rail Mounting Possible: yes
Wall Mounting Possible: no
Suitable for Rail Installation: yes
Installation Width: 35 mm
Installation Height: 225 mm
Direct Mounting Possible: no
Width: 35 mm
Height: 135 mm
Depth: 125 mm
Protection Class (IP): IP20

Additional Details:
SITOP PSU6200 24 V/5 A
Regulated Power Supply
Input: AC 120 - 230 V (DC 120 - 240 V)
Output: DC 24 V/5 A

The single-phase SITOP PSU6200 are technology power supplies for demanding solutions, offering maximum functionality for use in complex systems and machines. The wide-range input allows connection to any network in the world and ensures high safety even with significant voltage fluctuations. The Extra-Power provides up to 150% of the nominal current for short periods. In overload conditions, the PSU6200 delivers constant current up to a voltage of 15 V DC. The very high efficiency keeps energy consumption and heat generation in the control cabinet low, and the compact metal housing also saves space. To further increase the availability of 24 V, the SITOP PSU6200 power supplies can be combined with buffer, DC UPS, redundancy, and selectivity modules. No matter the industry, no matter the requirement - Siemens offers reliable and efficient power supplies for every system.

EAN: 4025515155164.
