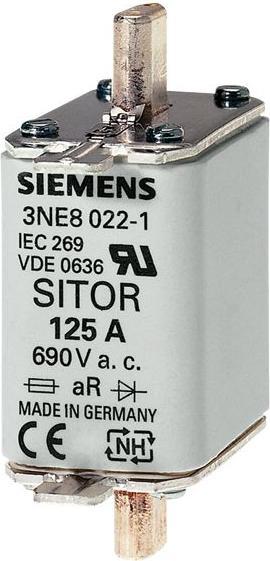

Siemens HLS-FUSE INLAY 125A 690V

NH-DIN fuse, 125 A, Superträge
Price in EUR including VAT
Ratings
Delivered between Tue, 15.7. and Thu, 17.7.
Only 2 pieces in stock at supplier
free shipping

Product details

Fuse standard: DIN 43620, IEC 60269-2-1, VDE 0636
Fuse size: 00
Current: 125A
Operating voltage: 690V AC
High breaking capacity: Yes
Total length: 79mm
Designation plate width: 6mm
Housing height: 48mm
Housing width: 30mm
Housing length: 53mm
Application category: gR - gS
Fuse type: HLS

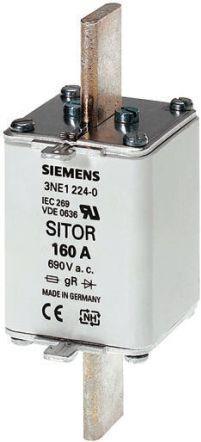

IEC 60269-2 SITOR fuses, 3NE1 series, size 00, type gS. Semiconductor protection fuses, utilization category gS with flat ribbon contacts for installation in NH fuse bases or load switches. NH fuse links from SITOR have been developed for overload and short-circuit protection of cables, wires, and busbars as well as for semiconductor protection.

Key specifications

Item number
10314482

General information

Manufacturer
Siemens
Category
Fuses
Manufacturer no.
3NE1022-0
Release date
15.1.2019
External links
Manufacturer's site (de)

Colour

Colour
Multicoloured
Exact colour description
multicolour

Backup Features

Fuse type
NH-DIN fuse
Tripping characteristic
Superträge
Nominal current
125 A
breaking capacity
100000 A
Nominal voltage
690 V
voltage type
AC/DC

Origin

Country of origin
Greece

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
90 mm
Length
105 mm
Height
70 mm
