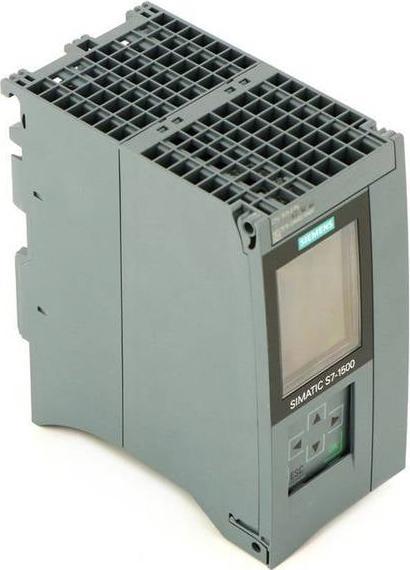

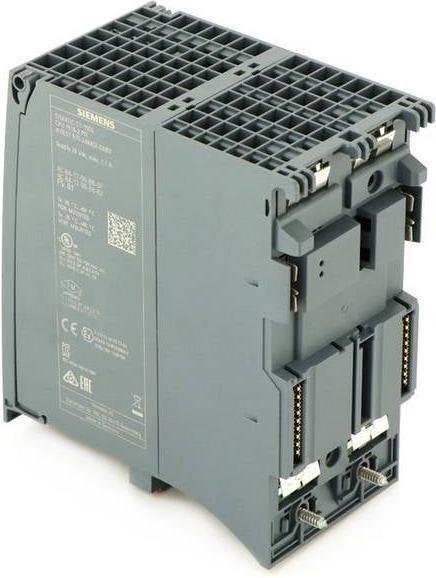

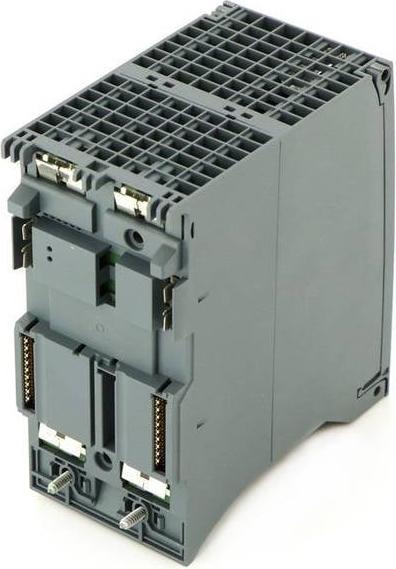

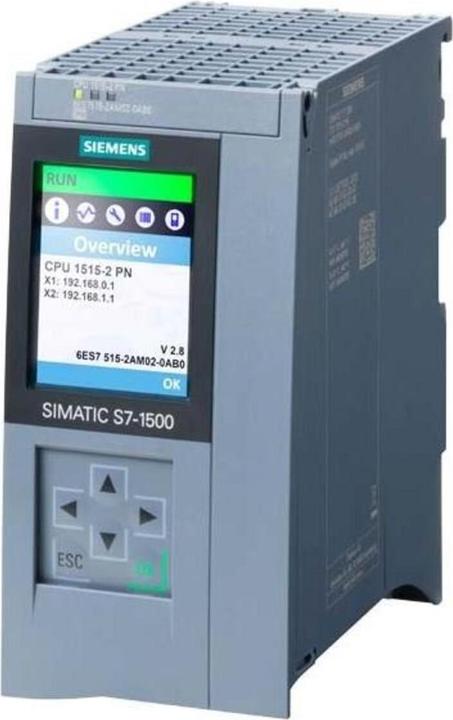

SIMATIC S7-1500, CPU 1515-2 PN, central unit with 500 KB of memory for programs and 3 MB for data. 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 30 ns bit performance. A SIMATIC memory card is required.

The Advanced Controller SIMATIC® S7-1500 sets standards in terms of system performance and usability. The seamless integration of the SIMATIC S7-1500 controller into the Totally Integrated Automation Portal (TIA Portal) offers advantages such as shared data storage, a unified operating concept, and central services. This makes the use of cross-functional features particularly easy. With its fast system response times, the controller quickly enhances productivity, providing you with more flexibility and a shorter time to market.

Various CPU variants of the SIMATIC S7-1500 are available in several performance classes. The portfolio includes standard CPUs, some with the capability to integrate C/C++ code. In the compact CPUs, digital and analog I/Os are integrated, and counting inputs and pulse outputs can be directly processed on the CPU. With fail-safe CPUs, standard and safety programs can be executed on the same controller. The technology CPUs expand the motion control functions available in all SIMATIC S7-1500 controllers for demanding solutions. The Advanced Controller SIMATIC S7-1500 is designed using the SIMATIC STEP 7 Professional software.
