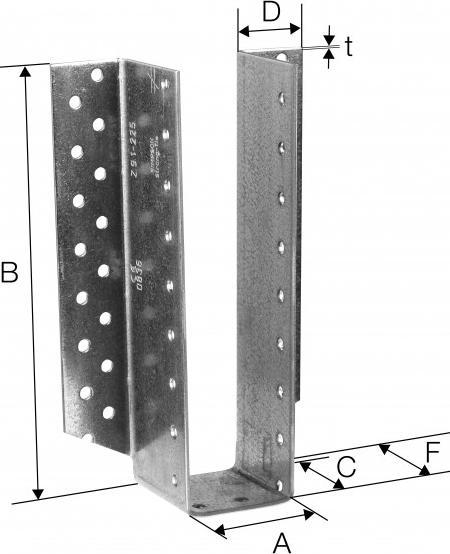

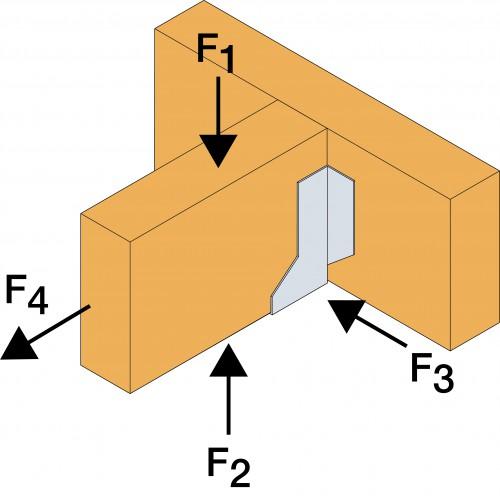

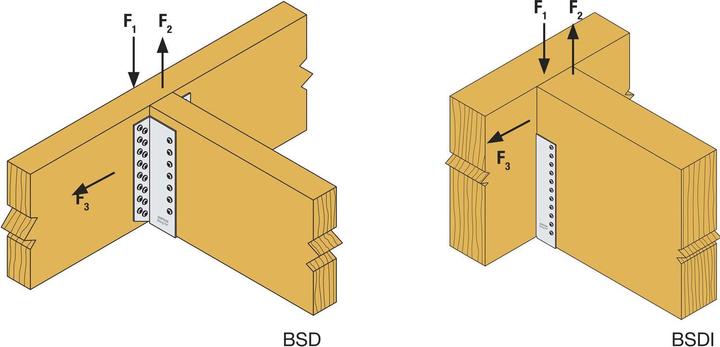

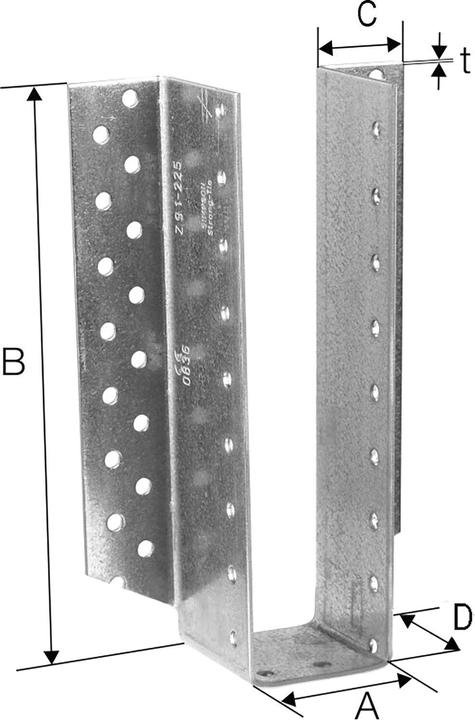

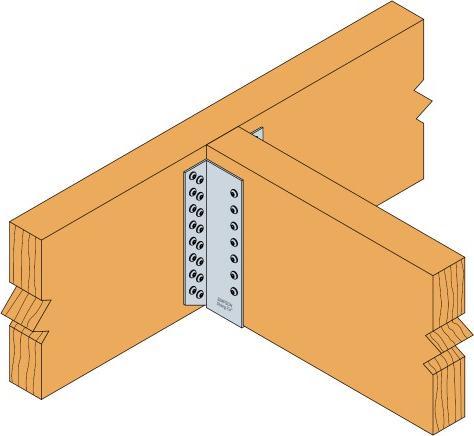

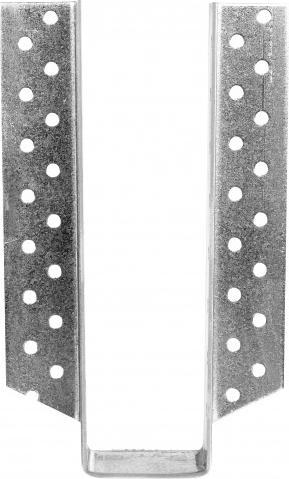

Application: Connection of secondary beams made of wood or wood-based materials to main beams or columns made of wood, concrete, or steel. Also suitable for biaxial loads. Holes up to 13 mm can be made for fixing concrete or steel connections; the position, number, and diameter of the bolt holes can be selected according to requirements. Fastening: CNA 4.0 x 60 mm comb nails or CSA 5.0 x 60 mm screws/anchor bolts or concrete screws. Sheet thicknesses of 2.5 and 3.0 mm are also permitted (customized production). With European Technical Assessment (ETA 06/0270). Note: Special dimensions available on request. Legend: Char. Part. = Characteristic value of the load-bearing capacity towards the base plate with partial nailing. Char. Full. = Characteristic value of the load-bearing capacity towards the base plate with full nailing. Values apply when using CNA 4.0 x 60. A (mm): 160, C (mm): 30, D (mm): 52, Shape: BSDB (mm): 160, Number of holes ø 5 (ST): 42, Material: Steel, Surface: Hot-dip galvanized, Material thickness (mm): 2, Char. Value full (kN): 37.8, Char. Value Partial (kN): 21, CNA-Comb nails (mm): 60, Size (mm): 160 x 160, Designation: Beam shoe, Type: BSDB, Brand: Simpson, Content specification (ST): 1.
