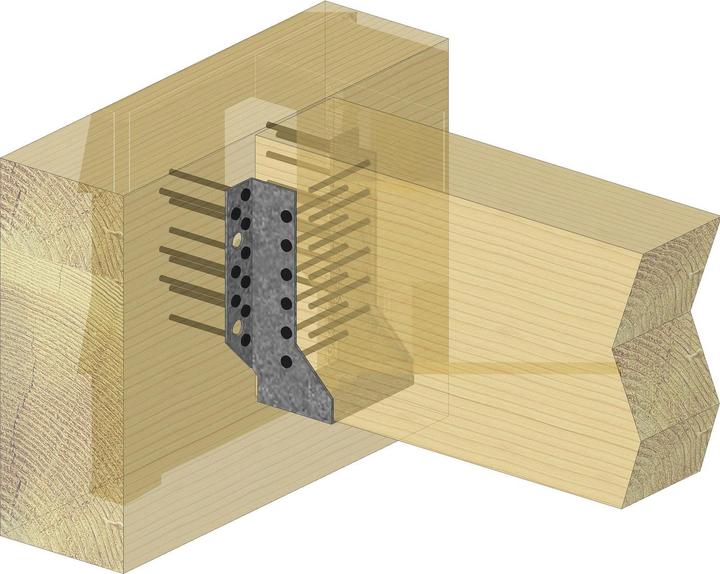

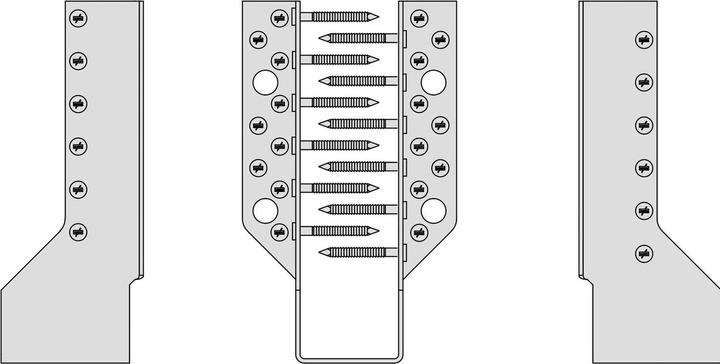

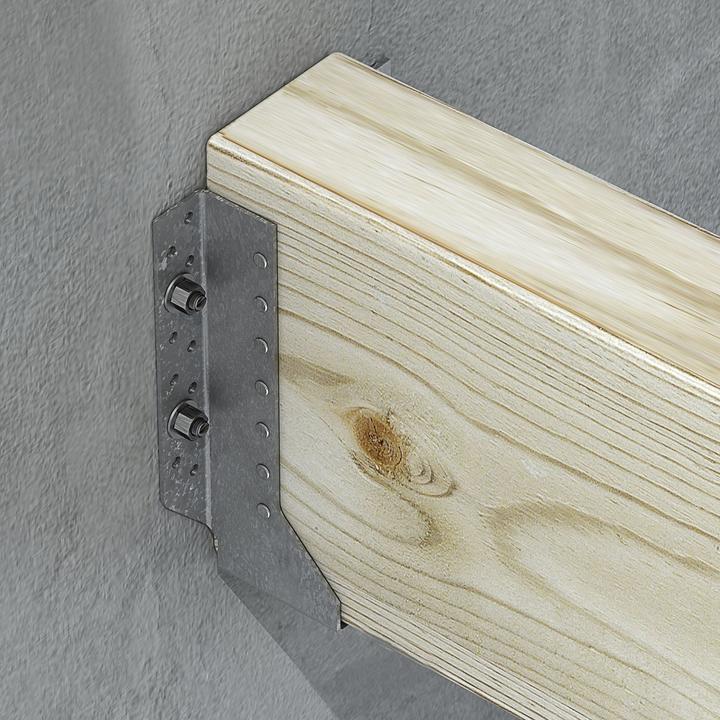

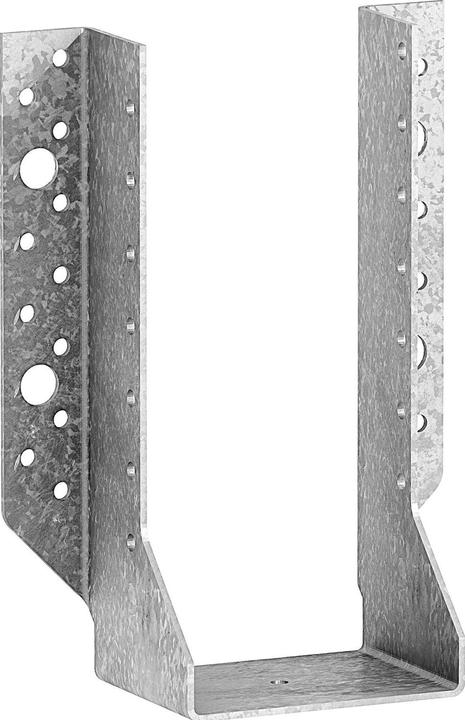

Application: Connection of secondary beams made of wood or wood-based materials to main beams or supports made of wood, concrete, or steel. Also suitable for two-axis loading. Fastening: Comb nails CNA 4.0 x l or screws CSA 5.0 x l / anchor bolts or concrete screws ø 10 mm in concrete/steel. Product advantages: CE marking, versatile wood/concrete connections, loadable in two axis directions, reduced number of nails with nearly the same load capacity, batch number printed on each product, staggered nail arrangement in the secondary beam, additionally loadable in tension, uniform bolt hole diameters, bolt holes set deeper, with European Technical Assessment (ETA 06/0270). Legend: Char. Part. = characteristic value of load capacity towards the base plate with partial nailing. Char. Full. = characteristic value of load capacity towards the base plate with full nailing. Values apply for: BSN with A ≤ 48 mm: with CNA 4.0 x 40, BSN with A 51 mm: with CNA 4.0 x 50, BSN with A > 60 mm: with CNA 4.0 x 60. B (mm): 100, Char. Value Part. (kN): 12.9, Material thickness (mm): 2, F (mm): 64, A (mm): 100, Material: Steel, Size (mm): 100 x 100, Shape: BSN, Surface: hot-dip galvanized, D (mm): 27, Char. Value Full. (kN): 18.4, CNA comb nails (mm): 60, Number of holes ø 11 (pcs): 2, C (mm): 60, Number of holes ø 5 (pcs): 22, Brand: Simpson, Description: Beam shoe, Type: BSN, Quantity (pcs): 1.
