Spelsberg AK 42

Price in EUR including VAT
Delivered between Wed, 2.7. and Fri, 4.7.
More than 10 pieces in stock at supplier
free shipping

Product details

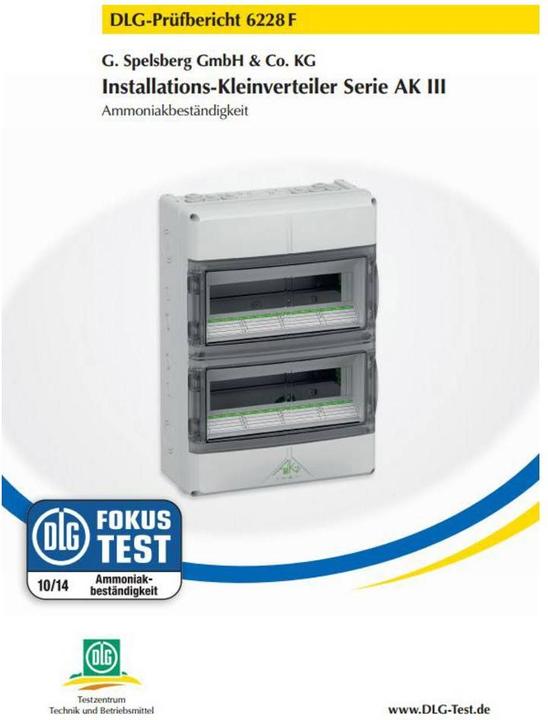

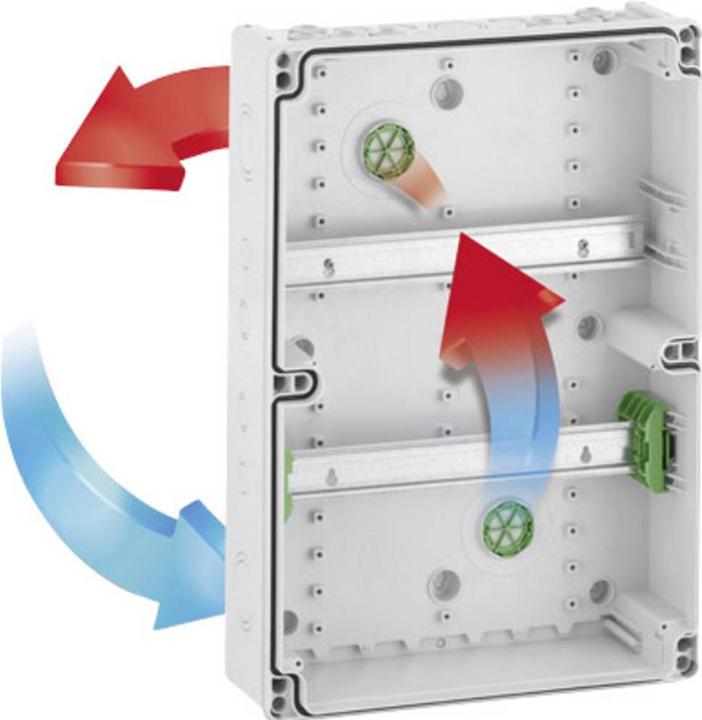

Small distribution board, with degree of protection IP65, 3-row, 42 available partition units, with integrated ventilation elements to reduce condensation, rated operating voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, certified by VDE (DIN EN 60670-1/-24 (VDE 0606-1/-24)), UL-EU (EN 62208), UL-EU (EN 61439-1/-2), UL-EU (EN 61439-1/-3), UL-EU (EN 61439-1 & EN IEC 61439-7), DLG (ammonia resistance), top and bottom metric knockoutsfor universal cable entries with cable glands and / or double membrane glands, pre-equipped with DMS M20 elastic entries at the top, for installation in industrial environments and in protected outdoor areas. PE/N terminal, consisting of: PE terminal strip with 6 screw terminals 2.5-16mm² and 21 push-in terminals 0.75-4mm², 4 N modules (connected with jumper), each with 2 screw terminals 2.5-16mm² and 6 push-in terminals 0.75-4mm² with operating lever for releasing the conductors without tools. Accessories included: Double membrane sockets: 2x M16, 10x M20, 4x M25, 2x M32, 2x M40, sealing plugs, cover and labelling strips.

Key specifications

Distribution cabinet type
Small distribution board
mounting style
Finery
Length
15.50 cm
Width
31.50 cm
Height
60 cm
Item number
13052584

General information

Manufacturer
Spelsberg
Category
Electrical enclosures
Manufacturer no.
73344201
Release date
7.4.2020
Sales rank in Category Electrical enclosures
2 of 1074
External links

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Plastic
Material
Plastic

Control cabinet properties

Distribution cabinet type
Small distribution board
mounting style
Finery
Protection type (IP code)
IP65

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
15.50 cm
Width
31.50 cm
Height
60 cm
Weight
5450 g

Package dimensions

Length
61 cm
Width
33 cm
Height
18 cm
Weight
4.97 kg
