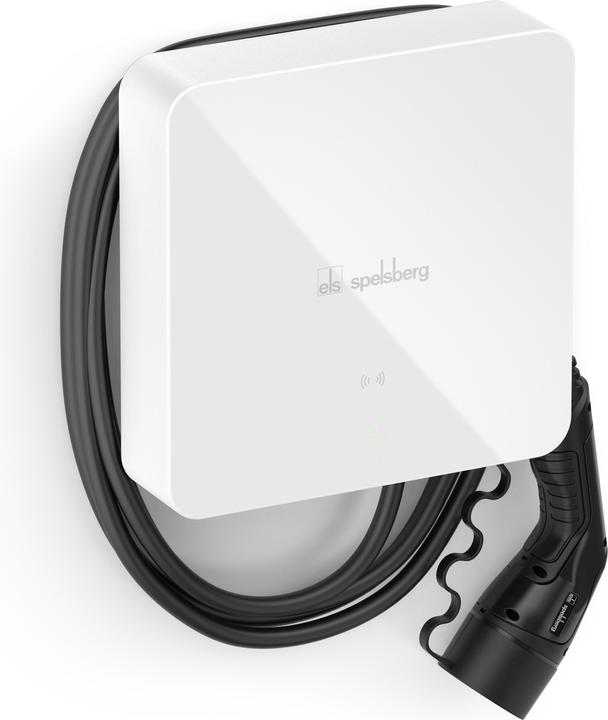

Wallbox for fast and smart charging of electric vehicles in the private sector, charging power up to 11 kW (3-phase) / 3.7 kW (1-phase) and a maximum charging current of 16 A. Charging power is variably adjustable, with integrated DC residual current detection for DC residual currents of 6 mA and temperature monitoring for a safe charging process. It features a stylish design and compact housing dimensions for wall and pedestal mounting, protection class IP54, maximum connection cross-section supply terminal of 6², impact resistance IK08, and protection class II.

Easy installation, quick configuration, and firmware updates are available with the free Spelsberg Wallbox App (compatible with iOS from version 14 and Android from version 6).

Integrated MID meter for consumption billing, dynamic phase-individual load management with shift grid recognition for efficient use of the available power, and connection to home energy management systems (HEMS) and PV inverters for charging with solar energy. Contactless authorization of the charging process via RFID, Plug & Charge (ISO15118), or AutoCharge, with LED and acoustic signals for clear feedback of status changes and evaluation of comprehensive charging statistics.

Supported communication protocols and interfaces include USB, WLAN, Ethernet, Modbus TCP, EEBus, SMA SEMP, and OCPP-J 1.6 to connect external backends.

It comes with a connected 5m charging cable with type 2 coupling.

Dimensions: 293 x 293 x 110 mm.

Included accessories: 3 RFID chips, 4 fixing screws M6x60, 4 universal dowels 8x50, 3 strain gauges M16, 1 strain gauge M25, 1 strain gauge M32, and 5 chips to open the design cover.
