Technical data

Output current (TIG / MMA / CUT): 10-200 A (TIG / MMA) / 20-50 A (CUT)
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max) (TIG / MMA / CUT): 31.5 / 42.3 / 37.5 A
Maximum effective mains current (I1eff) (TIG / MMA / CUT): 12.2 / 13.4 / 11.9 A
Air pressure: min. 4 bar
Air flow: min. 100 L / min
Weight: 7.5 kg
Dimensions L x W x H (mm): 420 x 180 x 290
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

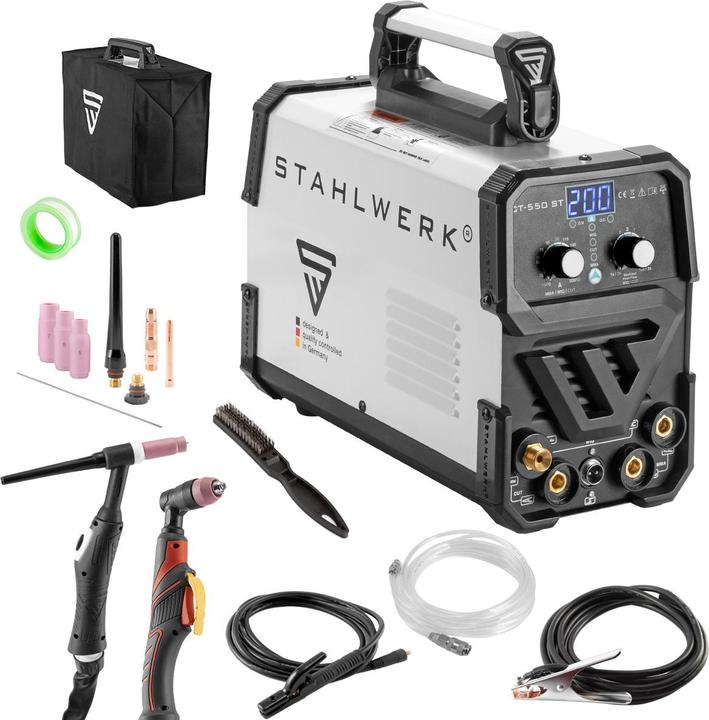

Scope of delivery

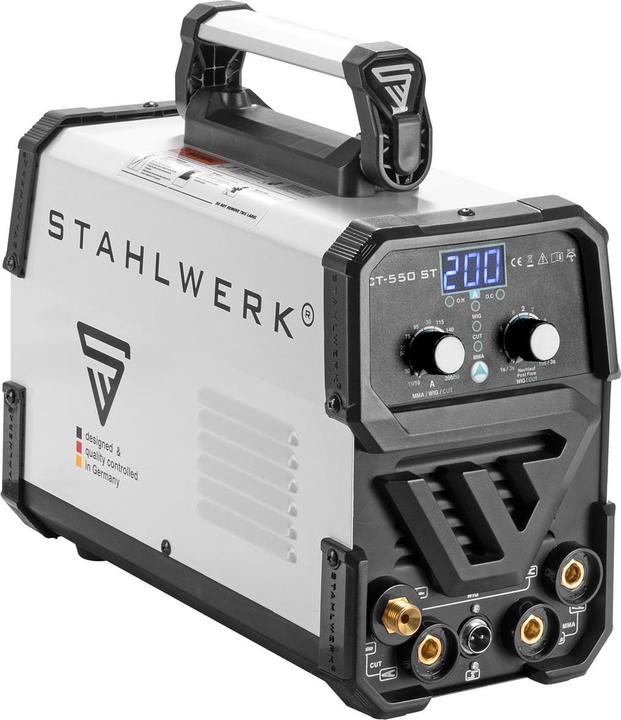

1 x STAHLWERK CT 550 ST IGBT welding machine.
1 x Professional TIG welding torch WP-26F / hose package 3 metres with flexible torch head and kink protection on the gas connection.
1 x TIG accessory set 8 pieces:

• 3 x gas nozzles sizes: 5, 6, 7
• 1 x clamping sleeve size 1.6
• 1 x clamping sleeve housing size 1.6
• 2 x burner caps - one short and one long
• 1 x universal tungsten electrode

* Pre-assembled accessories from the picture of the welding torch are part of the 8-piece set
1 x professional plasma hose package AG-60/SG-55 3 metres
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):

• 1 x plasma nozzle
• 1 x plasma electrode
• 1 x ceramic cap

1 x water separator with pressure gauge and snap-on quick couplings
1 x connecting hose with snap-on quick couplings from the device to the water separator, including 6-piece connection set
1 x 3 metre earth cable
1 x gas connection hose with quick-release coupling 5 metres
1 x electrode holder 3 metres
1 x protective cover
1 x wire brush
1 x Teflon tape.
