Properties

MMA electrode welding / ARC welding - a universal welding process. An electric arc melts the electrode to form the weld seam. No shielding gas is required and can therefore be used flexibly at any location.
With the WP-17V Universal Lift TIG torch, the welding machine can be expanded into a DC TIG welding machine.
IGBT technology - The latest and most modern transistor technology enables maximum performance and duty cycle at full power! No transformer, no MOSFET, state-of-the-art IGBT!

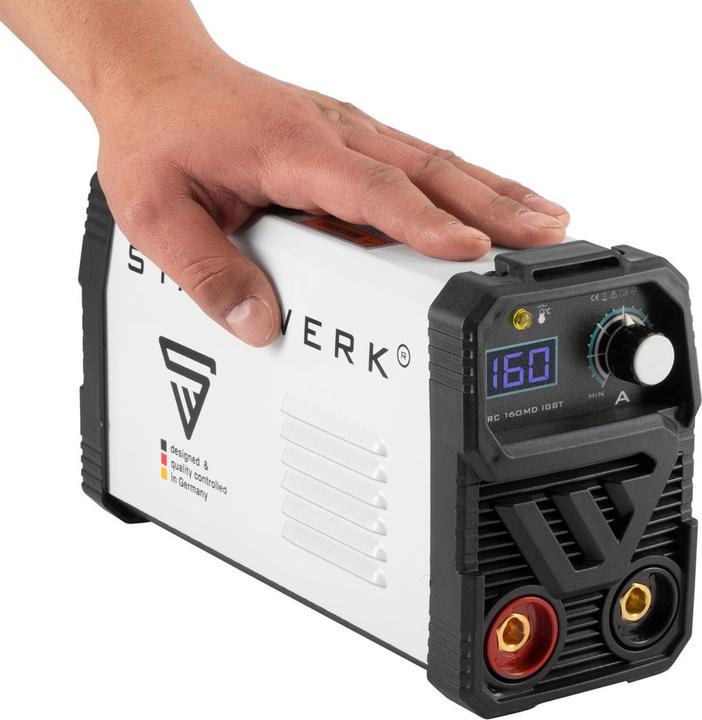

Lightweight & compact design - only 3 kg weight and dimensions of 245 x 100 x 160 mm. Innovative IGBT transistors save space and weight compared to the old MOSFET technology. No more heavy carrying!
Highest efficiency & performance - single-phase alternating current (230V) supplies the device and allows an output power of real 160 amps.

Technical data

Output current MMA: 30-160 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 31.5 A
Maximum effective mains current (I1eff): 10 A
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Dimensions (L x W x H): 245 x 100 x 160 mm
Weight: 3 kg
Certified by: TÜV Rheinland LGA Products GmbH

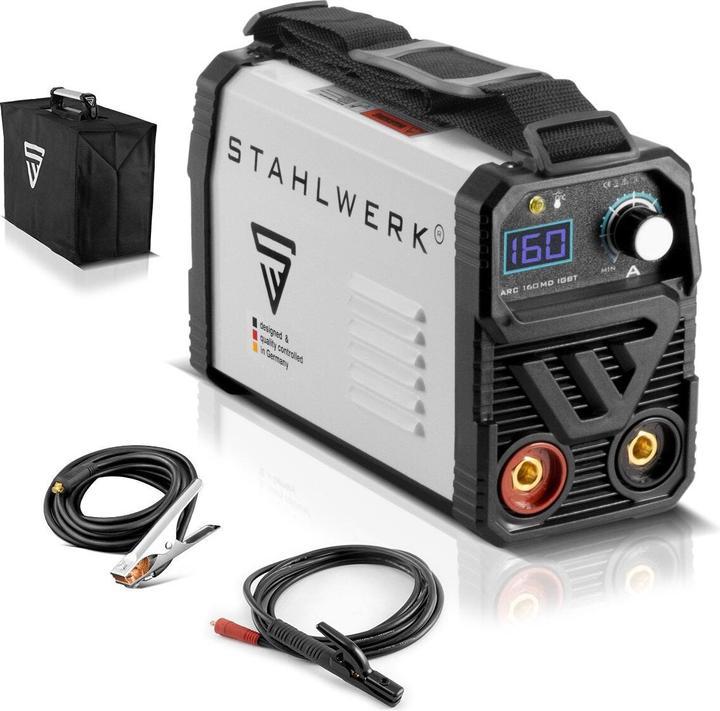

Scope of delivery

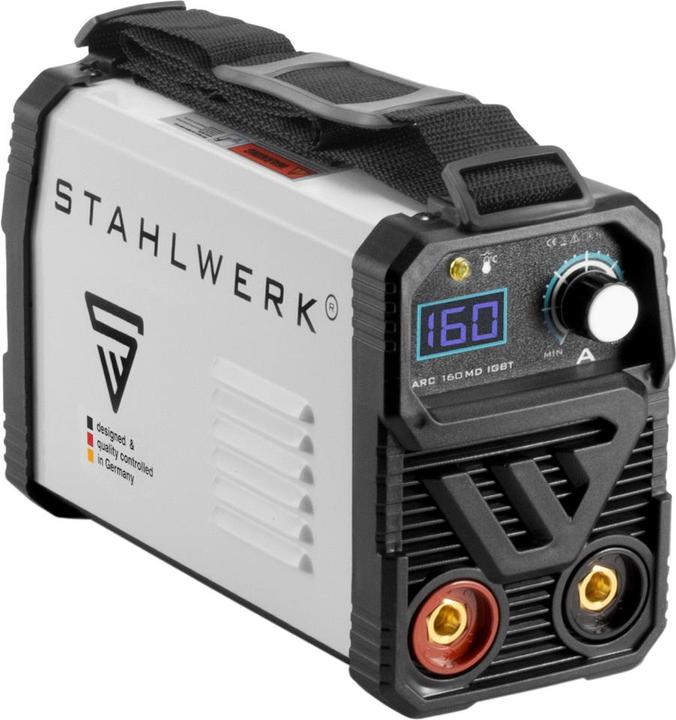

1 x Stahlwerk ARC 160 MD welding machine

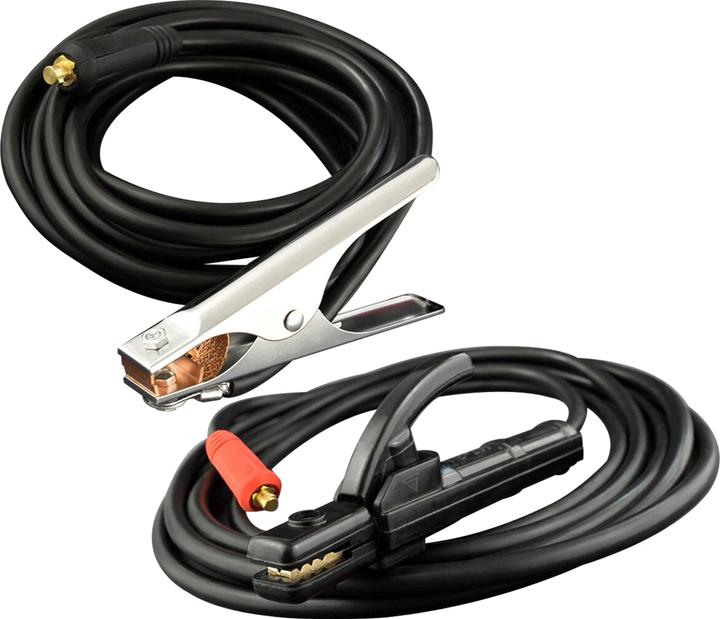

1 x earth cable 3 metres
1 x electrode holder 3 metres
1 x protective cover
