Properties

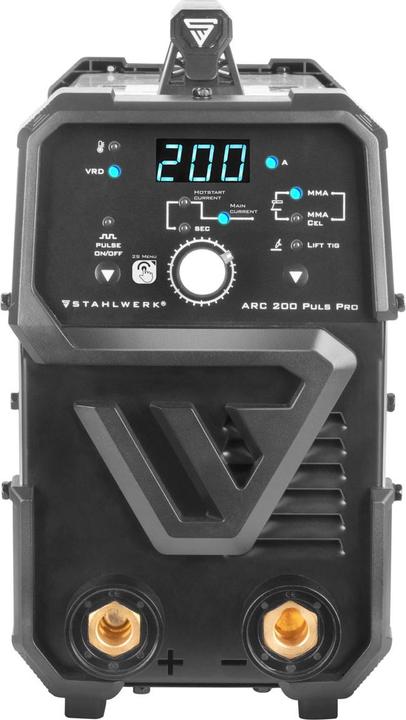

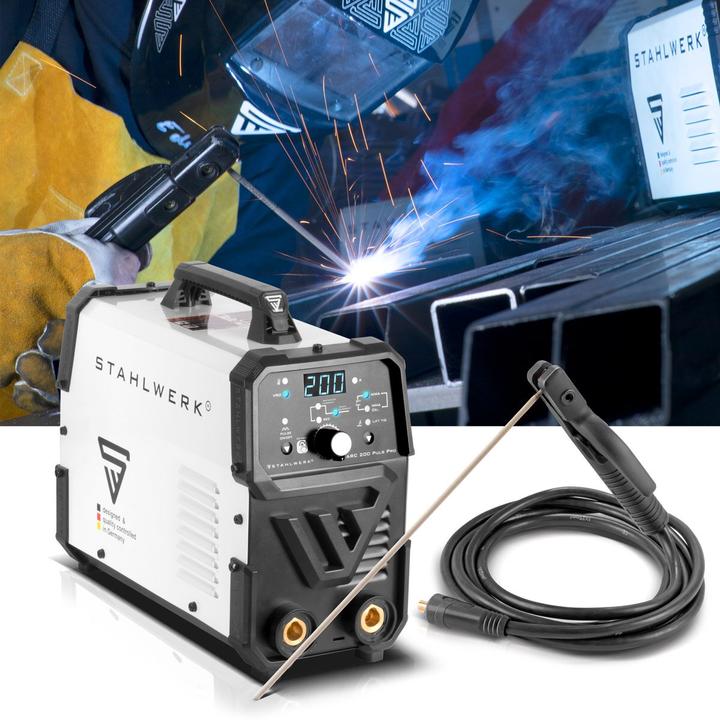

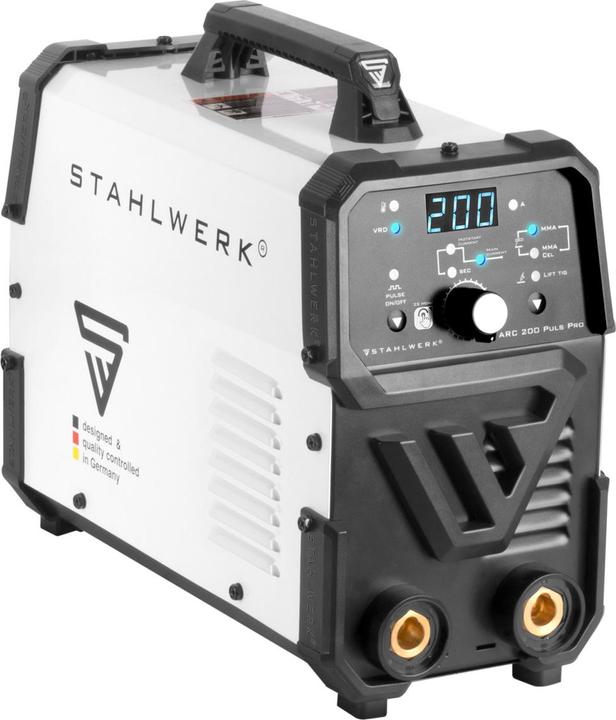

The Stahlwerk ARC 200 Puls Pro is a compact MMA / Lift-TIG welding machine with a genuine 200 amps.

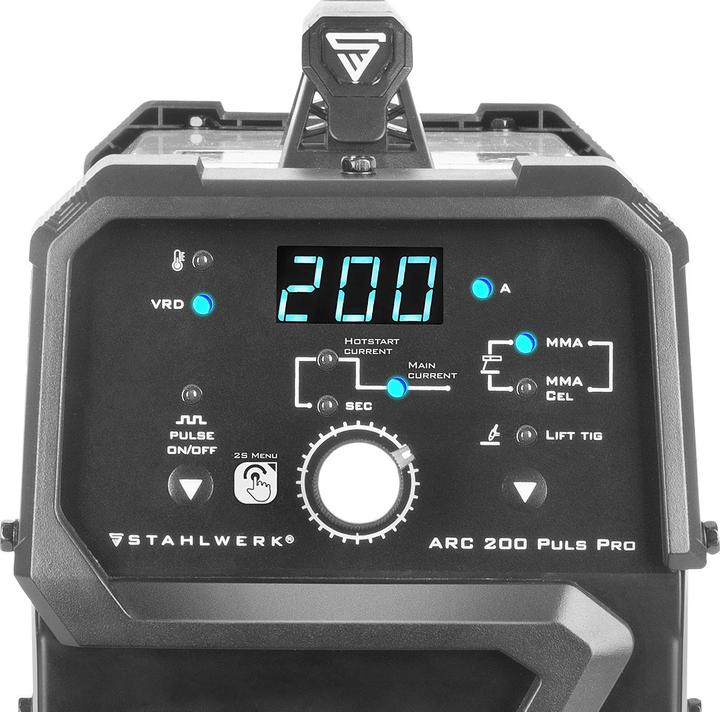

The device has an extensive pulse function in ARC and Lift-TIG mode, which prevents materials from burning through and significantly reduces deformation caused by heat. In this way, the inverter guarantees outstanding welding results. Another advantage is the intelligent temperature control, which switches the fan on and off only when required. State-of-the-art IGBT technology of the latest generation enables maximum performance in MMA and Lift-TIG welding. The ARC 200 Puls Pro has numerous adjustable functions such as Hot Start, Arc Force and Antistick, which prevent the welding electrode from burning or annealing and make welding easy. The individual settings can be clearly read on the digital display.

Technical data

Model: Stahlwerk ARC 200 Puls Pro welding machine
Output current MMA / Lift-TIG: 10 - 200 A
Duty cycle 40°C: 10% at 200 A / 100% at 63 A

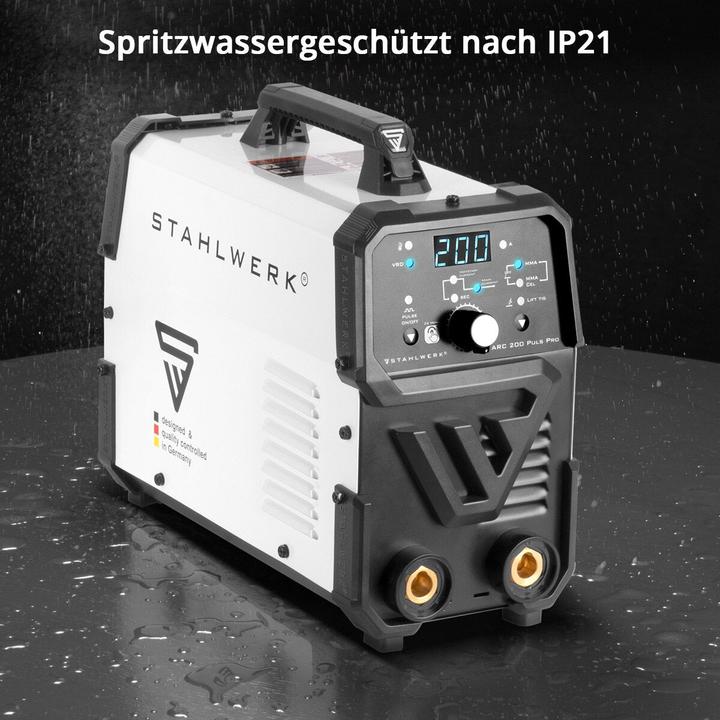

Protection class: IP21S
Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Weight: 5.4 kg
Dimensions (L x W x H): 330 x 150 x 276 mm

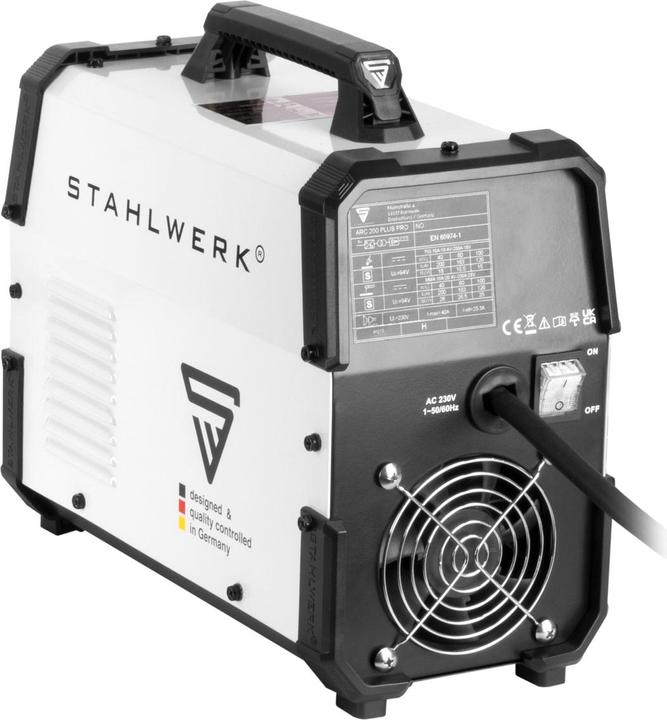

Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)
Certified by: SGS Standards Technical Services Co. Ltd.

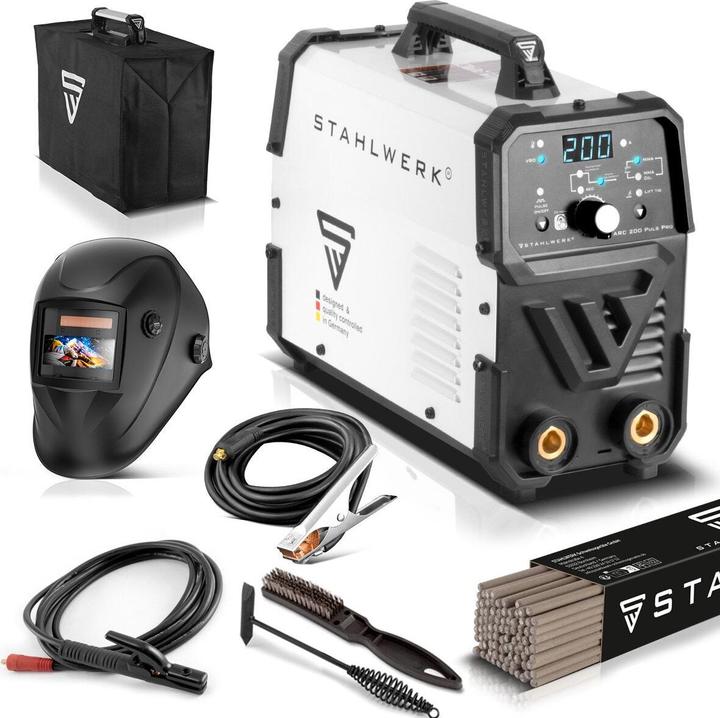

Scope of delivery

1 x Stahlwerk ARC 200 Pulse Pro welding machine
1 x electrode holder 3 m
1 x earth cable 3 m
1 kg stick electrodes (approx. 90 pcs.)
1 x protective cover
1 x WORKER 3-in-1 automatic welding helmet Welding shield
1 x slag hammer
1 x wire brush, plastic
