Technical data

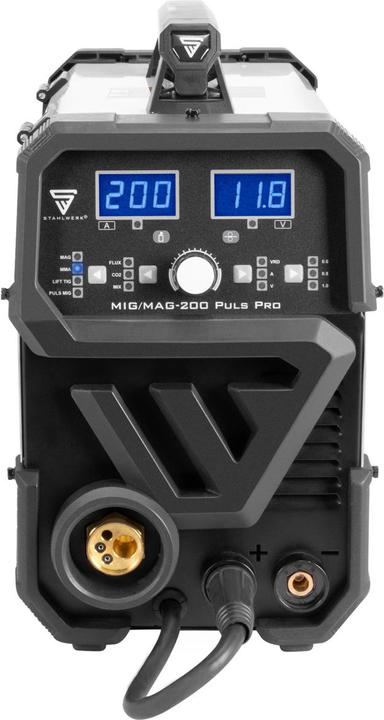

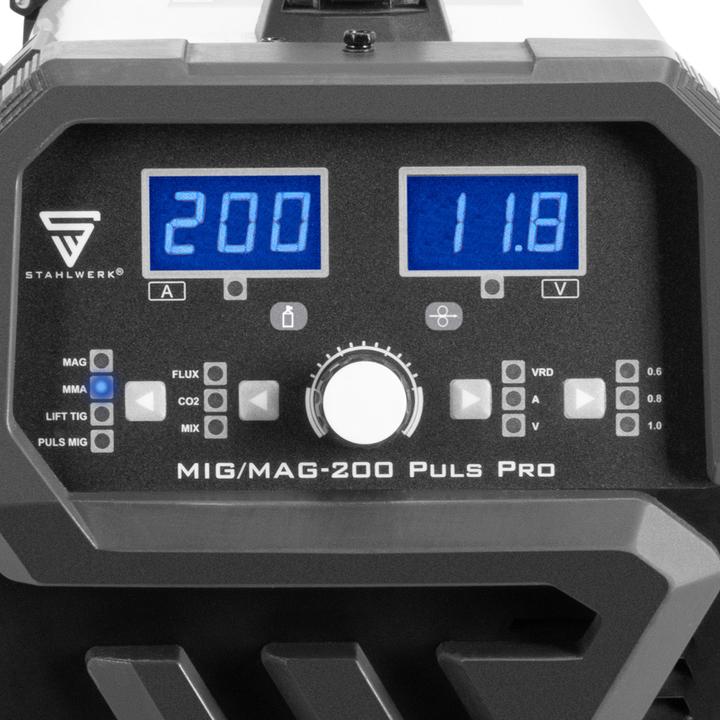

Model: MIG/MAG-200 Pulse Pro
Output current MIG/MAG (0.6 / 0.8 / 1.0): 20-100 A / 40-200 A / 50-200 A
Pulse MIG (1.0): 20-200 A
MMA/LIFT-TIG: 20-200 A
Duty cycle MIG / MMA / LIFT-TIG (40°C): 15% at 160 A / 100% at 77.5 A
Protection class: IP21S

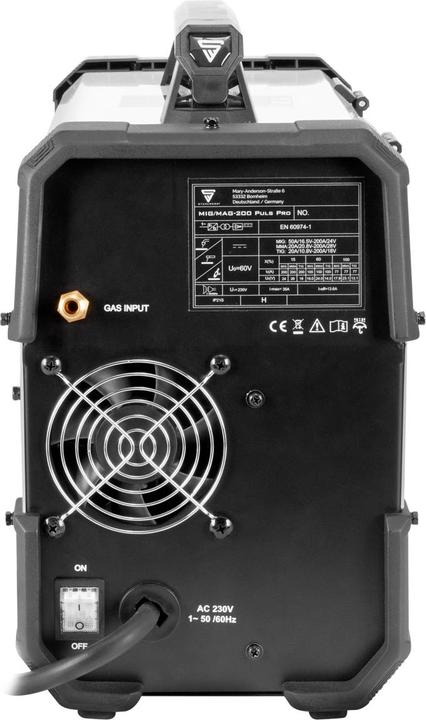

Mains voltage: 1 x 230 V AC
Mains frequency: 50/60 Hz
Maximum mains current (I1max) MIG / MMA / LIFT-TIG: 32 A / 38 A / 25 A
Maximum effective mains current (I1eff) MIG / MMA / LIFT-TIG: 12.4 A / 14.7 A / 9.7 A
Weight: 10.8 kg
Dimensions L x W x H (mm): 460 x 210 x 350
Mains connection: CEE 7/7 Schuko plug
Standards: IEC 60974-1; EN 60974-10 (Class A)

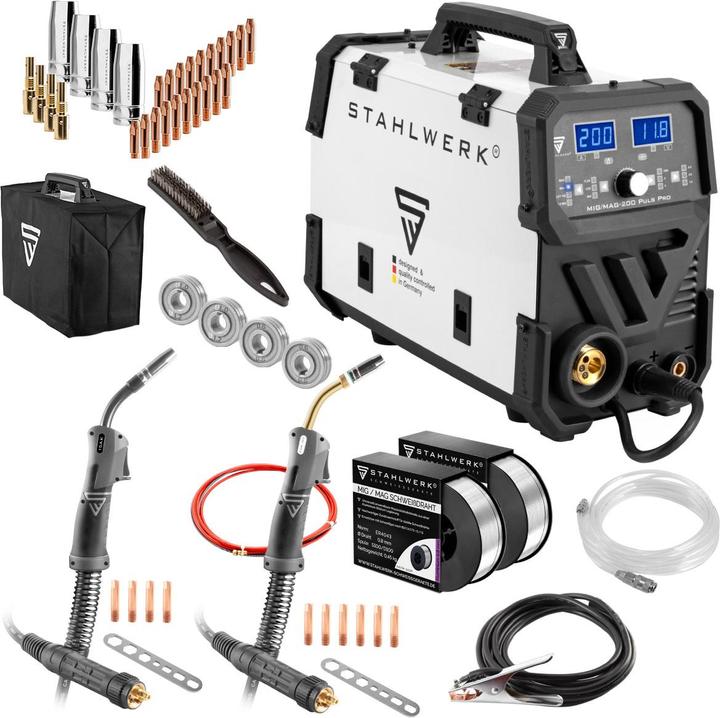

Scope of delivery

1 x STAHLWERK MIG/MAG 200 Puls Pro IGBT welding machine
1 x Professional MIG welding torch AK-15 / hose package 3 metres
1 x STAHLWERK MIG MAG welding torch AK25/MB25 for aluminium with 3 metre hose package and carbon core with Euro central connection
1 x MIG MAG wear parts set aluminium for AK25/MB25 welding torch
1 x M6 x 28 contact tip - ø 0.6 mm for steel
1 x contact tip M6 x 28 - ø 0.8 mm for steel
1 x contact tip M6 x 28 - ø 1.0 mm for steel
1 x contact tip M6 x 28 - ø 1.0 mm for aluminium
1 x contact tip M6 x 28 - ø 1.2 mm for aluminium
1 x earth cable 3 metres
2 x wire guide roller 0.8 mm & 1.0 mm with 'V' profile
2 x wire guide roll 0.6 mm & 0.8 mm with 'V' profile
2 x wire guide roller 1.0 mm & 1.2 mm with 'U' profile (for aluminium wire)
1 x wire brush
1 x gas connection hose with quick coupling 5 metres
1 x protective cover
2 x STAHLWERK MIG MAG aluminium welding wire ER4043 Si5 (ALSI-5) ø 0.8 mm 0.45 kg wire reel.
