Properties

Plasma: Conductive metals such as standard steel, copper, stainless steel, brass, aluminum, and titanium can be cut without problems. Cutting capacity up to 14 mm (depending on material): ST37 mild steel up to 14 mm, V2A or V4A up to 8 mm, aluminum up to 5 mm. CUT Pilot: Smooth-running HF pilot ignition, no contact necessary. IGBT technology advantages: Powerful, good forward behavior, high reverse voltage, and robustness.

Technical Data

Output current: 15-50 A
Protection class: IP21S
Mains voltage: 1 x 230 V AC (+-15%)
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 33 A
Maximum effective mains current (I1eff): 13.1 A
Weight: 8 kg

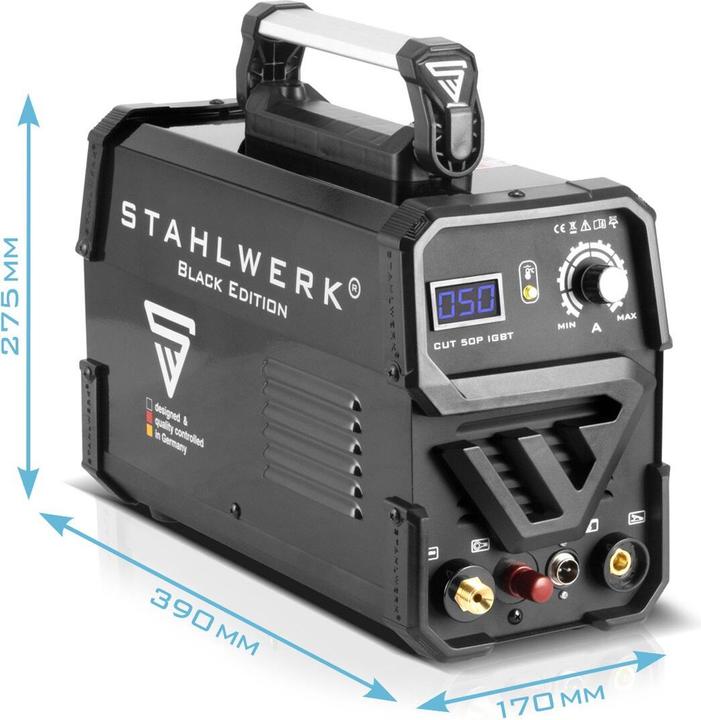

Dimensions L x W x H (mm): 390 x 170 x 275
Mains connection: CEE 7/7 Schuko plug
Air pressure: 3.5 - 4 bar
Air flow: Minimum 100 L/min
Standards: IEC 60974-1; EN 60974-10 (Class A)

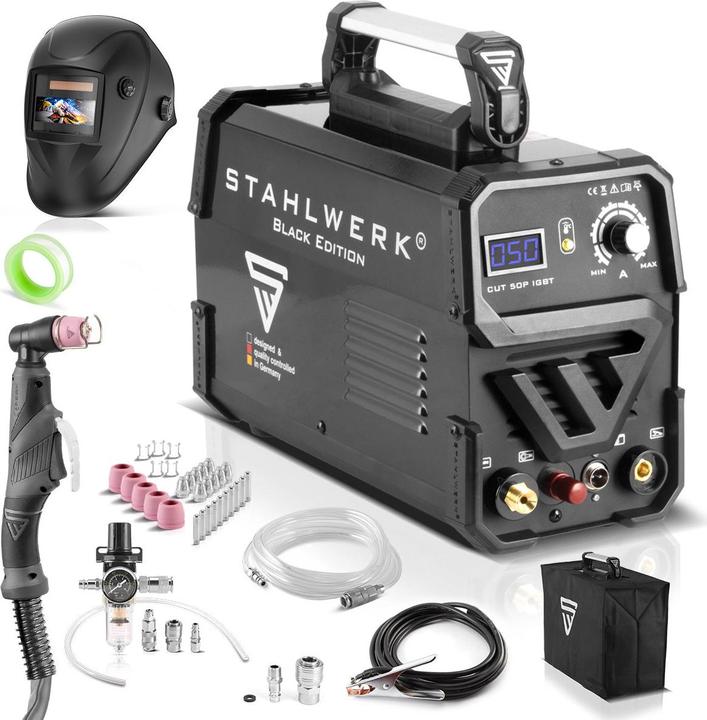

Scope of delivery

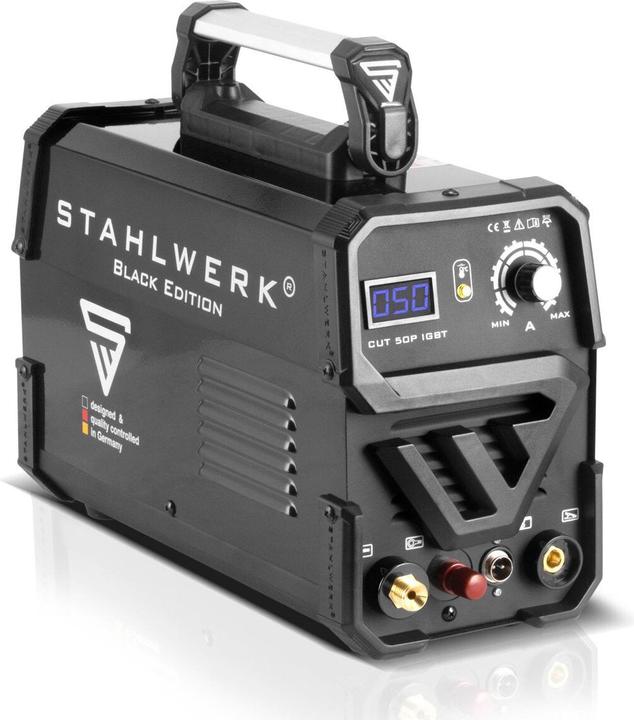

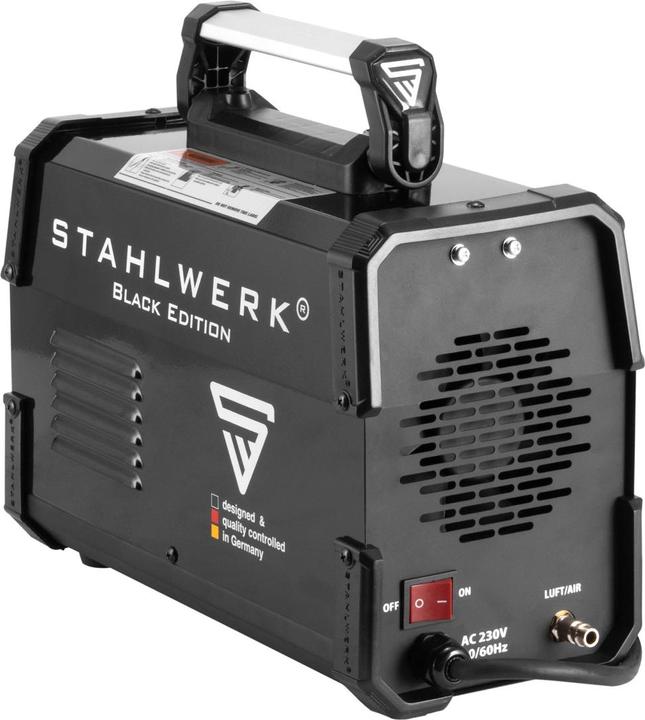

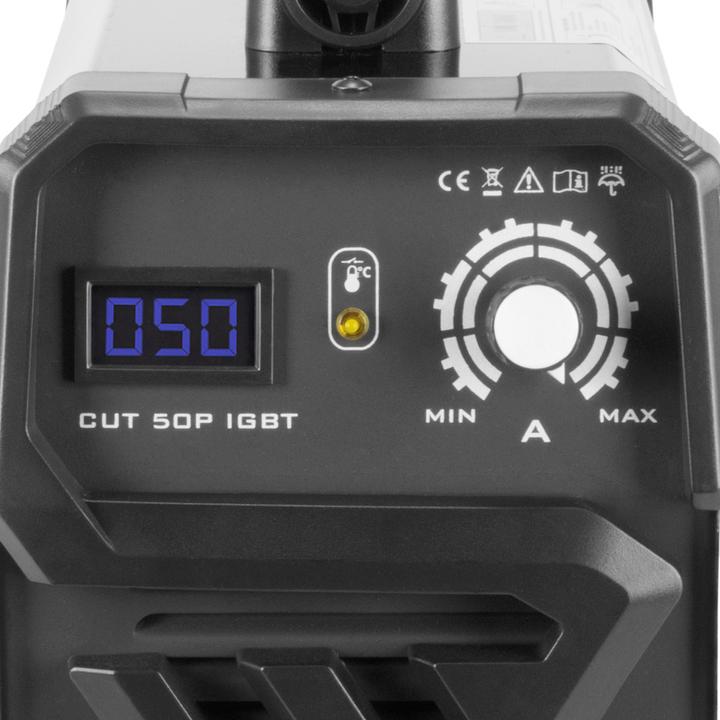

1 x STAHLWERK CUT 50 P plasma cutter

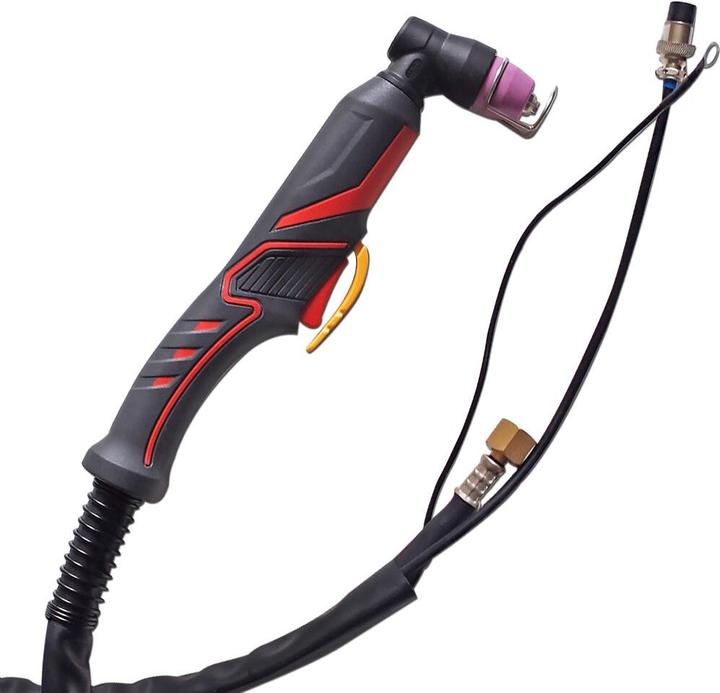

1 x Professional plasma hose package P-60, 3 metres
1 x 4-piece plasma accessory set (already pre-assembled on the plasma torch):

• 1 x Plasma nozzle
• 1 x Plasma electrode
• 1 x Ceramic cap
• 1 x Spacer

1 x Earth cable, 3 metres

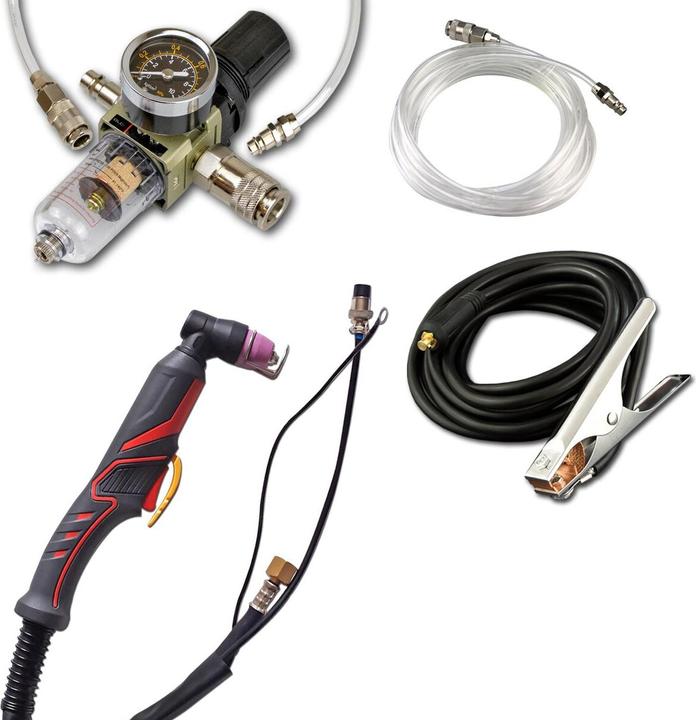

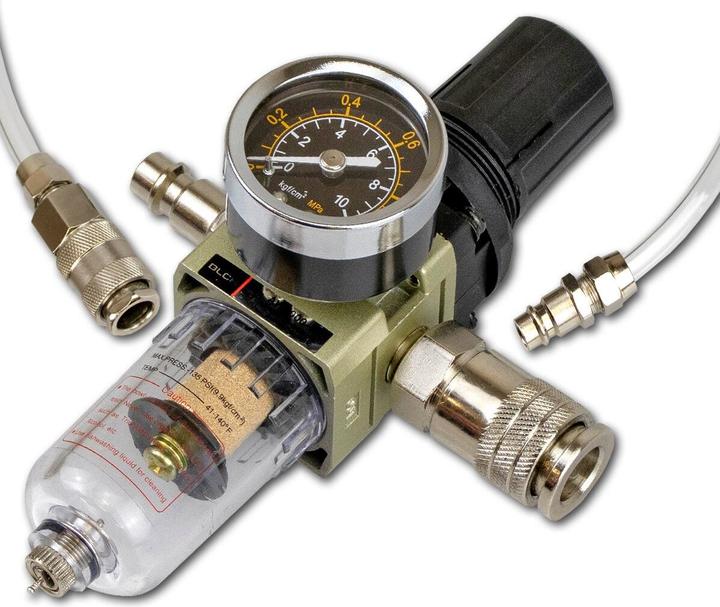

1 x Water separator with pressure gauge and snap-on quick-release couplings from the device to the water separator, including 6-piece connection set

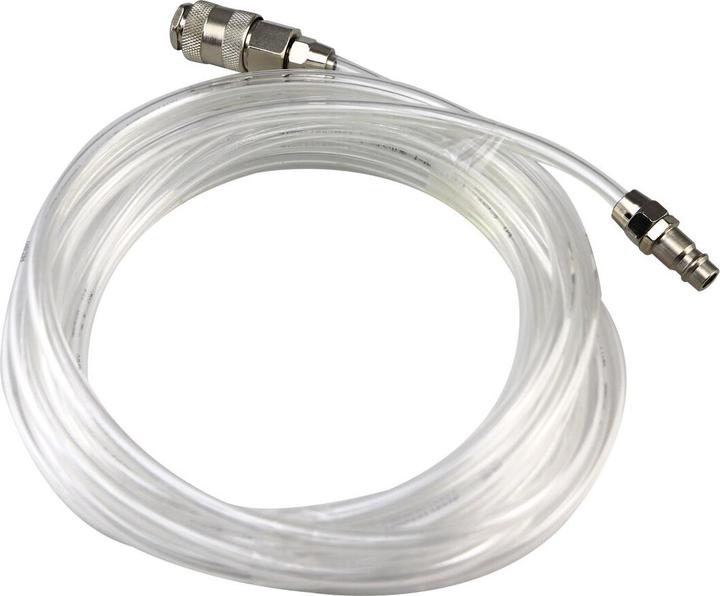

1 x Air connection hose with snap-on quick coupling, 5 metres
1 x Protective cover
1 x Teflon tape
1 x STAHLWERK original 30-piece wear parts set for plasma cutting torch P-60
1 x STAHLWERK fully automatic welding helmet ST-900X, black matte.
