Properties

Plasma: conductive metals e.g. standard steel, copper, stainless steel, brass, aluminium, titanium can be cut without problems.

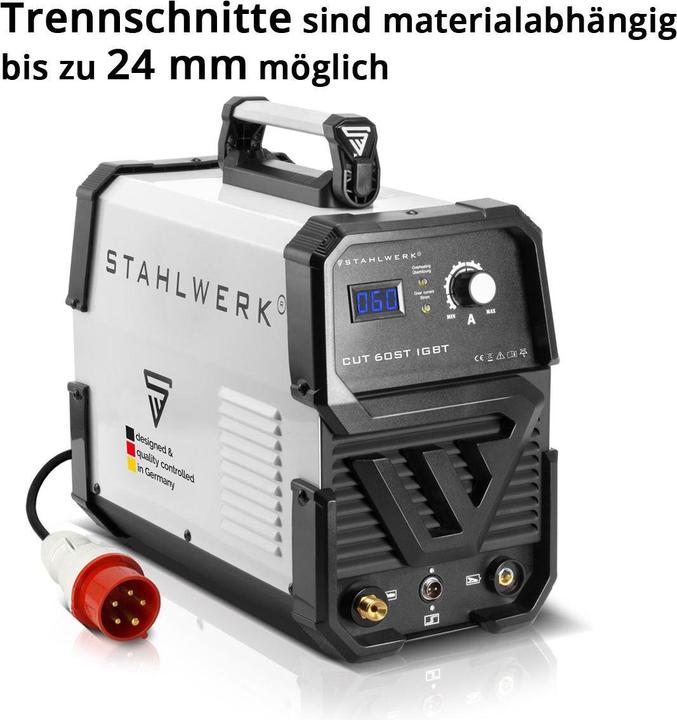

Cutting capacity up to 24 mm (depending on material): mild steel ST37 up to 20 mm, V2A or V4A up to 16 mm, - aluminium up to 13 mm
CUT contact: smooth-running HF ignition, one stroke is enough.
IGBT technology Advantages: powerful, good forward behaviour, high reverse voltage and robustness.

Technical Data

Output current: 20-60 A
Protection class: IP21S
Mains voltage: 400 V AC (+- 15%) / 3 Ph
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 11.4 A
Maximum effective mains current (I1eff): 3,6 A
Weight: 11.1 kg

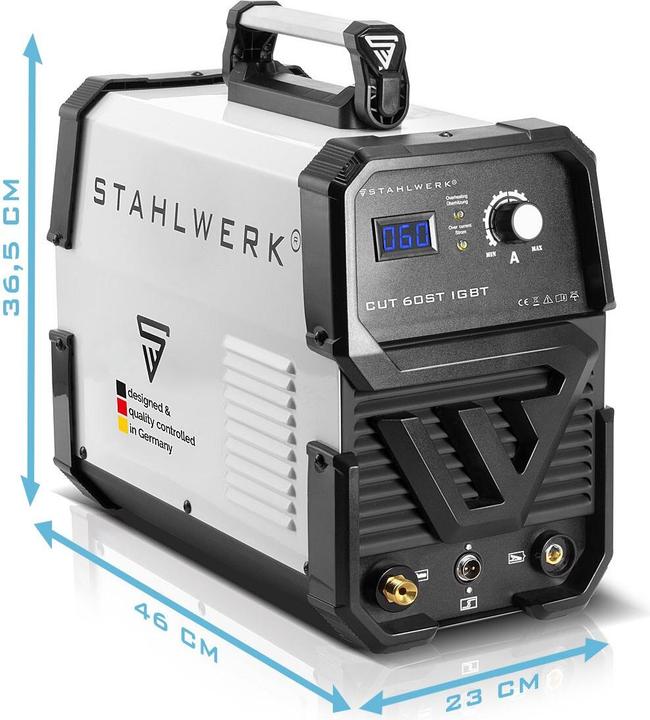

Dimensions L x W x H (mm): 460 x 230 x 365
Mains connection: CEE16 plug
Air pressure: 4 - 6 bar
Air flow: min. 140 L / min

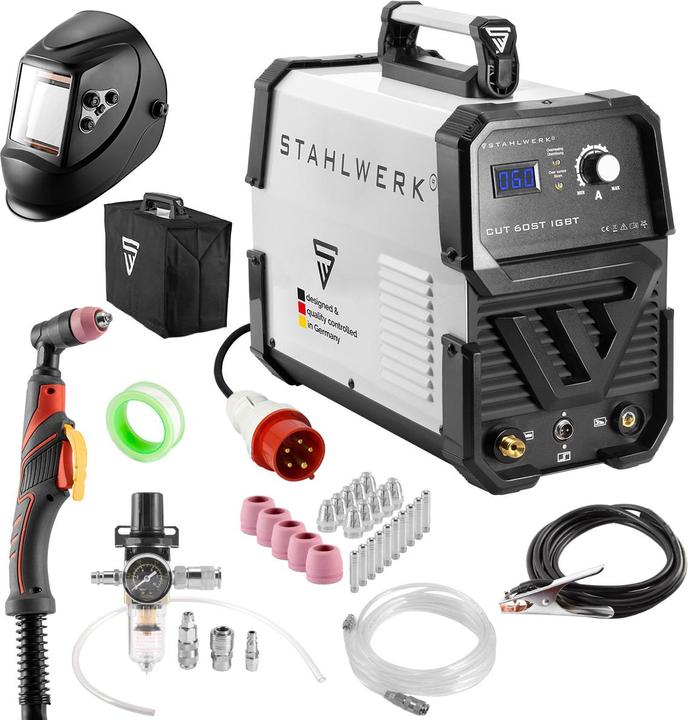

Scope of delivery

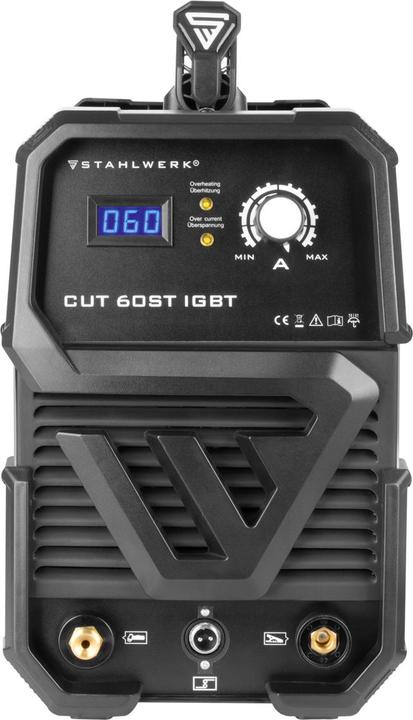

1 x Stahlwerk plasma cutter CUT 60 ST
1 x professional plasma hose package AG-60/SG-55 3 metres
1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

1 x earth cable 3 metres

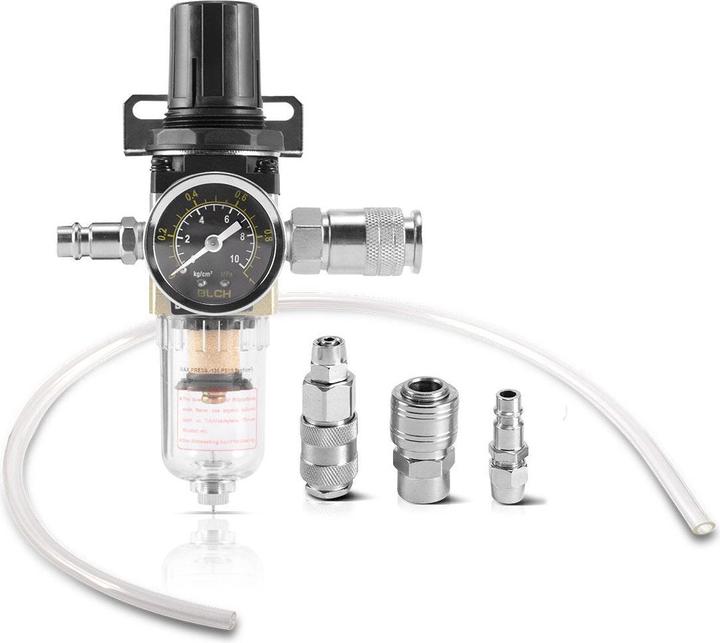

1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, incl. 6-piece connection set
1 x Air connection hose with Snap-on quick-release coupling 5 m
1 x Teflon tape
1 x protective cover

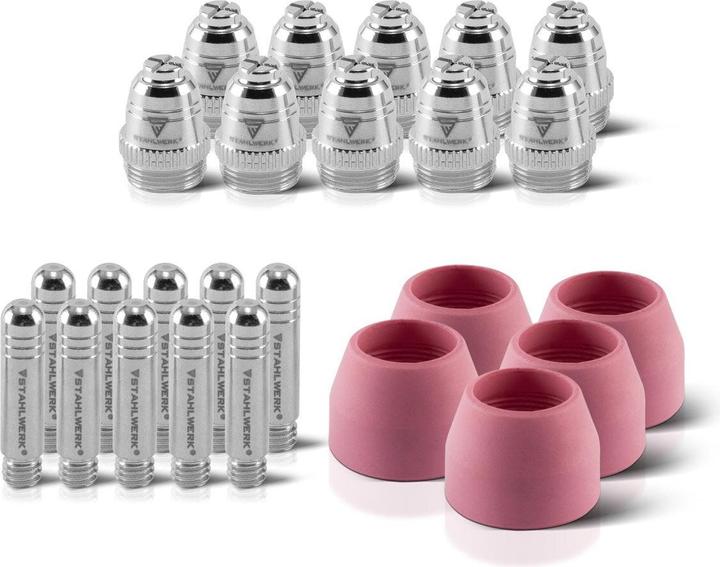

1 x Original wear parts set 25 pieces for plasma cutting torch AG-60 / SG-55
1 x WORKER 3-in-1 automatic welding helmet Welding shield
