Properties

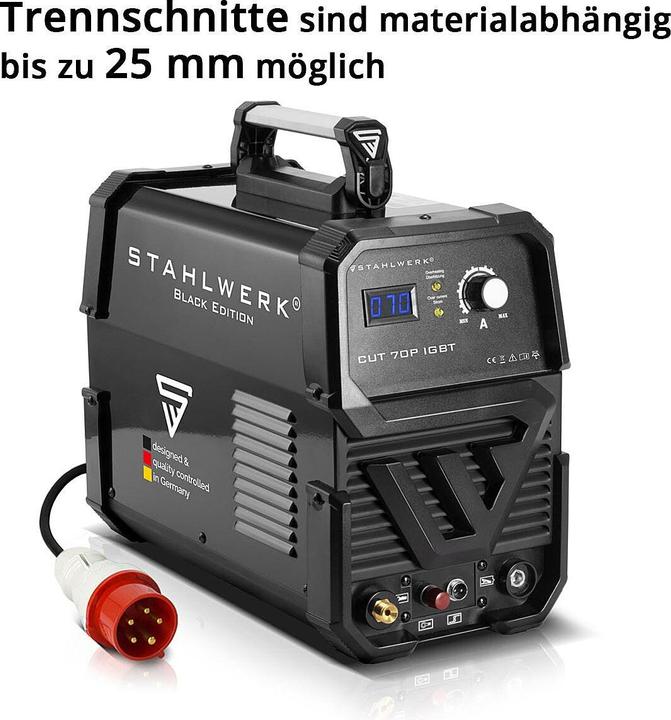

Cutting thickness - Depending on the material, cuts of up to 25 mm are possible. Mild steel ST37 up to 25 mm, V2A or V4A up to 18 mm, aluminium up to 16 mm.

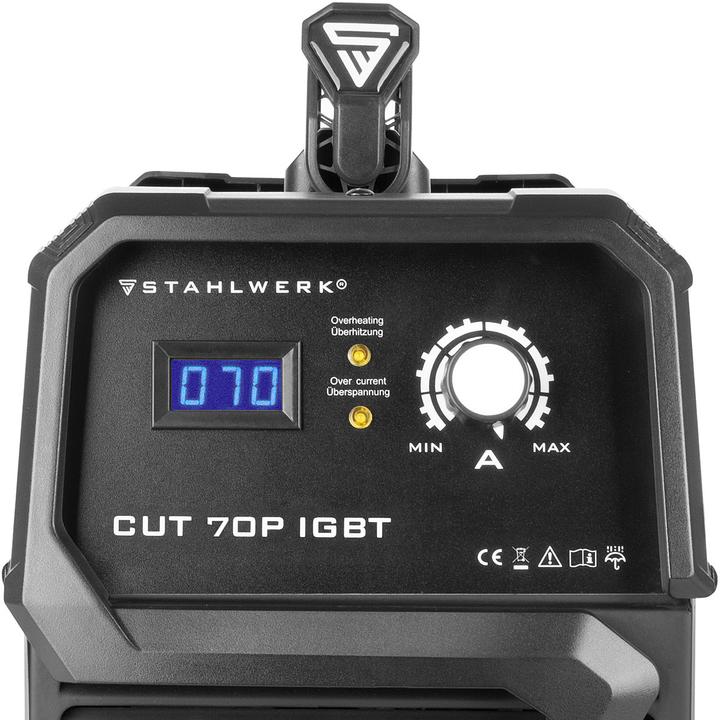

Cutting current - Stepless adjustment from 20 to 70 A.
Air follow-up - After the cutting process is complete, air flows automatically to cool the torch and minimise wear on the nozzle and electrode.
IGBT technology - The latest and most modern transistor technology enables high performance welding! No transformer, no MOSFET, state-of-the-art IGBT!

Technical data

Output current: 20-70 A
Protection class: IP21S

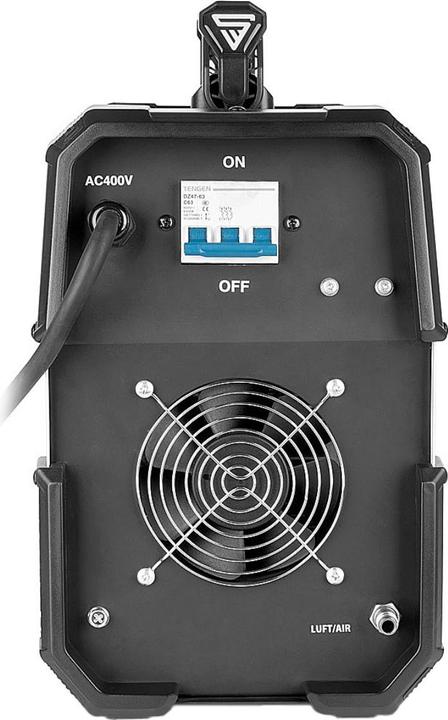

Mains voltage: 400 V AC (+-15%) / 3 Ph
Mains frequency: 50/60 Hz
Maximum mains current (I1max): 13.8 A
Maximum effective mains current (I1eff): 5,3 A
Weight: 11.4 kg

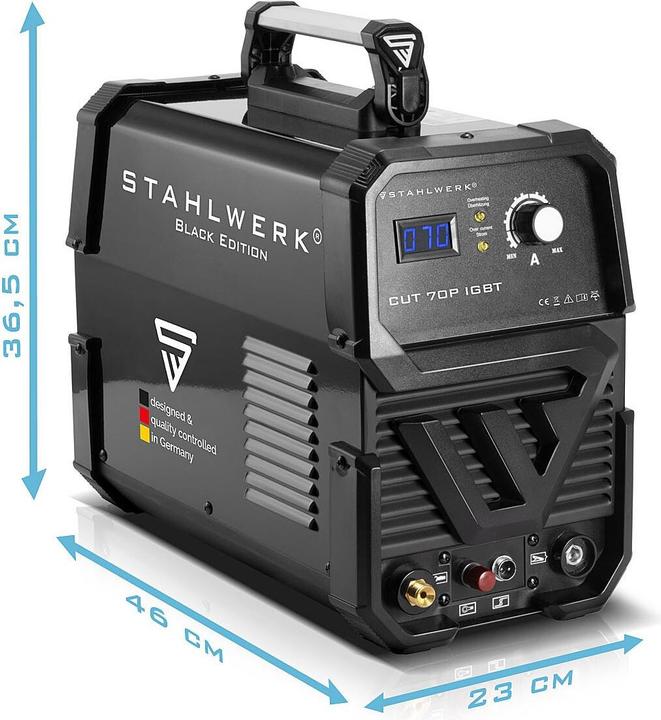

Dimensions L x W x H (mm): 460 x 230 x 365

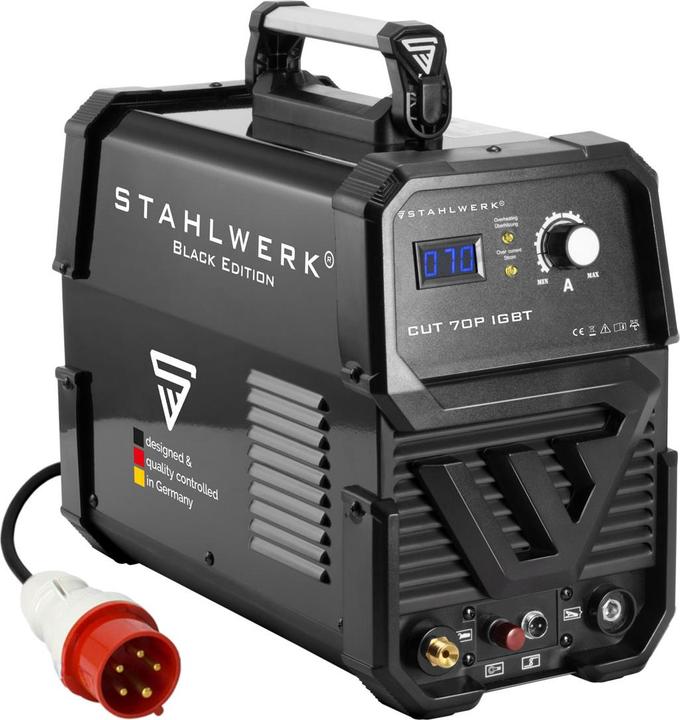

Mains connection: CEE16 plug
Air pressure: 4 - 6 bar
Air flow: min. 140 L / min
Standards: IEC 60974-1; EN 60974-10 (Class A)

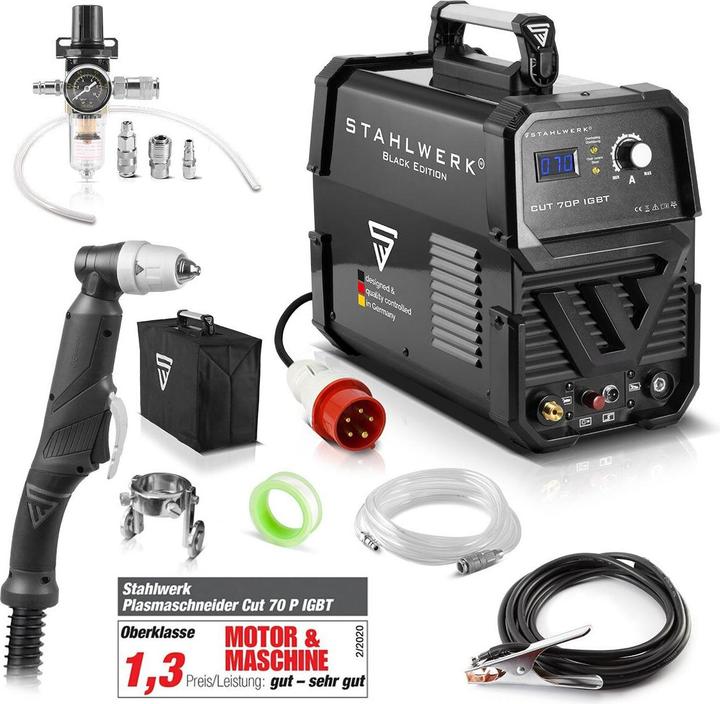

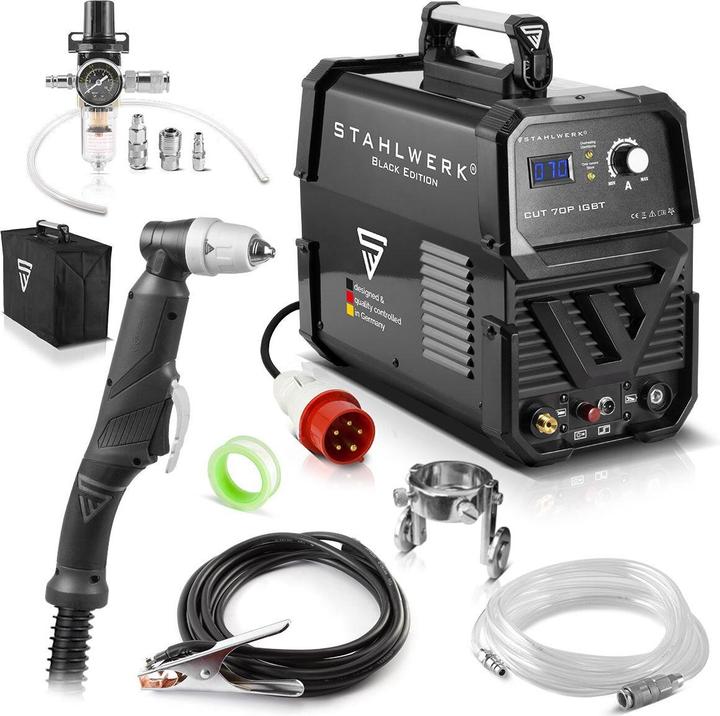

Scope of delivery

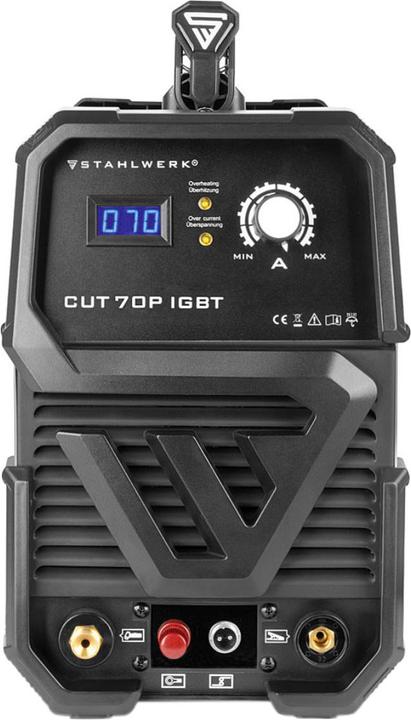

1 x The CUT 70 P steelwork plasma cutter
1 x Professional plasma hose package P-80, 3 metres

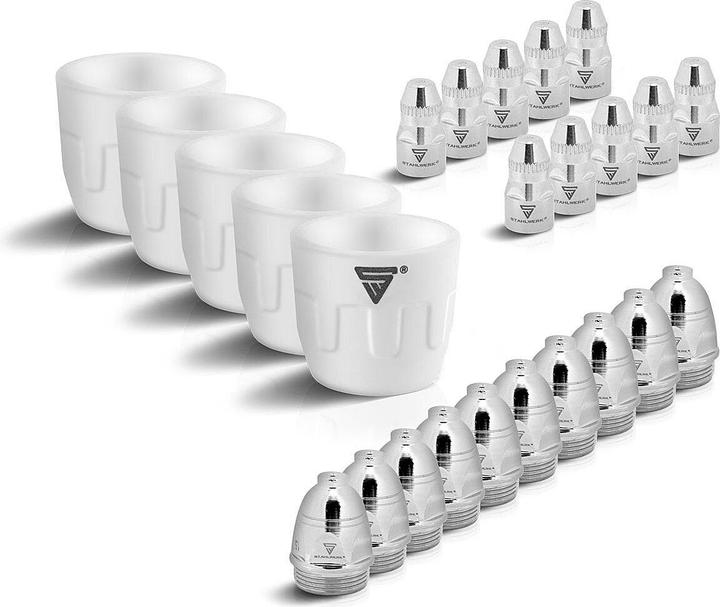

1 x 3-piece plasma accessory set (this is already pre-assembled on the plasma torch):

1 x plasma nozzle
1 x plasma electrode
1 x ceramic cap

1 x earth cable 3 metres
1 x spacer with guide carriage
1 x water separator with pressure gauge and snap-on quick-release couplings
1 x Connecting hose with snap-on quick-release couplings from the appliance to the water separator, incl. 6-piece connection set
1 x Air connection hose with Snap-on quick-release coupling 5m
1 x installation spanner
1 x Teflon tape
1 x protective cover
