Steelworks Plasma torch AG-60 / SG-55

Properties

The gas flow rate can be up to 80-120 litres/min.
At a working pressure of 3-4.5 bar, the burner can be loaded with up to 70 amps.
Highly flexible hose package.
High-quality and durable torches.
Optimum handling in all positions.
Ergonomically shaped torch handle.

This hose set is suitable for the following Stahlwerk brand welding appliances
1. AC/DC combination units:

TIG AC/DC 200 pulse plasma / S series.
AC/DC WIG 200 CUT ST IGBT

2. DC combination units:

CT-520 Plasma / S-Series.
CT-520 Pulse Plasma / S-Series.
CT-535 Plasma / S-Series
CT-550 ST IGB

3. plasma cutter:

CUT 40 / ST series
CUT 50 / S-series / ST-series.
CUT 55 / S-series.
CUT 60 / ST series
CUT 70 / S series (without pilot ignition).

Our plasma torch is also suitable for AG-60 / SG-55 compatible plasma cutters from other manufacturers - please pay attention to the connection type of your device !!!

Technical data:

Hose package length: 5 metres.
Air intake: 80 / 120 litres/min.
Switching contact: Push-button, 2-pole.
Loadable up to 70 amps.

Included in the scope of delivery:

1 x Plasma hose package AG-60 / SG-55 5 metres.

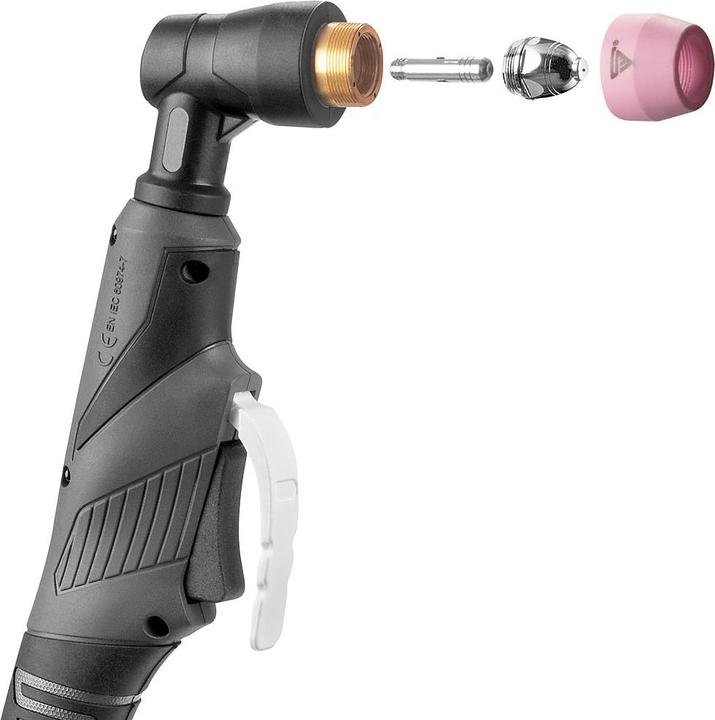

3-piece plasma accessory set: 1 x nozzle, 1 x electrode for plasma, 1 x ceramic cap (already pre-assembled in the plasma torch).
