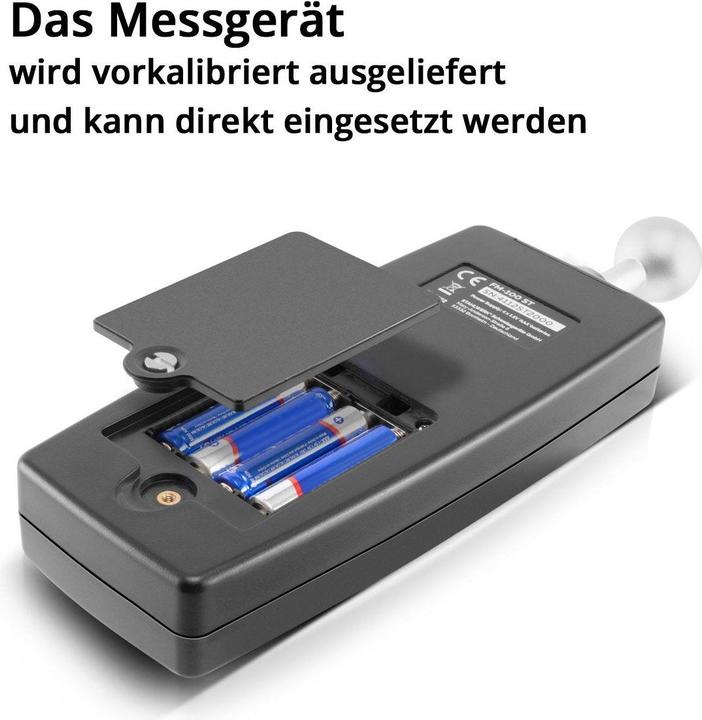

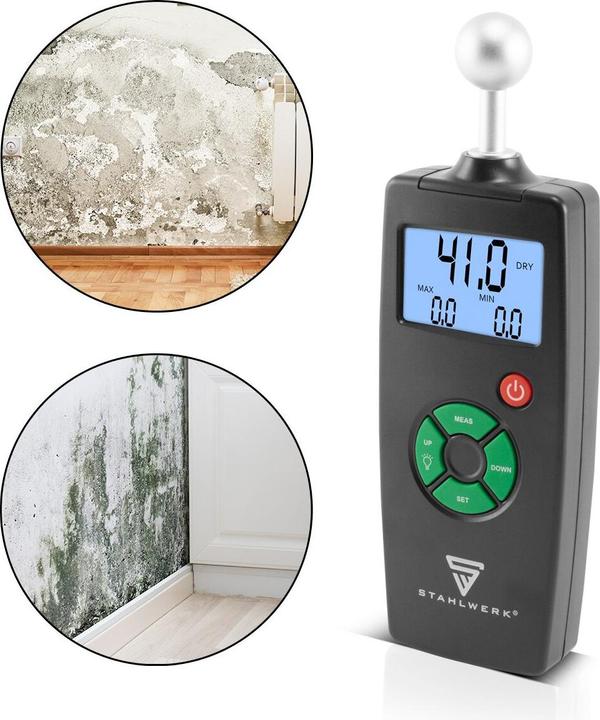

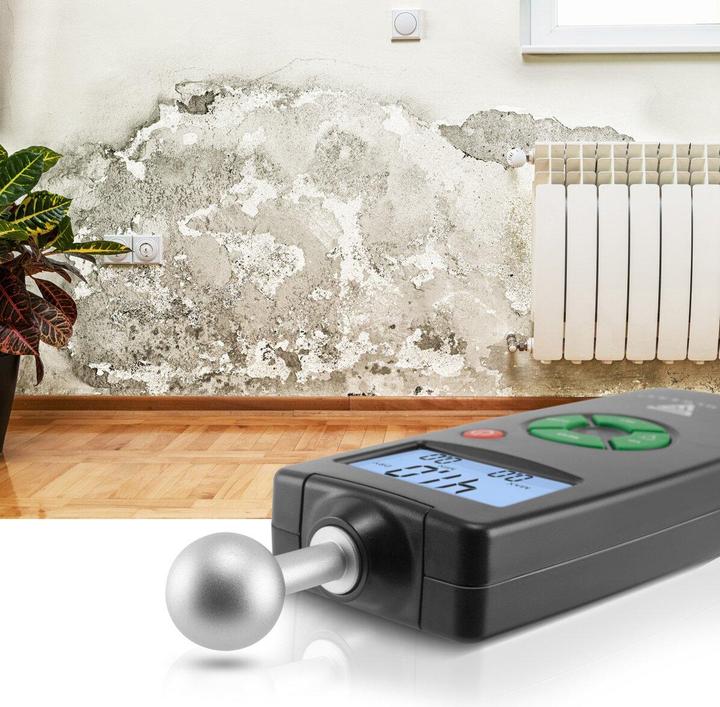

With the FM-100 ST steelwork, you can reliably detect moisture in walls or in building materials such as wood and cement. The material-friendly, capacitive measuring method is made possible by high-frequency sensors built into the ball head. To measure the moisture, the ball head is simply held at a 90 degree angle to the surface of the material to be tested. Pre-set audible alarms warn the user if the moisture readings exceed the programmed reference values. The measuring device is supplied pre-calibrated and can be used immediately.

Features

Precise measuring device for detecting moisture in walls, wood or other building materials such as plaster and cement.

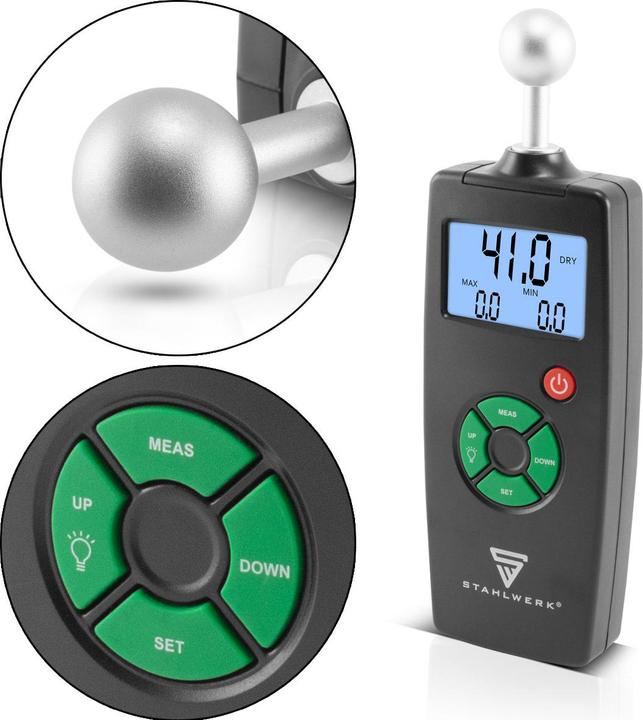

Non-invasive measurements that are gentle on materials thanks to the ball head with built-in high-frequency sensors. Surfaces are not damaged during measurement.
Enables reliable measurements to depths of up to 40 mm in masonry, wood, walls, plaster or render.
A clear LDC display shows min. and max. -values, the short message Dry, Risk and Wet is displayed to match the set building material. This makes the moisture analyser very user-friendly.
The moisture analyser employs an acoustic warning signal that sounds if the moisture level is too high.

Technical data

Measuring range: 0 - 100 %
Measuring depth: 20 - 40 mm
Optimum operating temperature: 0 - 45°
Display type: LCD
Dimensions (L x W x H): 235 x 73 x 30 mm
Weight: 280 g

Scope of delivery

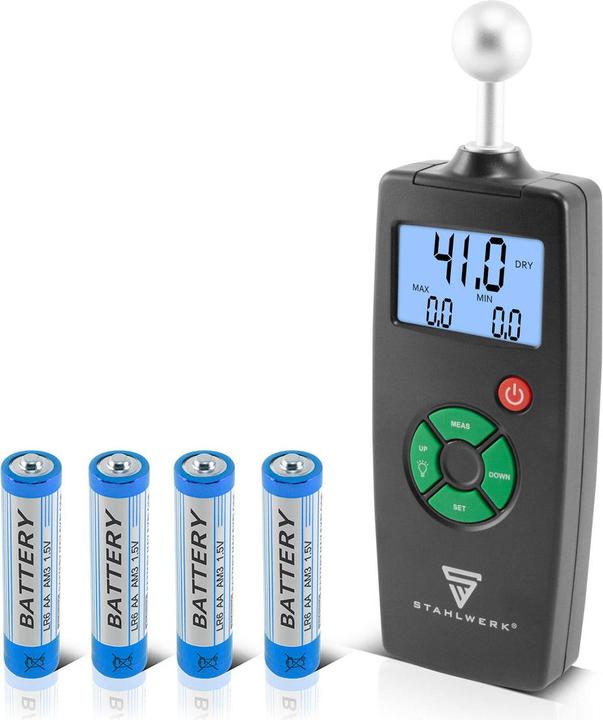

1 x Stahlwerk FM-100 ST moisture analyser
